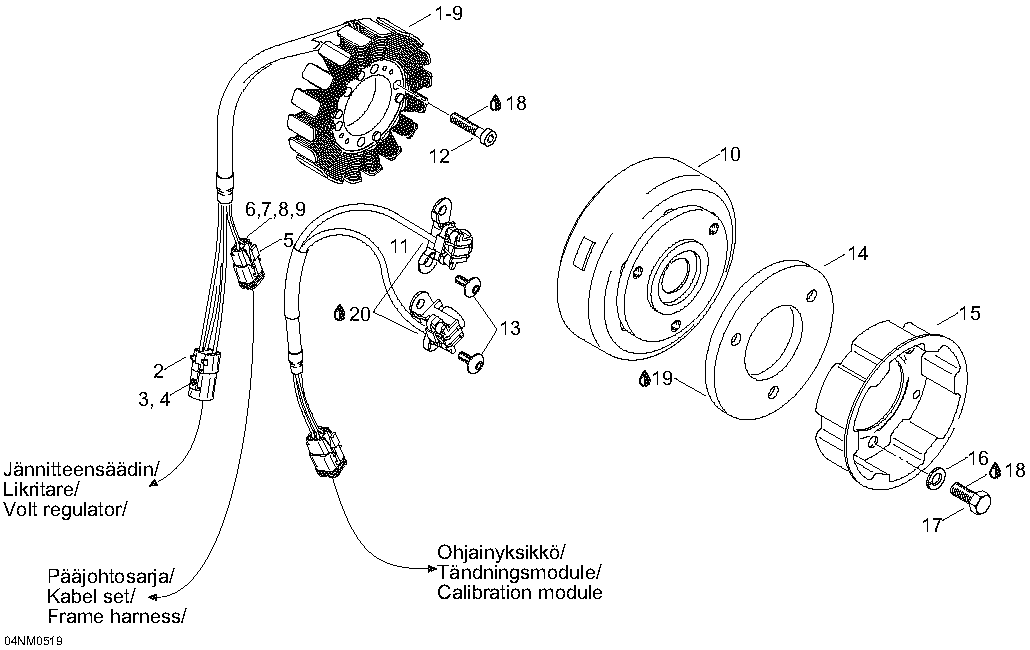

03- Magneto для BRP Lynx Enduro Sport - 2005
-
№АртикулНазвание
-
1420888313 Stator assy. Includes 1 to 9Stator assy. Includes 1 to 9
-
2278001473 Female terminal housingFemale terminal housing
-
3515175568 Female terminalFemale terminal
-
4278001474 Female lockFemale lock
-
5515175760 Female terminal housingFemale terminal housing
-
6278000632 Female terminalFemale terminal
-
7278001661 Female terminalFemale terminal
-
8515175675 Female lockFemale lock
-
9293000052 PlugPlug
-
10420888324 Magneto flywheelMagneto flywheel
-
11420966803 Pick up assyPick up assy
-
12420840880 Allen screw M6 x 30Allen screw M6 x 30
-
13420640321 Taptite screw M5 x 16Taptite screw M5 x 16
-
14420866756 Fly wheelFly wheel
-
15420852532 Starter cupStarter cup
-
15420852590 Starter cupStarter cup
-
16420827405 Lock washerLock washer
-
17420940591 Screw M8 x 20Screw M8 x 20
-
17420841520 Socket head screw M8 x 12Socket head screw M8 x 12
-
18293800060 Loctite 243, 10mlLoctite 243, 10ml
-
19413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
20293530011 PU-glue, sikaflex 255PU-glue, sikaflex 255
