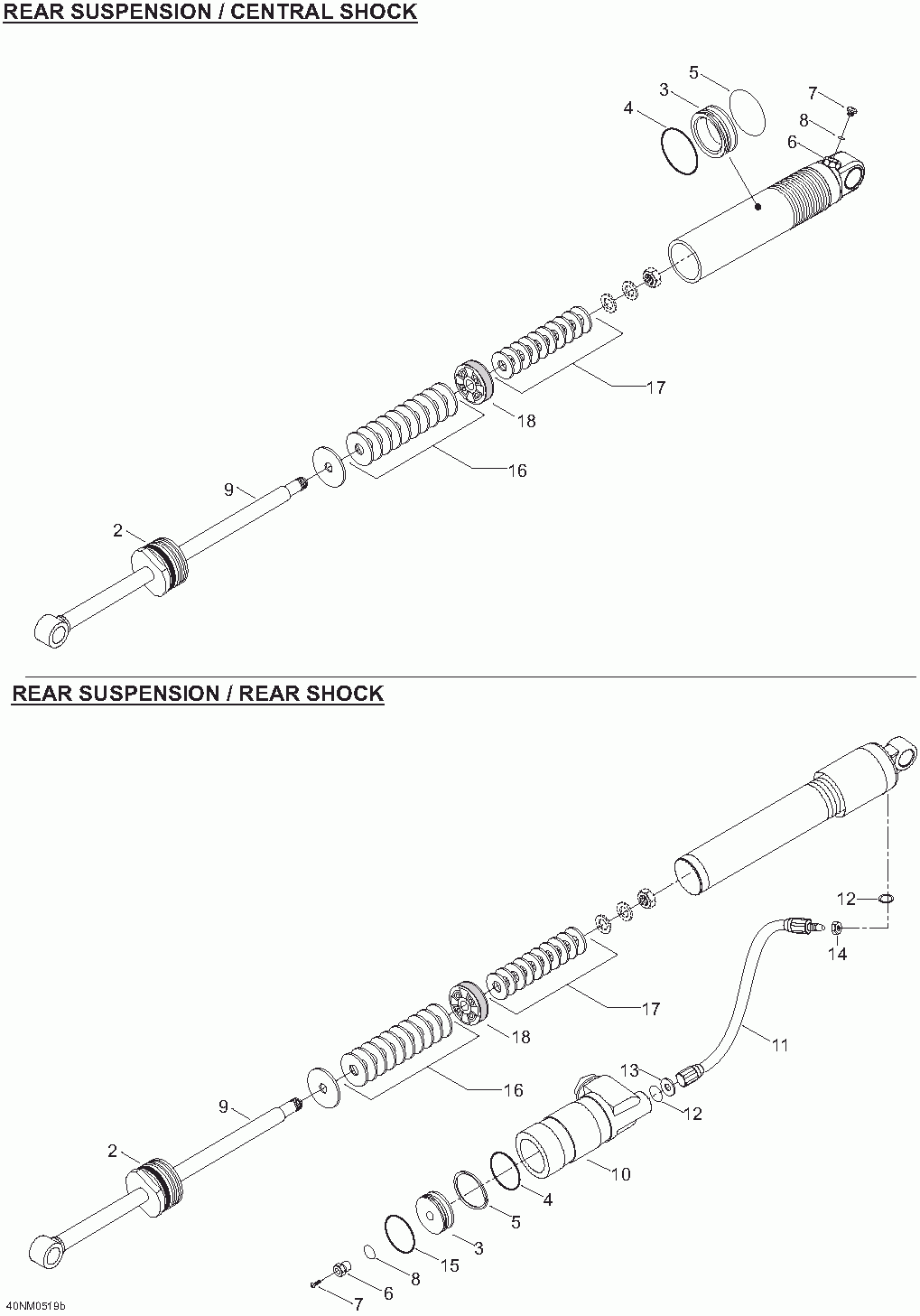

07- Take Apart Shock rear для BRP Lynx Enduro Sport - 2005
-
№АртикулНазвание
-
123212 Shock, front arm. Includes 1 to 9, 16, 17, 18Shock, front arm. Includes 1 to 9, 16, 17, 18
-
2230060 Seal carrier assySeal carrier assy
-
3503189008 Floating pistonFloating piston
-
4503189007 O-ringO-ring
-
5503189006 Piston ringPiston ring
-
6505070398 Air valveAir valve
-
7505070399 ScrewScrew
-
8505070400 O-ringO-ring
-
9230046 Rod assyRod assy
-
123194 Shock, rear arm. Includes 1 to 18Shock, rear arm. Includes 1 to 18
-
2230060 Seal carrier assySeal carrier assy
-
3415093812 Floating pistonFloating piston
-
4415093807 O-ringO-ring
-
5415093806 Piston ringPiston ring
-
6505070398 Air valveAir valve
-
7505070399 ScrewScrew
-
8505070400 O-ringO-ring
-
9230047 Rod assyRod assy
-
10230114 ReservoirReservoir
-
11230111 HoseHose
-
16230029 Leaf valve 20x0.114Leaf valve 20x0.114
-
16230030 Leaf valve 20x0.152Leaf valve 20x0.152
-
16230031 Leaf valve 20x0.203Leaf valve 20x0.203
-
16230032 Leaf valve 20x0.254Leaf valve 20x0.254
-
16503189011 Leaf valve 22x0.114Leaf valve 22x0.114
-
16503189012 Leaf valve 22x0.152Leaf valve 22x0.152
-
16503189013 Leaf valve 22x0.203Leaf valve 22x0.203
-
16503189014 Leaf valve 22x0.254Leaf valve 22x0.254
-
16503189016 Leaf valve 24x0.114Leaf valve 24x0.114
-
16503189017 Leaf valve 24x0.152Leaf valve 24x0.152
-
16503189018 Leaf valve 24x0.203Leaf valve 24x0.203
-
16503189019 Leaf valve 24x0.254Leaf valve 24x0.254
-
16503189021 Leaf valve 26x0.114Leaf valve 26x0.114
-
16503189022 Leaf valve 26x0.152Leaf valve 26x0.152
-
16503189023 Leaf valve 26x0.203Leaf valve 26x0.203
-
16503189024 Leaf valve 26x0.254Leaf valve 26x0.254
-
16503189026 Leaf valve 28x0.114Leaf valve 28x0.114
-
16503189027 Leaf valve 28x0.152Leaf valve 28x0.152
-
16503189028 Leaf valve 28x0.203Leaf valve 28x0.203
-
16503189029 Leaf valve 28x0.254Leaf valve 28x0.254
-
16503189031 Leaf valve 30x0.114Leaf valve 30x0.114
-
16503189032 Leaf valve 30x0.152Leaf valve 30x0.152
-
16503189033 Leaf valve 30x0.203Leaf valve 30x0.203
-
16503189034 Leaf valve 30x0.254Leaf valve 30x0.254
-
16230082 Leaf valve 32x0.114Leaf valve 32x0.114
-
16230033 Leaf valve 34x0.114Leaf valve 34x0.114
-
16230034 Leaf valve 34x0.152Leaf valve 34x0.152
-
16230035 Leaf valve 34x0.203Leaf valve 34x0.203
-
16230036 Leaf valve 34x0.254Leaf valve 34x0.254
-
16230037 Leaf valve 36x0.114Leaf valve 36x0.114
-
16503189036 Leaf valve 36x0.152Leaf valve 36x0.152
-
16503189037 Leaf valve 36x0.203Leaf valve 36x0.203
-
16503189038 Leaf valve 36x0.254Leaf valve 36x0.254
-
16230040 Leaf valve 38x0.152Leaf valve 38x0.152
-
16230041 Leaf valve 38x0.203Leaf valve 38x0.203
-
16230042 Leaf valve 38x0.254Leaf valve 38x0.254
-
16503189039 Leaf valve 40x0.114Leaf valve 40x0.114
-
16503189040 Leaf valve 40x0.203Leaf valve 40x0.203
-
16503189041 Leaf valve 40x0.254Leaf valve 40x0.254
-
17230029 Leaf valve 20x0.114Leaf valve 20x0.114
-
17230030 Leaf valve 20x0.152Leaf valve 20x0.152
-
17230031 Leaf valve 20x0.203Leaf valve 20x0.203
-
17230032 Leaf valve 20x0.254Leaf valve 20x0.254
-
17503189011 Leaf valve 22x0.114Leaf valve 22x0.114
-
17503189012 Leaf valve 22x0.152Leaf valve 22x0.152
-
17503189013 Leaf valve 22x0.203Leaf valve 22x0.203
-
17503189014 Leaf valve 22x0.254Leaf valve 22x0.254
-
17503189016 Leaf valve 24x0.114Leaf valve 24x0.114
-
17503189017 Leaf valve 24x0.152Leaf valve 24x0.152
-
17503189018 Leaf valve 24x0.203Leaf valve 24x0.203
-
17503189019 Leaf valve 24x0.254Leaf valve 24x0.254
-
17503189020 Leaf valve 24x0.305Leaf valve 24x0.305
-
17503189021 Leaf valve 26x0.114Leaf valve 26x0.114
-
17503189022 Leaf valve 26x0.152Leaf valve 26x0.152
-
17503189023 Leaf valve 26x0.203Leaf valve 26x0.203
-
17503189024 Leaf valve 26x0.254Leaf valve 26x0.254
-
17503189026 Leaf valve 28x0.114Leaf valve 28x0.114
-
17503189027 Leaf valve 28x0.152Leaf valve 28x0.152
-
17503189028 Leaf valve 28x0.203Leaf valve 28x0.203
-
17503189029 Leaf valve 28x0.254Leaf valve 28x0.254
-
17503189031 Leaf valve 30x0.114Leaf valve 30x0.114
-
17503189032 Leaf valve 30x0.152Leaf valve 30x0.152
-
17503189033 Leaf valve 30x0.203Leaf valve 30x0.203
-
17503189034 Leaf valve 30x0.254Leaf valve 30x0.254
-
17230082 Leaf valve 32x0.114Leaf valve 32x0.114
-
17230033 Leaf valve 34x0.114Leaf valve 34x0.114
-
17230034 Leaf valve 34x0.152Leaf valve 34x0.152
-
17230035 Leaf valve 34x0.203Leaf valve 34x0.203
-
17230036 Leaf valve 34x0.254Leaf valve 34x0.254
-
17230037 Leaf valve 36x0.114Leaf valve 36x0.114
-
17503189036 Leaf valve 36x0.152Leaf valve 36x0.152
-
17503189037 Leaf valve 36x0.203Leaf valve 36x0.203
-
17503189038 Leaf valve 36x0.254Leaf valve 36x0.254
-
17230040 Leaf valve 38x0.152Leaf valve 38x0.152
-
17230041 Leaf valve 38x0.203Leaf valve 38x0.203
-
17230042 Leaf valve 38x0.254Leaf valve 38x0.254
-
17503189039 Leaf valve 40x0.114Leaf valve 40x0.114
-
17503189040 Leaf valve 40x0.203Leaf valve 40x0.203
-
17503189041 Leaf valve 40x0.254Leaf valve 40x0.254
-
18230044 Piston 1.2 mmPiston 1.2 mm
-
18230038 Piston 1.7 mmPiston 1.7 mm
-
18230039 Piston 2.0 mmPiston 2.0 mm
-
18230110 Piston 2.2 mmPiston 2.2 mm
-
18230043 PistonPiston
