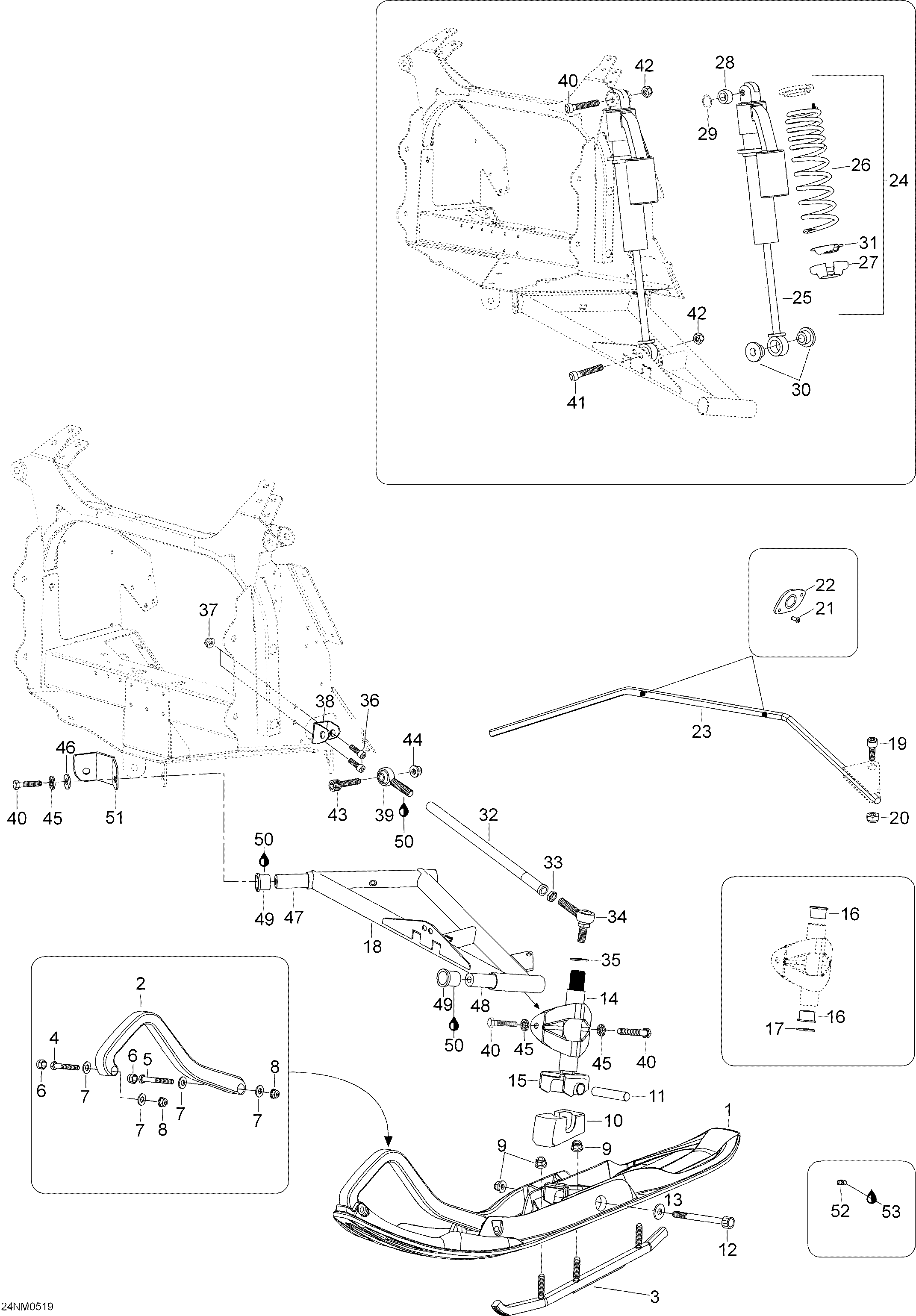

07- Front Suspension And Ski для BRP Lynx Enduro Sport - 2005
-
№АртикулНазвание
-
1605151185 CTRL-SkiCTRL-Ski
-
2505071059 Plastic handle, redPlastic handle, red
-
3605351659 RunnerRunner
-
440009 Hex. screw M8 x 50Hex. screw M8 x 50
-
540264 Hex. screw M8 x 90Hex. screw M8 x 90
-
628056 CapCap
-
720004 Washer 8mmWasher 8mm
-
833011 Elastic stop nut M8Elastic stop nut M8
-
933074 Elastic flanged nut M10Elastic flanged nut M10
-
10570070400 Stopper-skiStopper-ski
-
11506133300 SpacerSpacer
-
1240391 Socket head screw M10 x 130Socket head screw M10 x 130
-
1320105 Washer 10mmWasher 10mm
-
14605351658 SkilegtubeSkilegtube
-
155245502 Ski legSki leg
-
16505070003 CushionCushion
-
17505070004 WasherWasher
-
18605252085 L.H. Lower armL.H. Lower arm
-
18605252086 R.H. Lower armR.H. Lower arm
-
1940828 Socket head screw M8 x 35Socket head screw M8 x 35
-
2033011 Elastic stop nut M8Elastic stop nut M8
-
2136103 RivetRivet
-
22605452342 BushingBushing
-
23605252072 StabilisatorStabilisator
-
24605349954 R.H. Shock ass'y, ski. Includes 24 to 28R.H. Shock ass'y, ski. Includes 24 to 28
-
24605349953 L.H. Shock ass'y, ski. Includes 24 to 28L.H. Shock ass'y, ski. Includes 24 to 28
-
2523196 R.H.ShockR.H.Shock
-
2523195 L.H.ShockL.H.Shock
-
2625072 SpringSpring
-
27503140600 Spring StopperSpring Stopper
-
28414562900 Joint ballJoint ball
-
29371910600 CirclipCirclip
-
30506120200 SleeveSleeve
-
31503141600 CapCap
-
32605352656 Upper armUpper arm
-
3333036 Nut M12Nut M12
-
3431092 Ball jointBall joint
-
3520074 Lock washer M12Lock washer M12
-
3640344 Socket head screw M8 x 25Socket head screw M8 x 25
-
3733201 Elastic flanged nut M8Elastic flanged nut M8
-
38605452346 BracketBracket
-
3931095 Ball jointBall joint
-
4040014 Hex. screw M10 x 40Hex. screw M10 x 40
-
4140852 Socket head screw M10 x 55Socket head screw M10 x 55
-
4233012 Elastic stop nut M10Elastic stop nut M10
-
4340138 Socket head screw M12 x 40Socket head screw M12 x 40
-
4433013 Elastic stop nut M12Elastic stop nut M12
-
4520068 Lock bricka 10mmLock bricka 10mm
-
4620023 Washer 10mmWasher 10mm
-
47605349795 Shaft, lower armShaft, lower arm
-
48605349897 Shaft, lower armShaft, lower arm
-
4931027 CushionCushion
-
50293800060 Liima Loctite 243, 10mlLiima Loctite 243, 10ml
-
51605450208 BracketBracket
-
5234011 Grease fittingGrease fitting
-
53413711500 Synthetic greaseSynthetic grease
