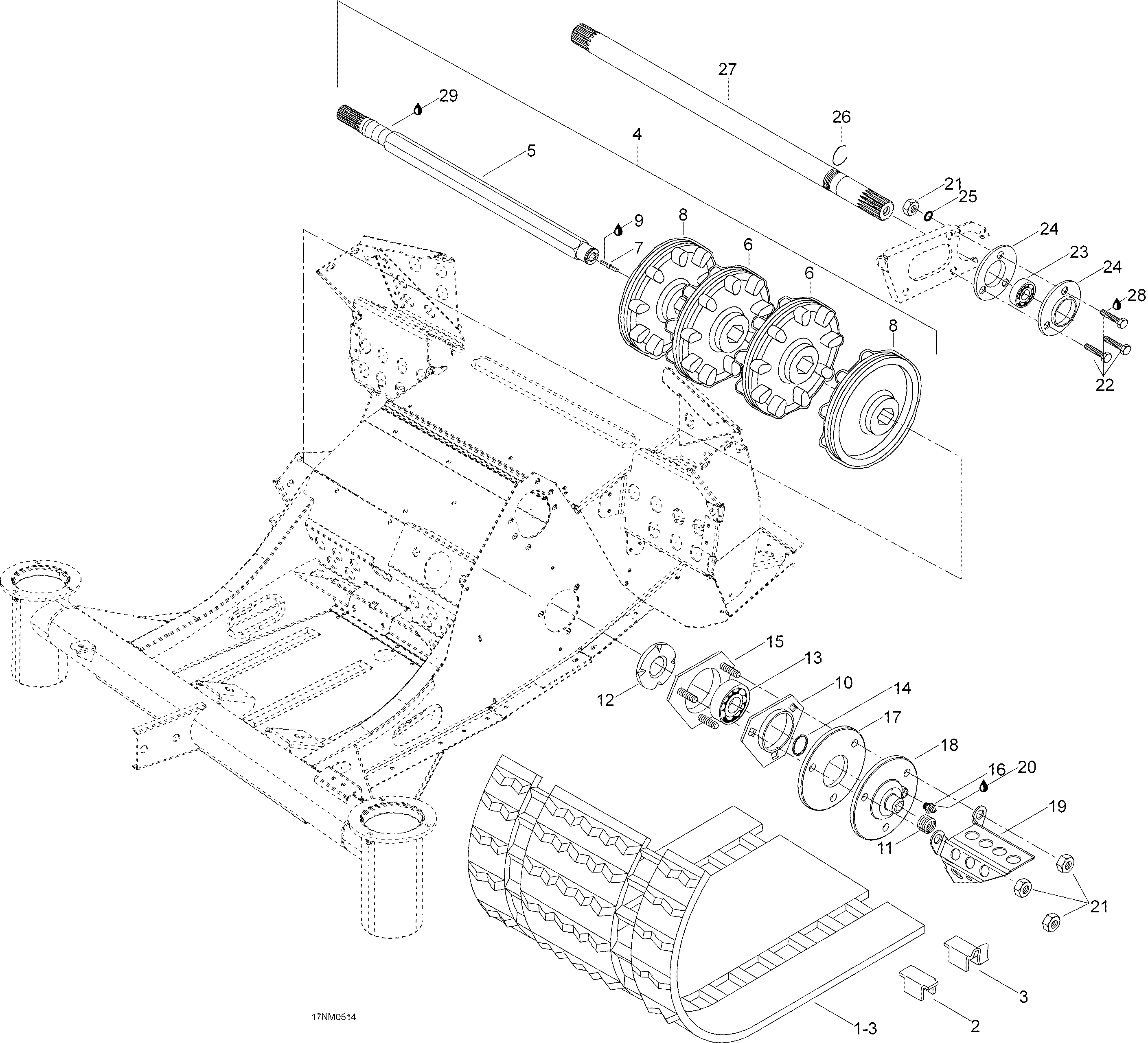

05- Drive System для BRP Lynx Forest Fox EI - 2005
-
№АртикулНазвание
-
113057 track. Includes 1 to 3track. Includes 1 to 3
-
25318329 Flat cleatFlat cleat
-
35318330 Guide cleatGuide cleat
-
4
-
5
-
6539750 SprocketSprocket
-
7542013 Speedo drive insertSpeedo drive insert
-
85342920 SprocketSprocket
-
10501025000 Bearing housingBearing housing
-
115446614 Threated bushingThreated bushing
-
12501017400 CoverCover
-
13504152009 Ball bearingBall bearing
-
1431001 CirclipCirclip
-
15504151860 Bearing housingBearing housing
-
1634011 Grease fittingGrease fitting
-
175446641 PlatePlate
-
18504151836 FlangeFlange
-
19517290100 Cable protectorCable protector
-
20293550033 GreaseGrease
-
2133011 Elastic stop nut M8Elastic stop nut M8
-
2240336 Hex. screw M8 x 20Hex. screw M8 x 20
-
23504152008 Ball bearingBall bearing
-
245346237 Bearing housingBearing housing
-
25414484400 O-ringO-ring
-
26371910000 CirclipCirclip
-
275146138 Counter shaftCounter shaft
-
28293800060 Liima Loctite 243 10mlLiima Loctite 243 10ml
-
29293800023 Loctite 767Loctite 767
