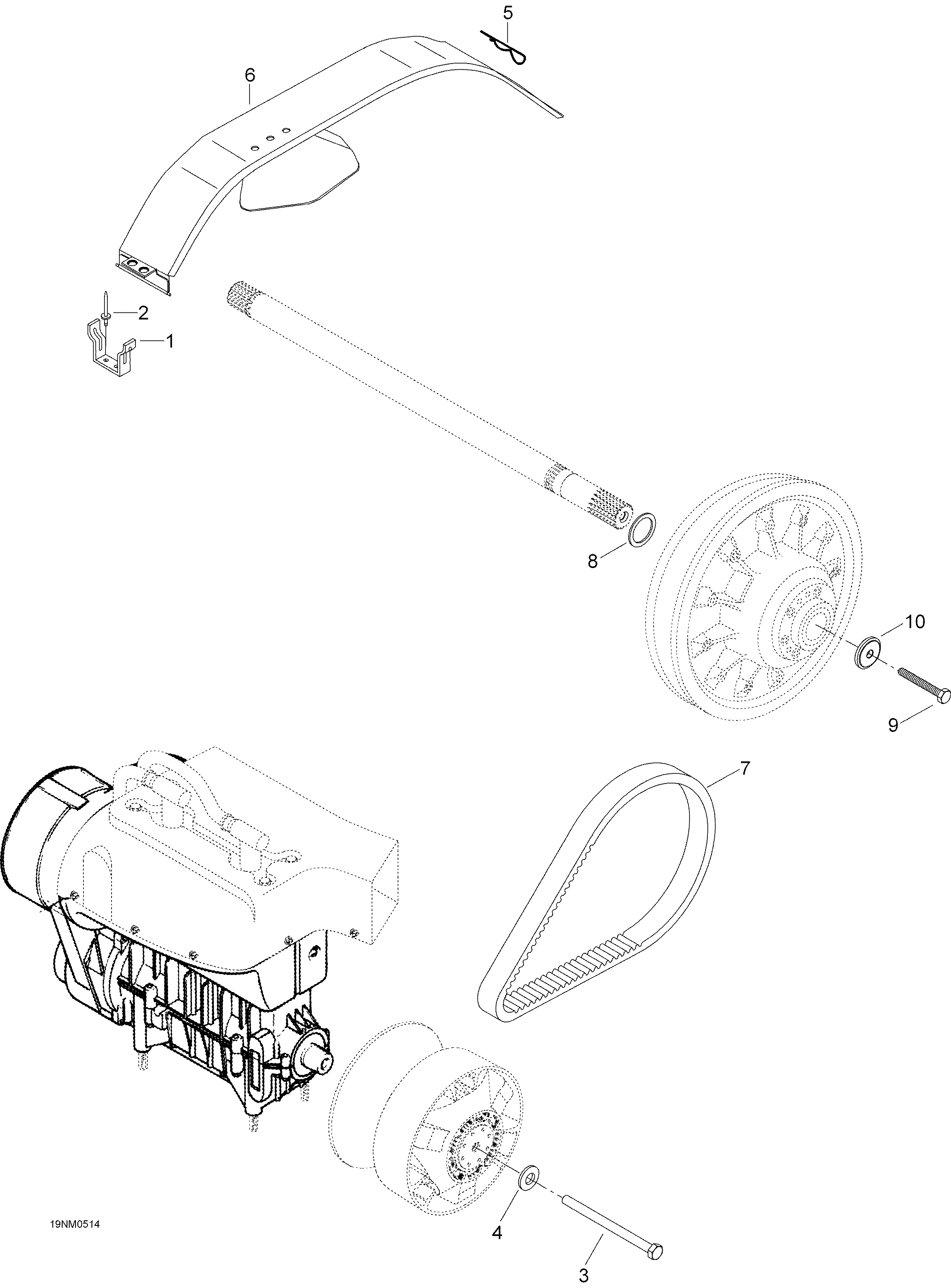

05- Pulley System для BRP Lynx Forest Fox EI - 2005
-
№АртикулНазвание
-
1518202100 BracketBracket
-
236083 RivetRivet
-
3417113800 Drive pulley boltDrive pulley bolt
-
420090 WasherWasher
-
55442726 Hair pinHair pin
-
65145964 Belt quardBelt quard
-
7414633800 Drive beltDrive belt
-
8548001 ShimShim
-
940012 Hex. screw M8 x 80Hex. screw M8 x 80
-
10517302322 WasherWasher
