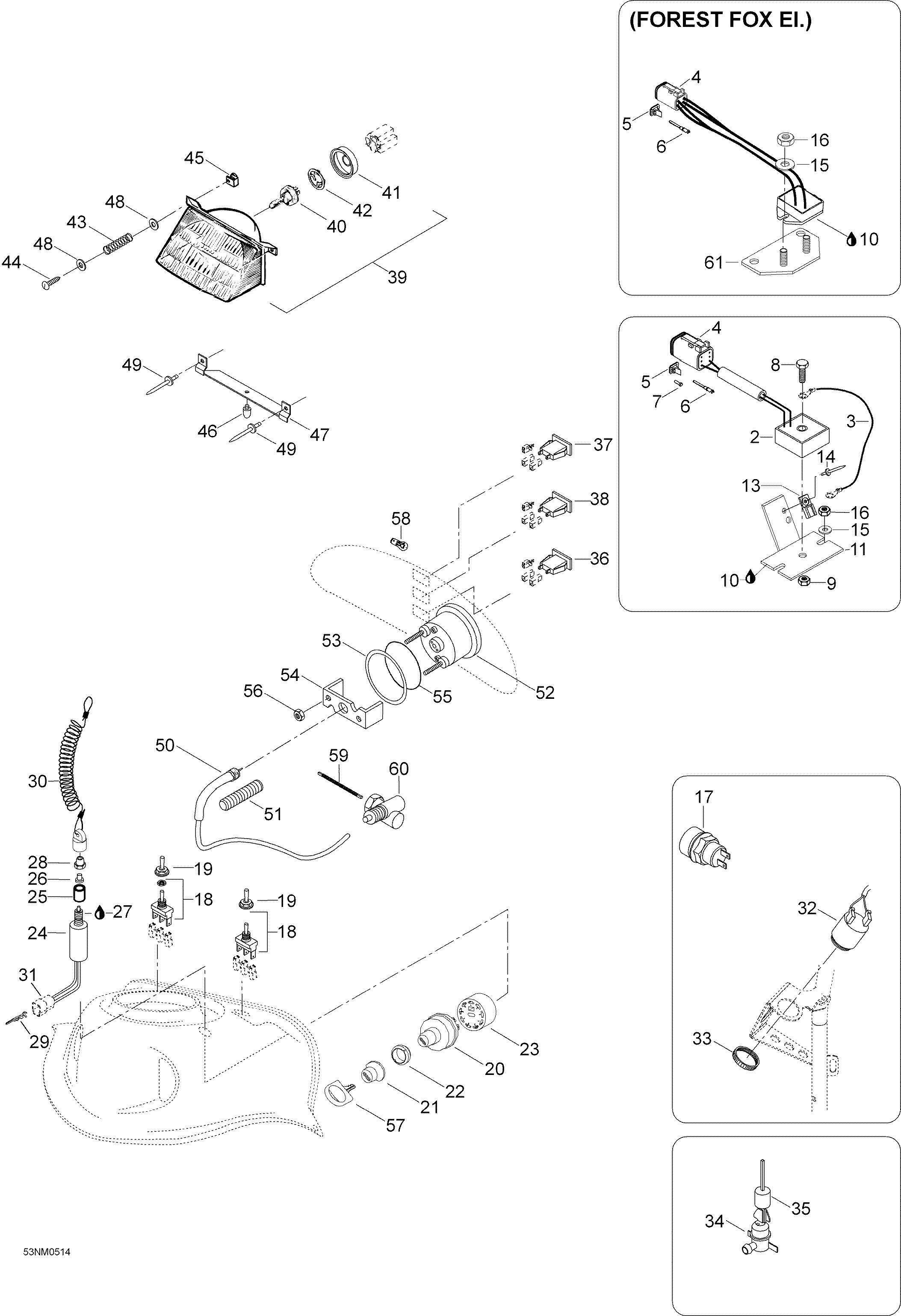

10- Electrical Acessories для BRP Lynx Forest Fox EI - 2005
-
№АртикулНазвание
-
1605350623 Voltage regulator ass'y. Includes 1 to 7, Forest FoxVoltage regulator ass'y. Includes 1 to 7, Forest Fox
-
1515175939 Voltage regulator ass'y. Includes 1 to 4, Forest Fox El.Voltage regulator ass'y. Includes 1 to 4, Forest Fox El.
-
2410110600 Voltage regulator. Forest Fox. Forest FoxVoltage regulator. Forest Fox. Forest Fox
-
35446642 Ground wireGround wire
-
4278001477 Connector housingConnector housing
-
5278001478 WedgeWedge
-
6515175568 ConnectorConnector
-
7293000052 Cap. Forest Fox. Forest FoxCap. Forest Fox. Forest Fox
-
840003 Hex. screw M6 x 35. Forest Fox. Forest FoxHex. screw M6 x 35. Forest Fox. Forest Fox
-
933200 Elastic flanged nut M6Elastic flanged nut M6
-
10413707500 Dielectric greaseDielectric grease
-
11605350731 Cooling plateCooling plate
-
13270000141 ClipClip
-
1436005 RivetRivet
-
1520009 Washer A6,4Washer A6,4
-
1633010 Elastic stop nut M6Elastic stop nut M6
-
17415101200 Reverse knobReverse knob
-
18410107300 SwitchSwitch
-
19515175281 Switch coverSwitch cover
-
2042019 Ignition switchIgnition switch
-
21570013700 Switch bootSwitch boot
-
22410112100 Switch nutSwitch nut
-
23572150700 Ignition switch blockIgnition switch block
-
24515175571 Brake switchBrake switch
-
25605352540 SleeveSleeve
-
26570151100 Plunger capPlunger cap
-
27293550004 Dielectric grease, 150gDielectric grease, 150g
-
28515145900 NutNut
-
2942603 ConnectorConnector
-
30515151500 Switch cap ass'ySwitch cap ass'y
-
3142268 Connector housingConnector housing
-
32515176035 HornHorn
-
33414805101 Plastic nutPlastic nut
-
34414681800 Oil lever sensorOil lever sensor
-
35414681900 FloatFloat
-
36410113400 Pilot LampPilot Lamp
-
37410109600 Pilot LampPilot Lamp
-
38410109500 Pilot LampPilot Lamp
-
39410609300 Head lamp ass'y. Includes 39 to 42Head lamp ass'y. Includes 39 to 42
-
40410503700 BulpBulp
-
41410607100 CoverCover
-
42410608300 Bulp halderBulp halder
-
43517168600 SpringSpring
-
44243244040 Skruv M4 x 40Skruv M4 x 40
-
45572078600 Plast mutterPlast mutter
-
46410608200 GummistoppGummistopp
-
47539864 StodStod
-
4820002 Bricka A5,3Bricka A5,3
-
4936489 RivetRivet
-
5045006 Speedometer cableSpeedometer cable
-
51390004 TubingTubing
-
52515175335 SpeedometerSpeedometer
-
53517258500 WasherWasher
-
54414806500 HolderHolder
-
55414807100 O-ringO-ring
-
5633062 Elastic flanged nut M5Elastic flanged nut M5
-
57414991700 KeyKey
-
58410504200 BulpBulp
-
5945075 InsertInsert
-
6035021 Gear unitGear unit
-
61605351360 Support plate. Forest Fox El.. Forest Fox El.Support plate. Forest Fox El.. Forest Fox El.
