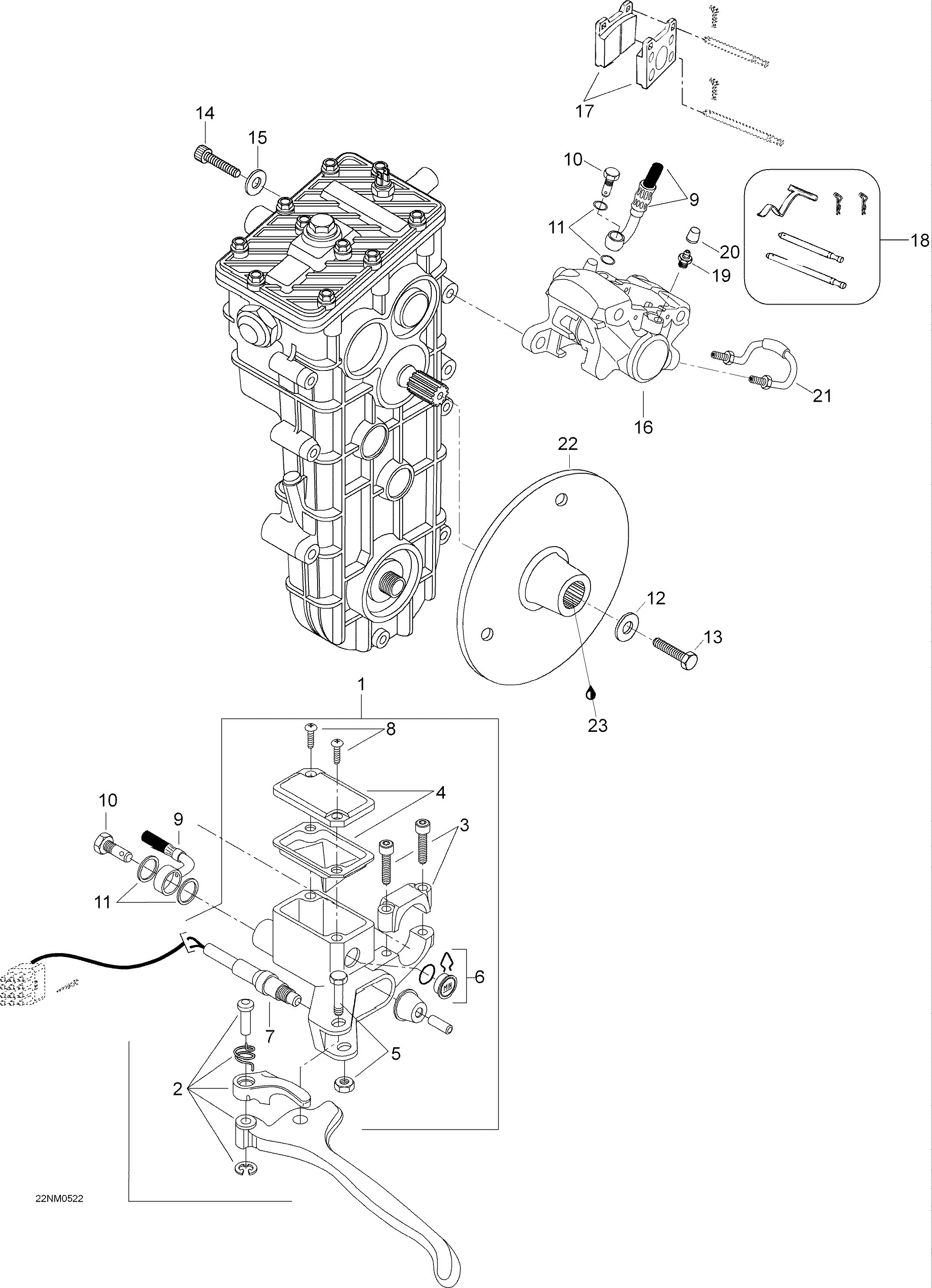

06- Brake для BRP Lynx ST550 - 2005
-
№АртикулНазвание
-
1507032322 Master cylinder. Imcludes 1 to 8Master cylinder. Imcludes 1 to 8
-
2507032268 Short brake leverShort brake lever
-
3415029800 Clamp assyClamp assy
-
4415029900 CoverCover
-
5415030000 Pin ass'yPin ass'y
-
6414990600 WindowWindow
-
7507032334 Microswitch ass'yMicroswitch ass'y
-
8216141260 ScrewScrew
-
9507032219 HoseHose
-
10414920500 Banjo boltBanjo bolt
-
11414920600 WasherWasher
-
12546336 WasherWasher
-
1340336 Hex. screw M8 x 20Hex. screw M8 x 20
-
1440277 Socket head screw M10 x 65Socket head screw M10 x 65
-
1520068 Lock washer D10Lock washer D10
-
16507032412 Caliper. Imcludes 17 to 21Caliper. Imcludes 17 to 21
-
17415084600 Brake lining kitBrake lining kit
-
18414990700 Kit (pins, retainers, spring)Kit (pins, retainers, spring)
-
19414989800 Bleeder screwBleeder screw
-
20414989700 BootBoot
-
21414989900 TubeTube
-
225344710 Brake disk. ST 550Brake disk. ST 550
-
22605350507 Brake disk. ST 600Brake disk. ST 600
-
23293800070 Loctite 767, Antiseize lubricant, 8ozLoctite 767, Antiseize lubricant, 8oz
