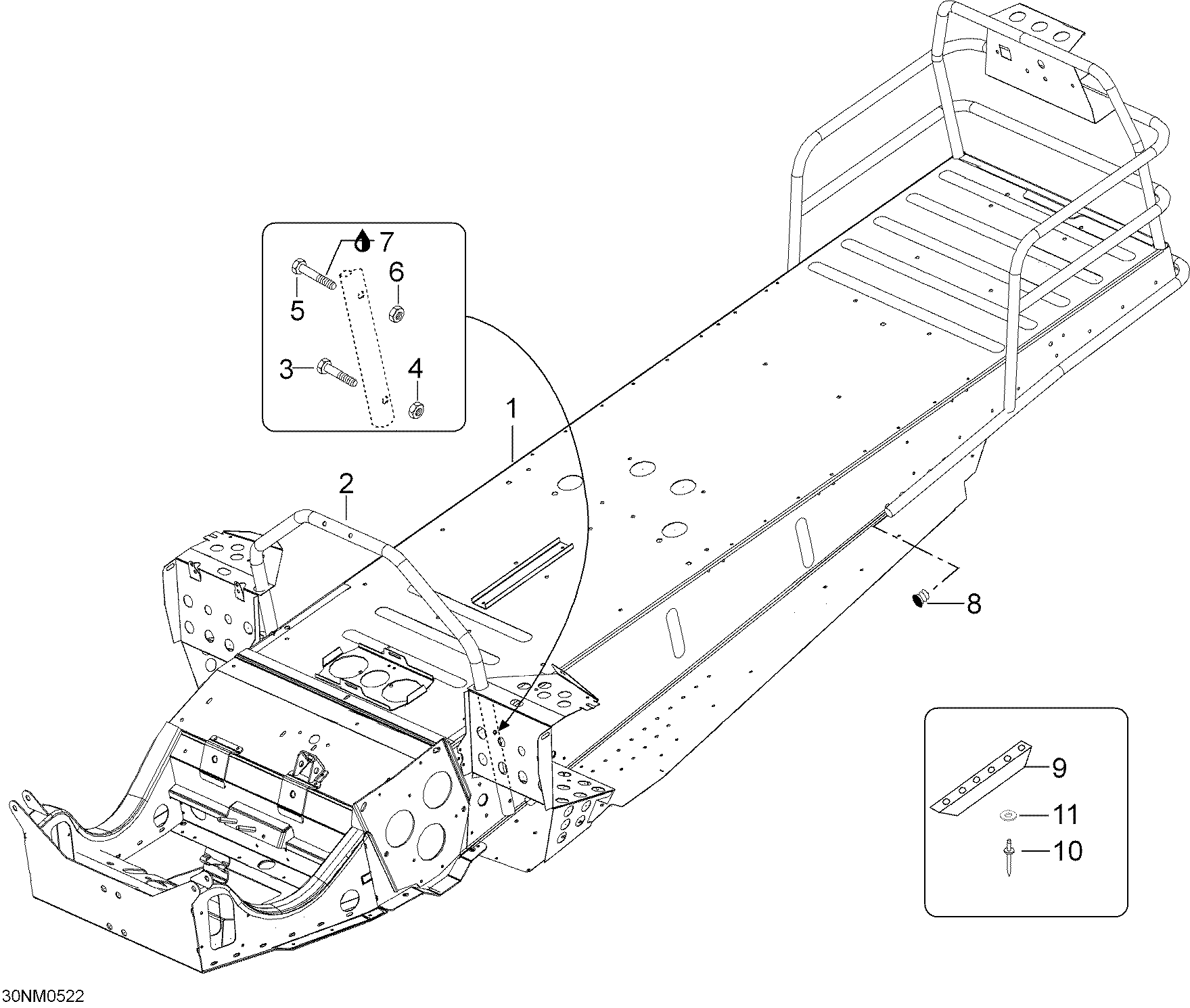

09- Frame для BRP Lynx ST550 - 2005
-
№АртикулНазвание
-
1605148688 Frame ass'y. Includes 1 to 2, ST 550Frame ass'y. Includes 1 to 2, ST 550
-
1605149618 Frame ass'y. Includes 1 to 2, ST 600Frame ass'y. Includes 1 to 2, ST 600
-
2605150258 Handle steering supportHandle steering support
-
340032 Hex. screw M6 x 40Hex. screw M6 x 40
-
433051 Nut M6Nut M6
-
540002 Elastic flanged nut M6Elastic flanged nut M6
-
633200 Elastic flanged nut M6Elastic flanged nut M6
-
7293800060 Loctite 243, 10mlLoctite 243, 10ml
-
828136 PlugPlug
-
9605349264 Protector. ST 550Protector. ST 550
-
1036005 Rivet. ST 550Rivet. ST 550
-
1120002 Washer A5,3. ST 550Washer A5,3. ST 550
