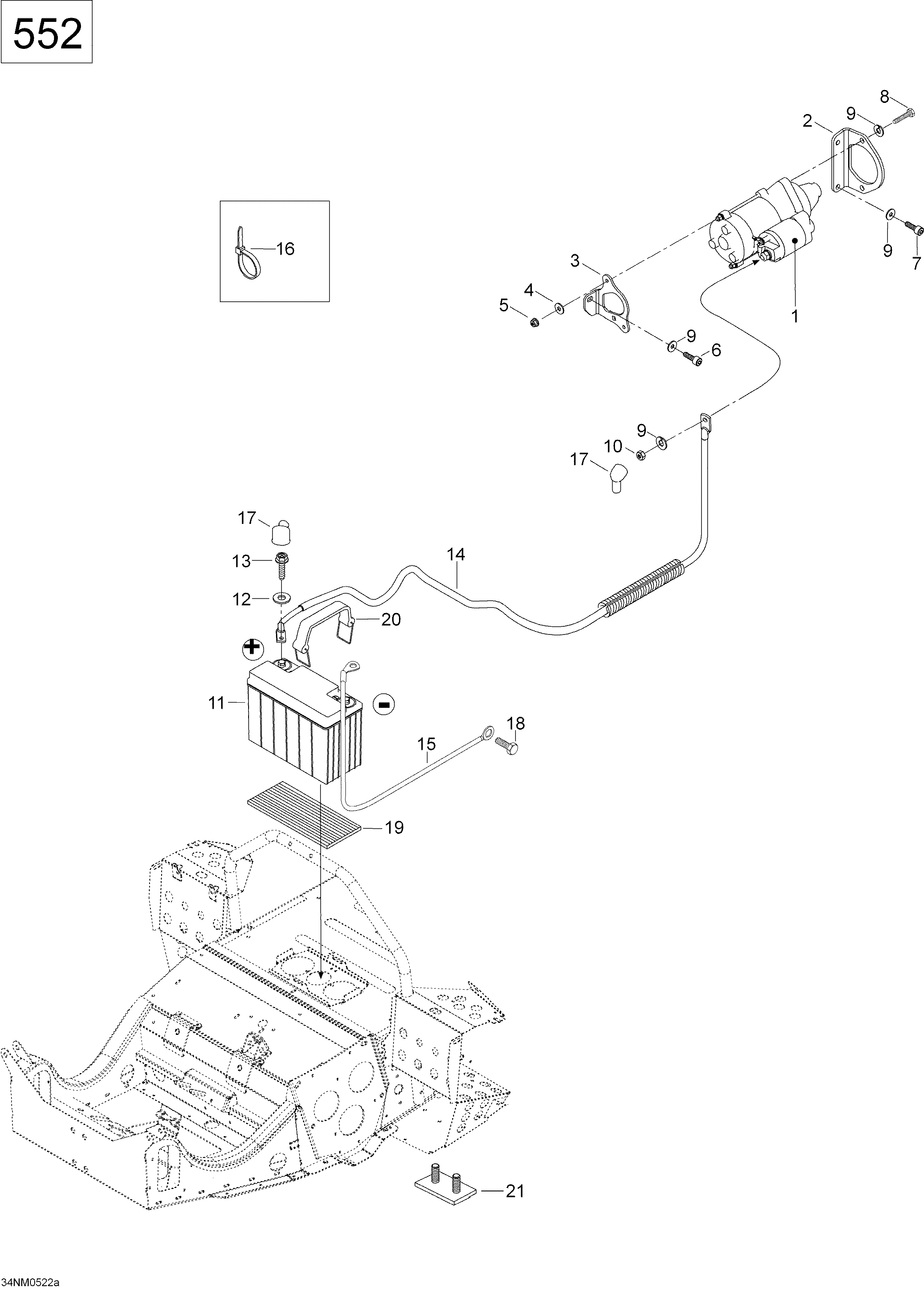

10- Battery And Starter, 550 для BRP Lynx ST550 - 2005
-
№АртикулНазвание
-
1410212400 StarterStarter
-
2515175633 Bracket, PTOBracket, PTO
-
3420951426 Bracket, MAGBracket, MAG
-
420008 Washer A5,3Washer A5,3
-
533009 Nut M5Nut M5
-
640066 Socket head screw M8 x 16Socket head screw M8 x 16
-
740305 Socket head screw M8 x 20Socket head screw M8 x 20
-
840036 Hex. screw M8 x 20Hex. screw M8 x 20
-
920014 Spring washerSpring washer
-
1033003 Nut M8Nut M8
-
11515175642 Battery. Includes 11 to 13Battery. Includes 11 to 13
-
12391302100 WasherWasher
-
13207161644 Screw M6 x 16Screw M6 x 16
-
14
-
15549887 Ground wireGround wire
-
1627026 Tie-rapTie-rap
-
17570151000 Cap protectionCap protection
-
1840327 Hex. screw M6 x 12Hex. screw M6 x 12
-
19605350237 RubberRubber
-
20515175475 Battery strapBattery strap
-
215448286 Support plateSupport plate
