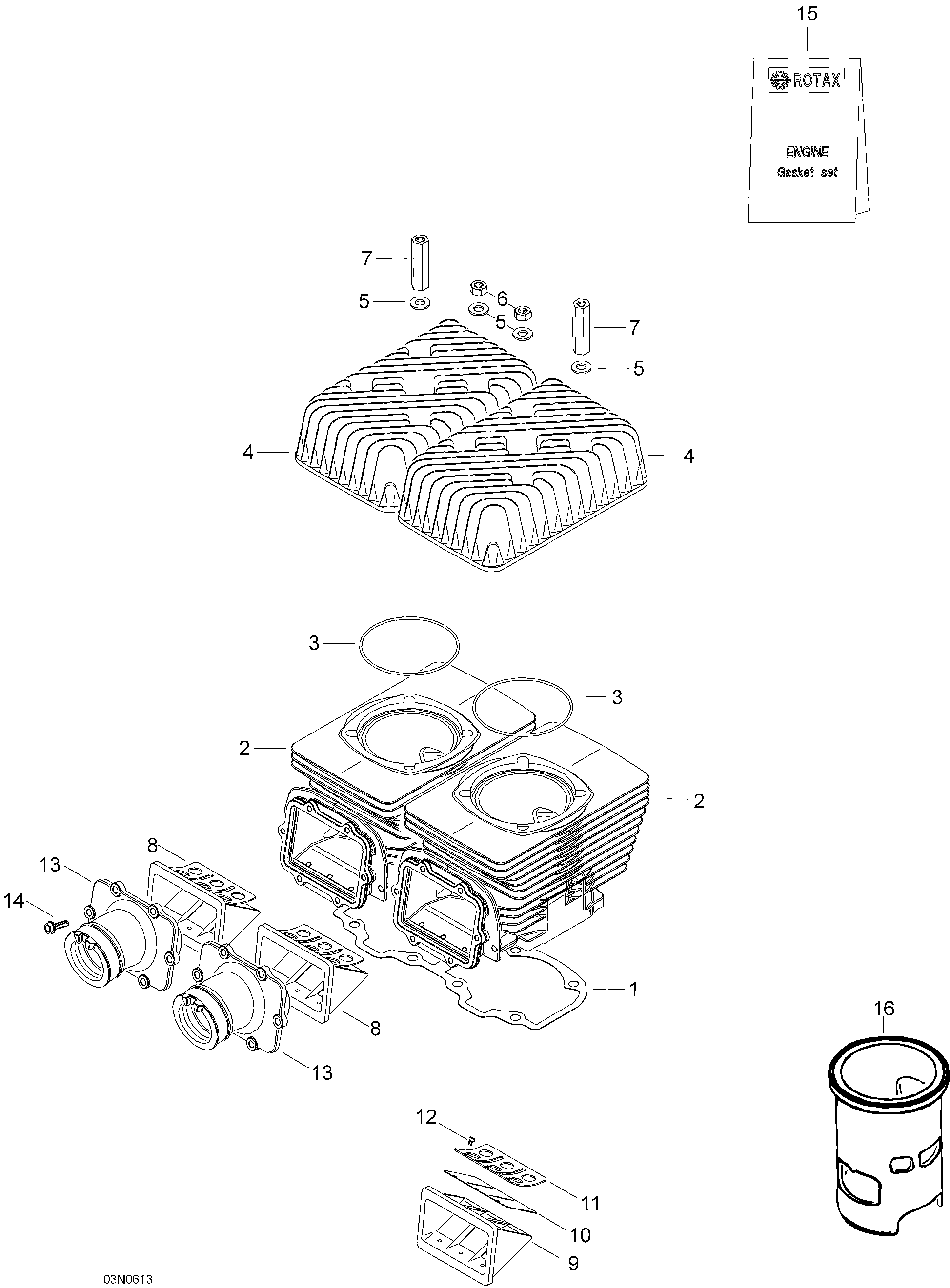

01- Cylinder And Cylinder Head для BRP Lynx Adventure LX 550 F - 2006
-
№АртикулНазвание
-
1420950910 Gasket, cyl.bottom 0.3Gasket, cyl.bottom 0.3
-
1420950911 Gasket, cyl.bottom 0.4Gasket, cyl.bottom 0.4
-
1420950912 Gasket, cyl.bottom 0.6Gasket, cyl.bottom 0.6
-
2420923978 CylinderCylinder
-
3420850540 Gasket, cylinder headGasket, cylinder head
-
4420923595 Cylinder headCylinder head
-
520004 WasherWasher
-
6420242206 Nut M8Nut M8
-
7420842203 Nut M8 x 47Nut M8 x 47
-
8420924519 Reed valve assyReed valve assy
-
10420924532 Reed pedalReed pedal
-
11420924539 Pedal stopPedal stop
-
12420941215 Screw M3 x 5Screw M3 x 5
-
13420867300 Carburetor socketCarburetor socket
-
14420941925 Screw M5 x 16Screw M5 x 16
-
15420889911 Gasket setGasket set
-
16420923981 Cylinder sleeveCylinder sleeve
