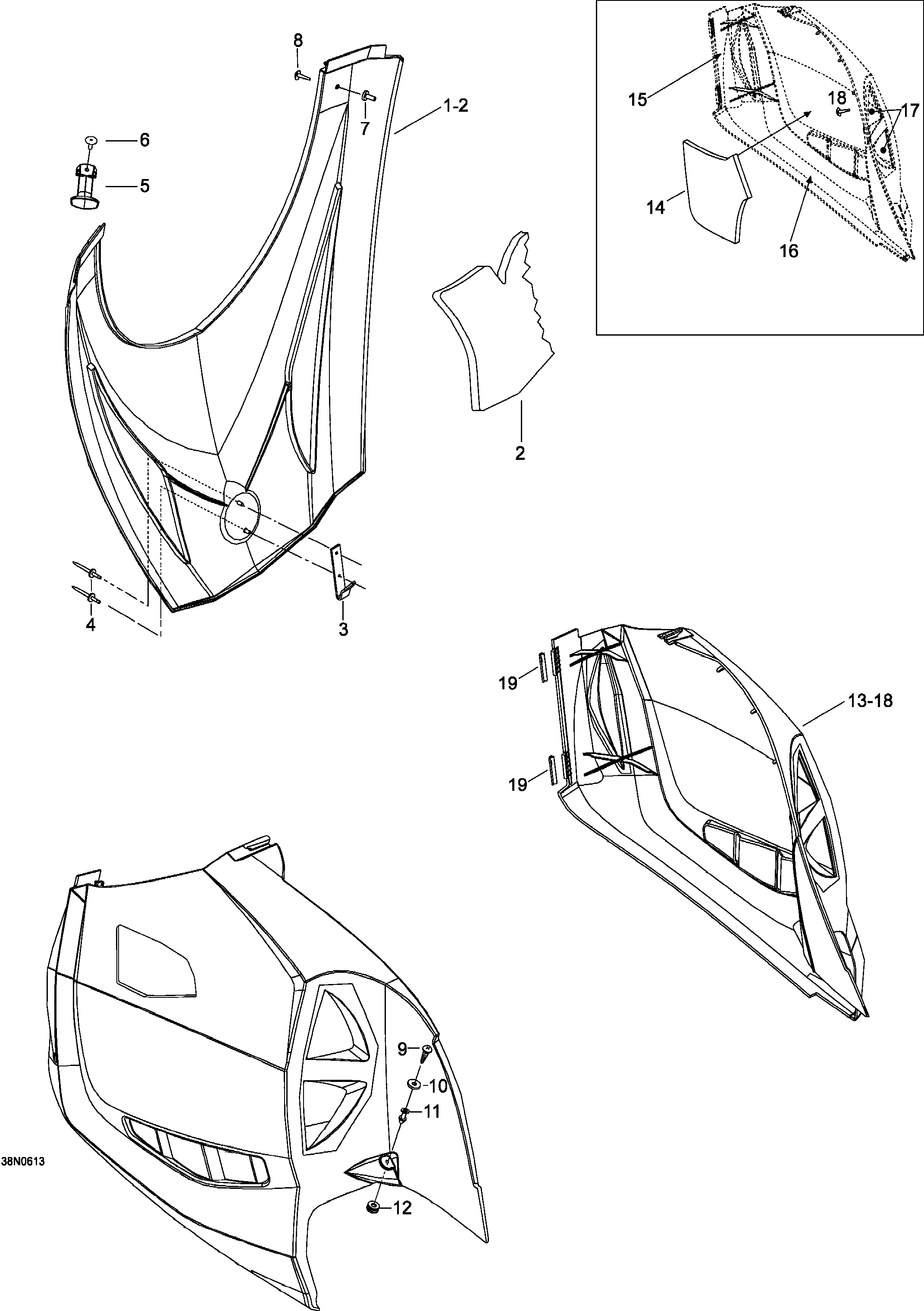

09- Hood для BRP Lynx Adventure LX 550 F - 2006
-
№АртикулНазвание
-
1605152362 Hood, pre ass'y, Spy Silver. Includes 1 to 3Hood, pre ass'y, Spy Silver. Includes 1 to 3
-
2605252248 FoamFoam
-
3605353185 BracketBracket
-
436004 RivetRivet
-
5570027100 LatchLatch
-
636037 RivetRivet
-
736015 Rivet nut M5Rivet nut M5
-
840072 Screw M5 x 16Screw M5 x 16
-
9208651481 Screw M5 x 14Screw M5 x 14
-
10250200025 WasherWasher
-
11517245800 KnobKnob
-
12517302841 GrommetGrommet
-
13605151722 R.H. Panel, pre ass'y, Spy Silver. Includes 13 to 18R.H. Panel, pre ass'y, Spy Silver. Includes 13 to 18
-
13605153312 L.H. Panel, pre ass'y, Spy Silver. Includes 13 to 18L.H. Panel, pre ass'y, Spy Silver. Includes 13 to 18
-
14605251679 R.H. FoamR.H. Foam
-
14605252003 L.H. FoamL.H. Foam
-
1544001 R.H. Reflection sheetR.H. Reflection sheet
-
1644001 L.H. Reflection sheetL.H. Reflection sheet
-
17605352689 R.H. Side grillR.H. Side grill
-
17605352690 L.H. Side grillL.H. Side grill
-
1840887 Wronic-screw 4.2 x 9.5Wronic-screw 4.2 x 9.5
-
19517302823 Hinge lockHinge lock
