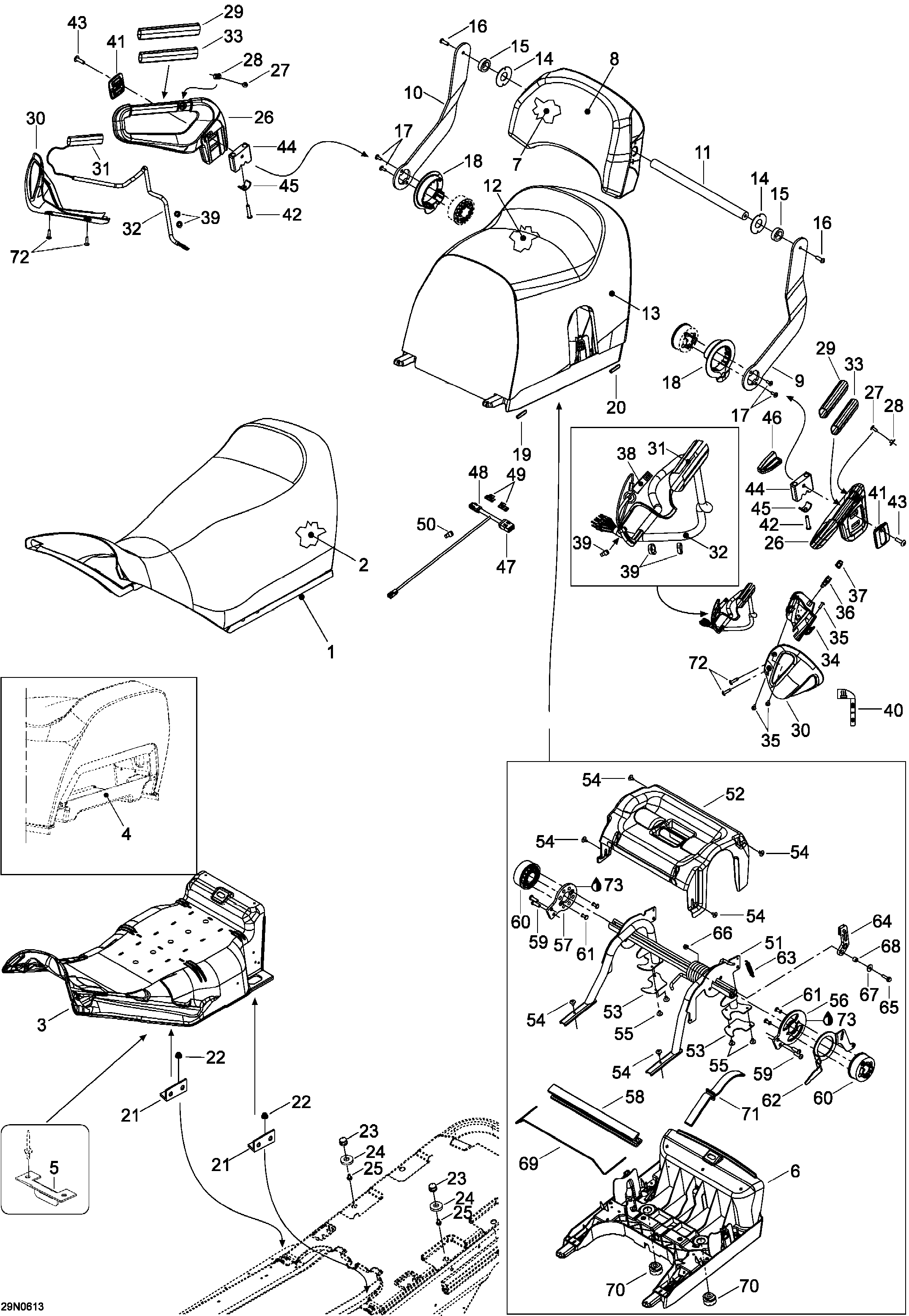

09- Seat для BRP Lynx Adventure LX 550 F - 2006
-
№АртикулНазвание
-
1605353494 CoverCover
-
2605353493 FoamFoam
-
3605353495 Seat baseSeat base
-
4605353794 BaseBase
-
5605453989 BracketBracket
-
6510004433 Seat base, rearSeat base, rear
-
7510004365 FoamFoam
-
8510004643 CoverCover
-
9510004375 L.H. ArmL.H. Arm
-
10510004373 R.H. ArmR.H. Arm
-
11510004377 ShaftShaft
-
12605252444 FoamFoam
-
13605252445 CoverCover
-
14510004379 WasherWasher
-
15510004378 Rubber shimRubber shim
-
16205982586 Socket head screw M8 x 25Socket head screw M8 x 25
-
17250000198 Torx-screw M8 x 16Torx-screw M8 x 16
-
18510004384 SpacerSpacer
-
19510004610 Front seat cornerFront seat corner
-
20510004611 Rear seat cornerRear seat corner
-
21605454287 Support plateSupport plate
-
2233201 Elastic flanged nut M8Elastic flanged nut M8
-
23510004417 Seat studSeat stud
-
2420017 Serrated lock washer M6Serrated lock washer M6
-
25207561044 Screw M6 x 10Screw M6 x 10
-
26510004367 R.H. GripR.H. Grip
-
26510004368 L.H. GripL.H. Grip
-
27250000129 Screw M6 x 16Screw M6 x 16
-
28293100003 NutNut
-
29510004449 GripGrip
-
30510004415 R.H. DeflectorR.H. Deflector
-
30510004416 L.H. DeflectorL.H. Deflector
-
31515176393 Heating elementHeating element
-
32515175506 TubingTubing
-
33510004709 Handle reinforcementHandle reinforcement
-
34510004566 Housing switchHousing switch
-
35250000146 ScrewScrew
-
36510004413 SwitchSwitch
-
37510004414 Prorector switchProrector switch
-
38515176241 Wiring harnessWiring harness
-
39414115200 Tie-rapTie-rap
-
40516002835 DekalDekal
-
41510004405 MoldingMolding
-
42250000220 Screw M8 x 45Screw M8 x 45
-
43250000197 Torx-screw M8 x 30Torx-screw M8 x 30
-
44510004530 Handle linkHandle link
-
45510004565 Handle clampHandle clamp
-
46510004419 GripGrip
-
47515175817 Male connectorMale connector
-
48515175494 Male connector housingMale connector housing
-
49515175283 Housing sup.Housing sup.
-
5027026 Tie-rapTie-rap
-
51510004381 SupportSupport
-
52510004423 Foam supportFoam support
-
53510004500 Plate-wearPlate-wear
-
54293150104 RivetRivet
-
55293150108 RivetRivet
-
56510004391 SprocketSprocket
-
57510004393 Link plateLink plate
-
58510004394 Link tubeLink tube
-
59205982586 Socket head screw M8 x 25Socket head screw M8 x 25
-
60510004390 SpacerSpacer
-
61293150129 RivetRivet
-
62510004385 Black handleBlack handle
-
63510004395 SpringSpring
-
64510004392 Adjustment pivotAdjustment pivot
-
65207662544 Screw M6 x 25Screw M6 x 25
-
66233261414 Elastic flanged nut M6Elastic flanged nut M6
-
67224061201 WasherWasher
-
68510004425 CushionCushion
-
69510004421 SpringSpring
-
70708000323 Rubber bumperRubber bumper
-
71510004495 Release beltRelease belt
-
72250000199 ScrewScrew
-
73293800070 Loctite 767, 8ozLoctite 767, 8oz
