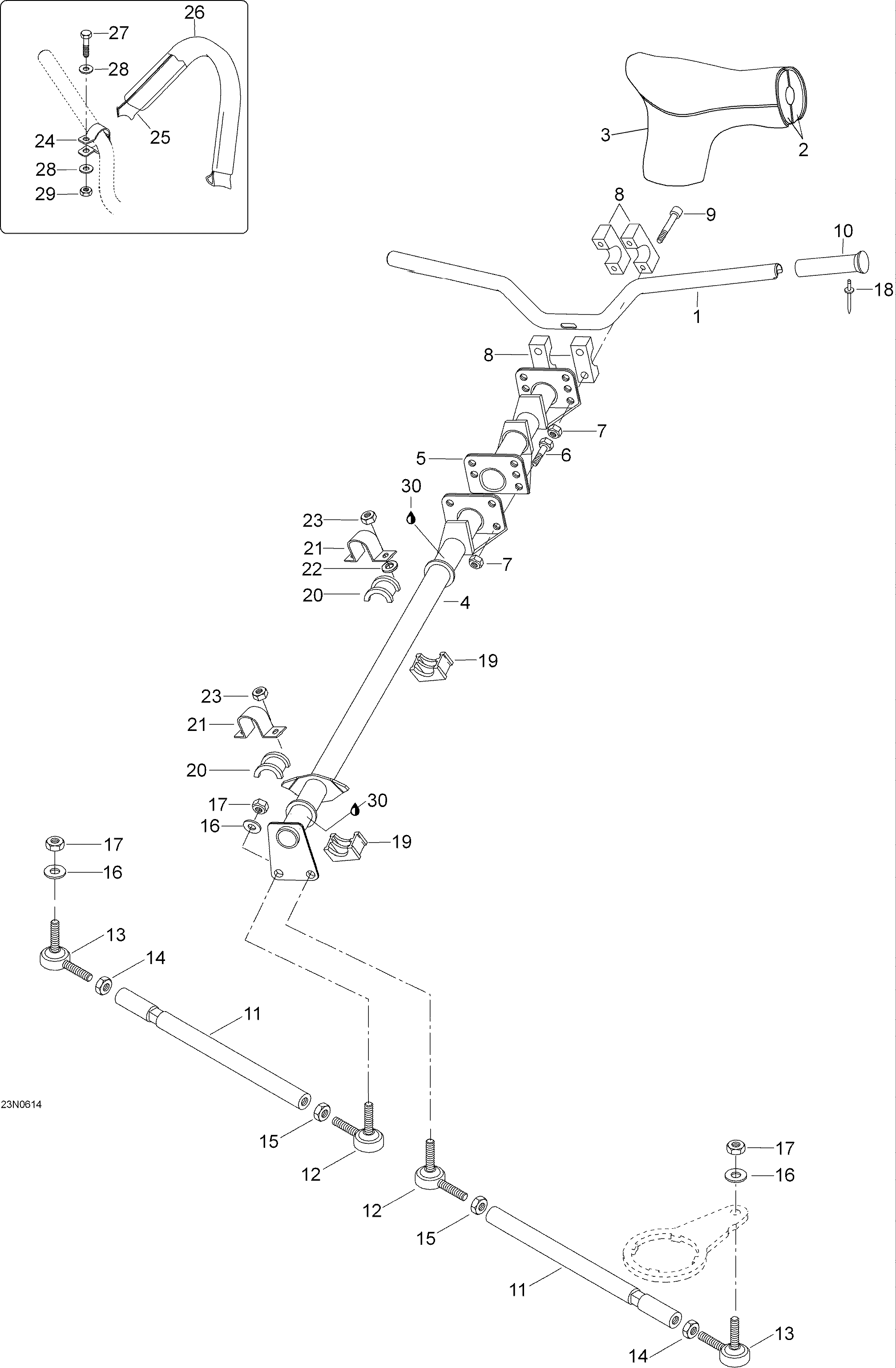

07- Steering System для BRP Lynx Forest Fox El - 2006
-
№АртикулНазвание
-
1605249033 Handle barHandle bar
-
2605250305 Steering padding, frontSteering padding, front
-
2605250306 Steering padding, rearSteering padding, rear
-
3605252513 CoverCover
-
45245963 Main tubeMain tube
-
5605250820 ExtensionExtension
-
640035 Hex. screw M8 x 16Hex. screw M8 x 16
-
733011 Elastic stop nut M8Elastic stop nut M8
-
8548448 Steering supportSteering support
-
940286 Socket head screw M8 x 45Socket head screw M8 x 45
-
105340464 GripGrip
-
11548983 Tie rodTie rod
-
12506151495 L.H. Ball jointL.H. Ball joint
-
13506151492 R.H. Ball jointR.H. Ball joint
-
1433019 R.H. Nut M10R.H. Nut M10
-
1533017 L.H. Nut M10L.H. Nut M10
-
1620047 Washer B10Washer B10
-
1733023 Elastic stop nut M10Elastic stop nut M10
-
1836005 RivetRivet
-
19572064400 Half housingHalf housing
-
20572064500 Half housingHalf housing
-
215343381 SupportSupport
-
2231081 WasherWasher
-
2333201 Elastic flanged nut M8Elastic flanged nut M8
-
24415090200 GripGrip
-
25415095500 Tie-downTie-down
-
2640031 Hex. screw M6 x 25Hex. screw M6 x 25
-
2720003 Washer A6,4Washer A6,4
-
2833010 Elastic stop nut M6Elastic stop nut M6
-
29506148200 Support plateSupport plate
-
30413711500 Synthetic greaseSynthetic grease
