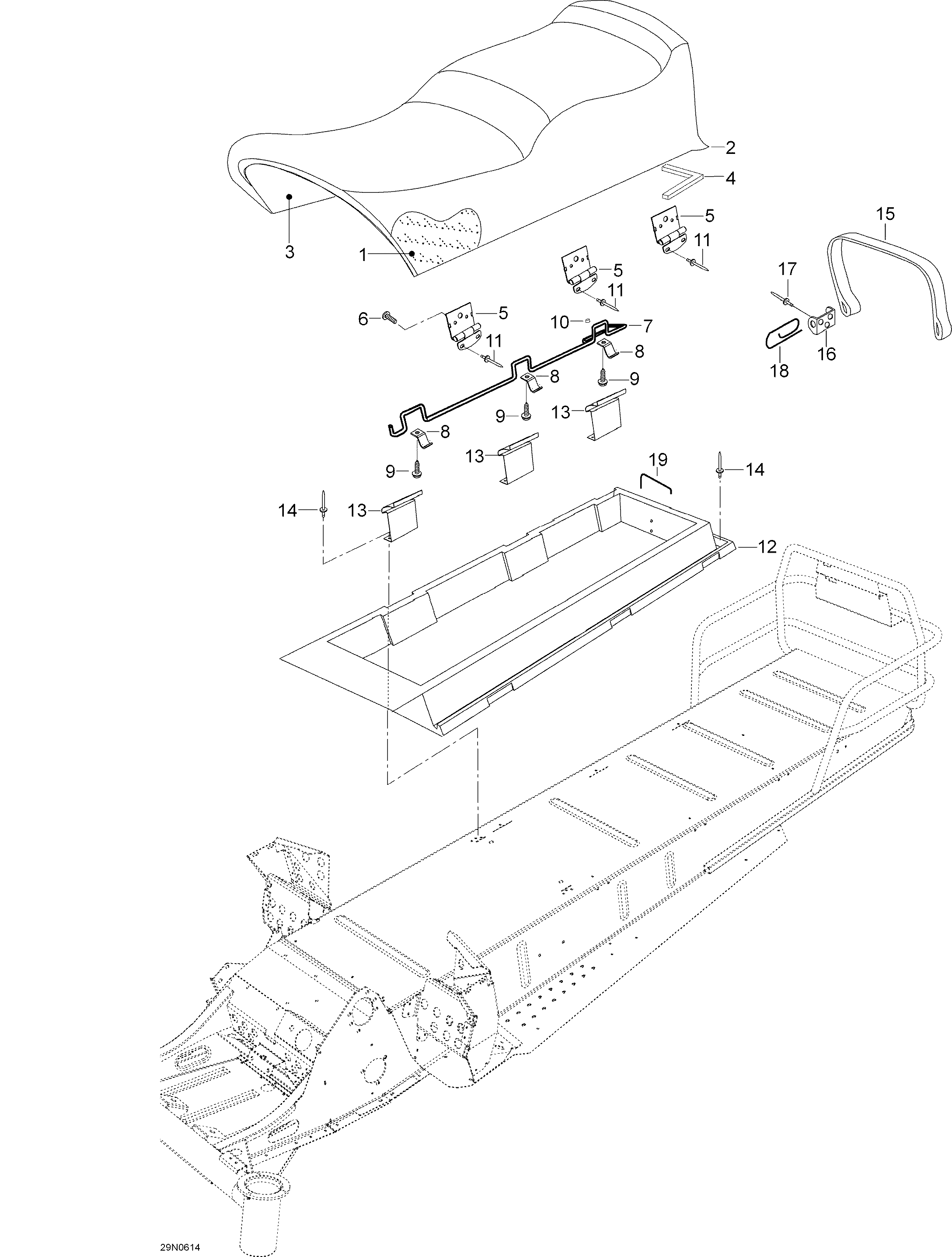

09- Seat для BRP Lynx Forest Fox El - 2006
-
№АртикулНазвание
-
1605150630 FoamFoam
-
2605153080 CoverCover
-
35144962 Seat baseSeat base
-
45245337 Locking shaftLocking shaft
-
55346518 HingeHinge
-
65446102 Locking plateLocking plate
-
740888 Wronic-screw 4,2 x 19Wronic-screw 4,2 x 19
-
840887 Wronic-screw 4,2 x 9,5Wronic-screw 4,2 x 9,5
-
936083 RivetRivet
-
1028019 PlugPlug
-
11605350823 Seat housingSeat housing
-
125345195 Locking deviceLocking device
-
1336489 RivetRivet
-
145346728 Spring plateSpring plate
-
155346727 Seat beltSeat belt
-
16548824 Belt lugBelt lug
-
1736083 RivetRivet
-
18548834 hair pinhair pin
-
195441849 HookHook
