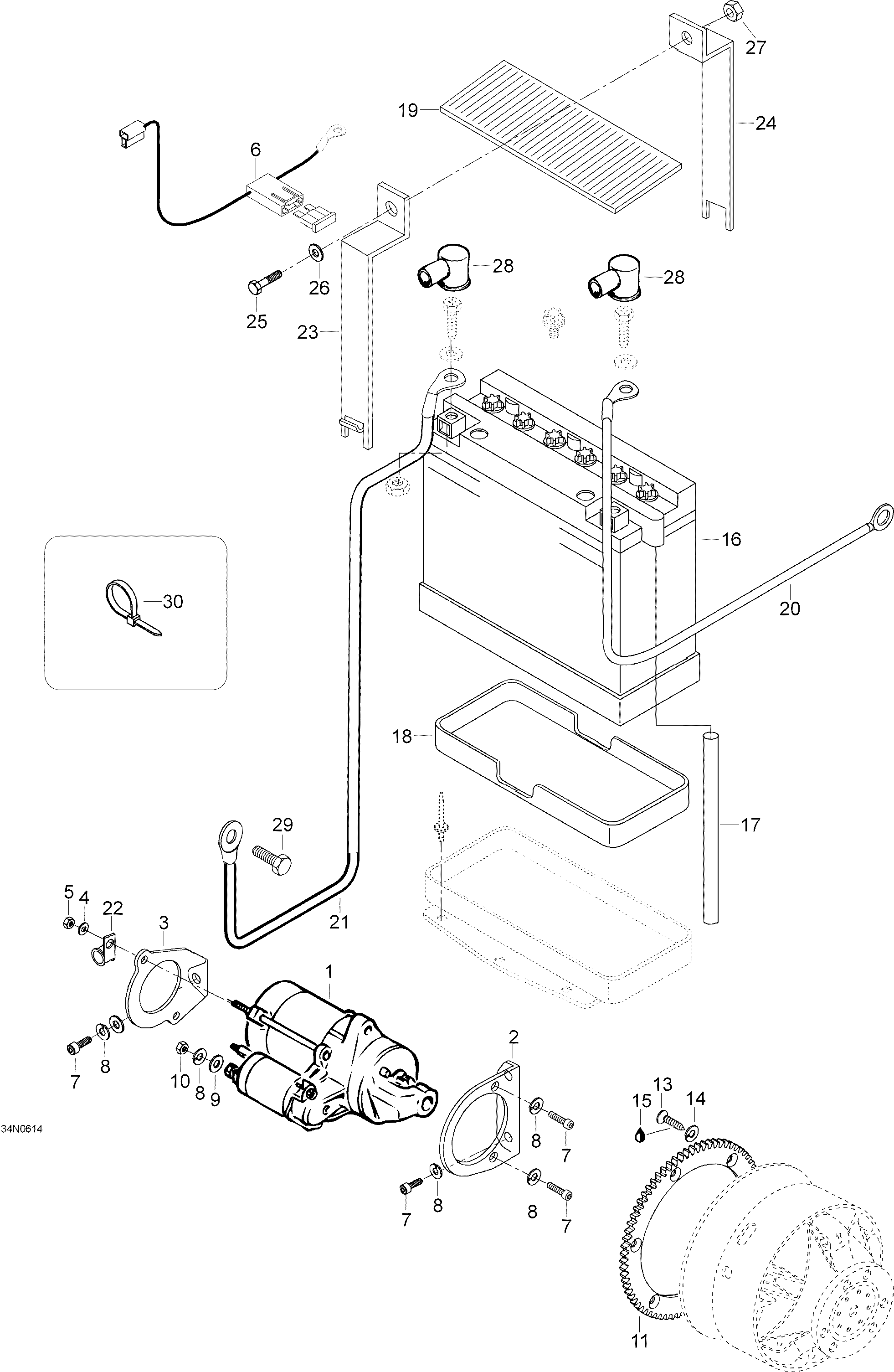

10- Battery And Starter для BRP Lynx Forest Fox El - 2006
-
№АртикулНазвание
-
1410212400 Electric starterElectric starter
-
25346654 Bracket. PTO-sideBracket. PTO-side
-
35346655 Bracket. MAG-sideBracket. MAG-side
-
420008 Washer A5,3Washer A5,3
-
533009 Elastic stop nut M5Elastic stop nut M5
-
65346695 Chargening harness ass'yChargening harness ass'y
-
740305 Socket head screw M8 x 20Socket head screw M8 x 20
-
820014 Lock washer A8Lock washer A8
-
920004 Washer A8,4Washer A8,4
-
1033003 Nut M8Nut M8
-
11417222860 Ring gear(86 tooth)Ring gear(86 tooth)
-
13236281684 Screw M8 x 16Screw M8 x 16
-
1420078 Washer A8,4Washer A8,4
-
1642215 BatteryBattery
-
1739055 HoseHose
-
185346659 Battery housingBattery housing
-
195446666 Rubber baseRubber base
-
20605349434 Battery wireBattery wire
-
21549887 Ground wireGround wire
-
2227092 ClampClamp
-
235446682 Steel stripSteel strip
-
245446694 Steel stripSteel strip
-
2540032 Hex. screw M6 x 30Hex. screw M6 x 30
-
2620003 Washer A6,4Washer A6,4
-
2733200 Elastic flanged nut M6Elastic flanged nut M6
-
28570151000 CapCap
-
2940327 Hex. screw M6 x 12Hex. screw M6 x 12
-
3027026 Tie-RapTie-Rap
