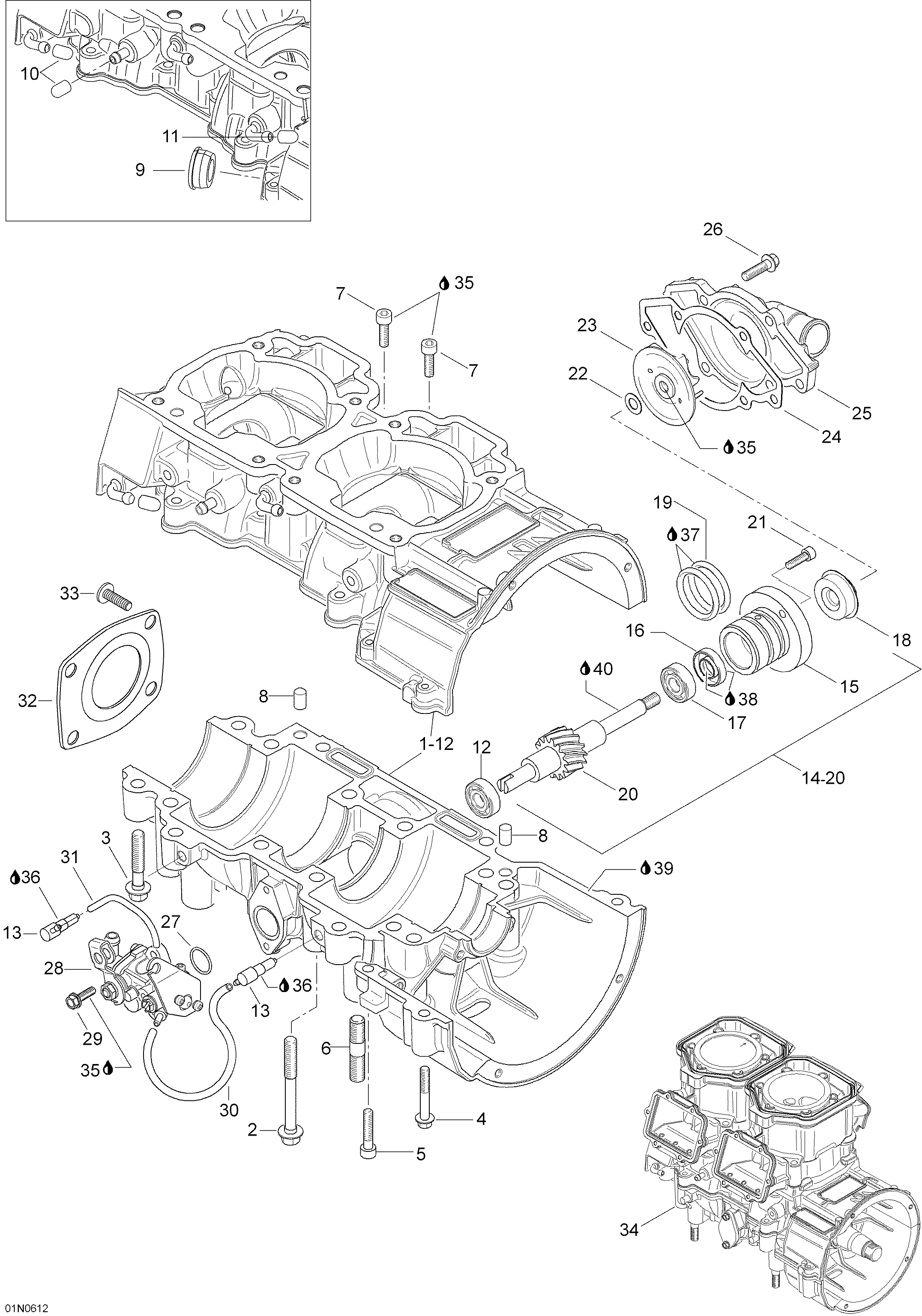

01- Crankcase для BRP Lynx Rave Xtrim N-duro 800 Power TEK - 2006
-
№АртикулНазвание
-
1420889686 Crankcase ass'y. Includes 1 to 12. Includes 1 to 12Crankcase ass'y. Includes 1 to 12. Includes 1 to 12
-
2420640836 Screw M8 x 75Screw M8 x 75
-
3420640431 Screw M8 x 45Screw M8 x 45
-
4420640311 Screw M6 x 45Screw M6 x 45
-
5420840880 Allen screw M6 x 30Allen screw M6 x 30
-
6420641834 Stud M10 x 29Stud M10 x 29
-
7420840401 Allen screw M6 x 22Allen screw M6 x 22
-
8420632010 PinPin
-
9420860965 Cable grommetCable grommet
-
10420960770 Closure capClosure cap
-
11420960777 Protection capProtection cap
-
12420232100 Ball bearingBall bearing
-
13420956510 Checkvalve assyCheckvalve assy
-
14420837421 Waterpump/oilpump shaft. Includes 14 to 20. Includes 14 to 20Waterpump/oilpump shaft. Includes 14 to 20. Includes 14 to 20
-
16420230196 Oil sealOil seal
-
17420232100 Ball bearingBall bearing
-
18420650370 Rotary sealRotary seal
-
19420950890 O-ringO-ring
-
21420840511 Allen screw M5 x 16Allen screw M5 x 16
-
22420227945 Thrust washerThrust washer
-
23420222505 ImpellerImpeller
-
24420931810 GasketGasket
-
25420922630 Pump housingPump housing
-
26420240031 Screw M6 x 25Screw M6 x 25
-
27420230400 O-ringO-ring
-
28420888774 Oil pump assyOil pump assy
-
29420941925 Screw M5 x 16Screw M5 x 16
-
30420660421 Oil line 70 mmOil line 70 mm
-
31420660423 Oil line 115 mm, PTOOil line 115 mm, PTO
-
32420812420 Cover plateCover plate
-
33420941430 Screw M6 x 20Screw M6 x 20
-
34300079342 Short block engineShort block engine
-
35293800060 Loctite 243, 10mlLoctite 243, 10ml
-
36413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
37413707000 Molykote 111Molykote 111
-
38420899271 Klueber petamo, 250gr.Klueber petamo, 250gr.
-
39420297906 Sealing compound, 30 mlSealing compound, 30 ml
-
40413802900 Injection oil (12 x 1 Liter)Injection oil (12 x 1 Liter)
