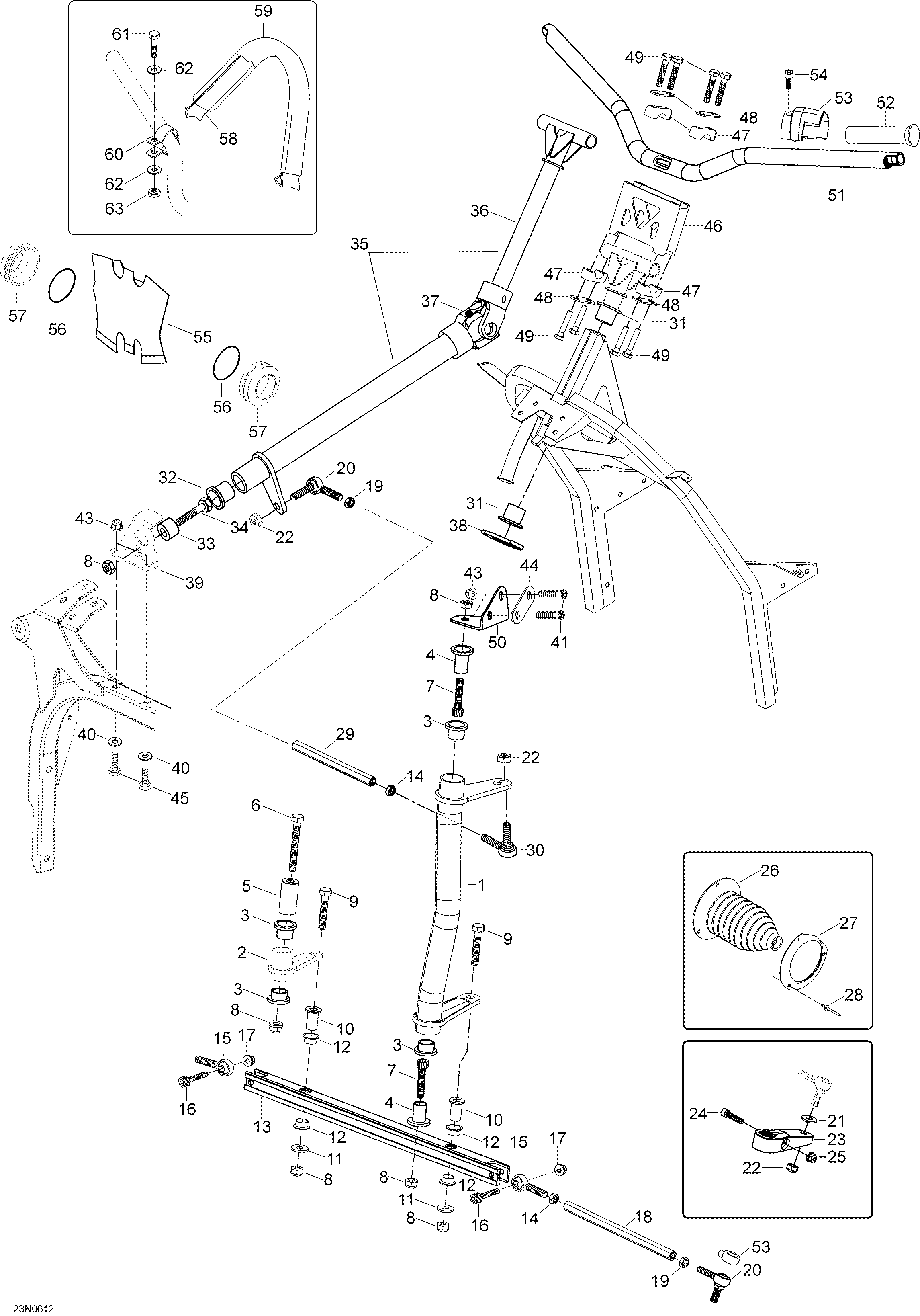

07- Steering System для BRP Lynx Rave Xtrim N-duro 800 Power TEK - 2006
-
№АртикулНазвание
-
1605353389 L.H. swivel armL.H. swivel arm
-
2605353644 R.H. swivel armR.H. swivel arm
-
331028 CushionCushion
-
4605453388 BushingBushing
-
5605453646 SleeveSleeve
-
640021 Hex. screw M10 x 70Hex. screw M10 x 70
-
740016 Socket head screw M10 x 45Socket head screw M10 x 45
-
833012 Elastic stop nut M10Elastic stop nut M10
-
940017 Hex. screw M10 x 55Hex. screw M10 x 55
-
10506147300 CushionCushion
-
1120028 Washer 10.5mmWasher 10.5mm
-
12506150200 SleeveSleeve
-
13605349868 Bar-swivelBar-swivel
-
14732610011 L.H. jam nut M10L.H. jam nut M10
-
15506151496 R.H. jam nut M10R.H. jam nut M10
-
1640395 Socket head screw M8 x 35Socket head screw M8 x 35
-
1733011 Elastic stop nut M8Elastic stop nut M8
-
18605349865 Tie-rodTie-rod
-
19732610010 R.H. jam nut M10R.H. jam nut M10
-
20506151491 R.H. Joint ballR.H. Joint ball
-
2120105 Washer, hardened 10mmWasher, hardened 10mm
-
2233023 Elastic stop nut M10Elastic stop nut M10
-
23506144800 R.H. steering armR.H. steering arm
-
23506144900 L.H. steering armL.H. steering arm
-
2440843 Socket head screw M8 x 35Socket head screw M8 x 35
-
2533201 Elastic flanged nut M8Elastic flanged nut M8
-
26605252101 Tie-rod capTie-rod cap
-
27605351469 Retainer ringRetainer ring
-
2836009 RivetRivet
-
29605353561 Tie-rodTie-rod
-
30506151495 L.H. Joint ballL.H. Joint ball
-
3131028 CushionCushion
-
32505070003 SleeveSleeve
-
33605453387 SleeveSleeve
-
3440014 Socket head screw M10 x 40Socket head screw M10 x 40
-
35605252355 Main tube. Includes 35 to 38Main tube. Includes 35 to 38
-
36605351995 Main tube, upper partMain tube, upper part
-
37605352441 Cross kitCross kit
-
38605453832 limiterlimiter
-
39605352600 BracketBracket
-
4020004 Washer A8,4Washer A8,4
-
4140392 Socket head screw M8 x 45Socket head screw M8 x 45
-
4220010 Washer A8,4Washer A8,4
-
4333201 Elastic flanged nut M8Elastic flanged nut M8
-
44605454048 Support plateSupport plate
-
4540008 Hex. screw M8 x 45Hex. screw M8 x 45
-
46506151413 ExtensionExtension
-
47506151622 Steering supportSteering support
-
48506151196 ReinforcementReinforcement
-
49250000074 Screw M8 x 40Screw M8 x 40
-
50605451772 Support bracketSupport bracket
-
51605252070 Handle barHandle bar
-
525340464 GripGrip
-
53506151566 AdapterAdapter
-
5440390 Screw M8 x 20Screw M8 x 20
-
55605354057 CapCap
-
5612402 O-ringO-ring
-
57605353609 AdapterAdapter
-
58415095500 Tie-downTie-down
-
59415090200 GripGrip
-
60506151792 Support plateSupport plate
-
6140031 Screw M6 x 25Screw M6 x 25
-
6220003 Washer A6,4Washer A6,4
-
6333010 Elastic stop nut M6Elastic stop nut M6
