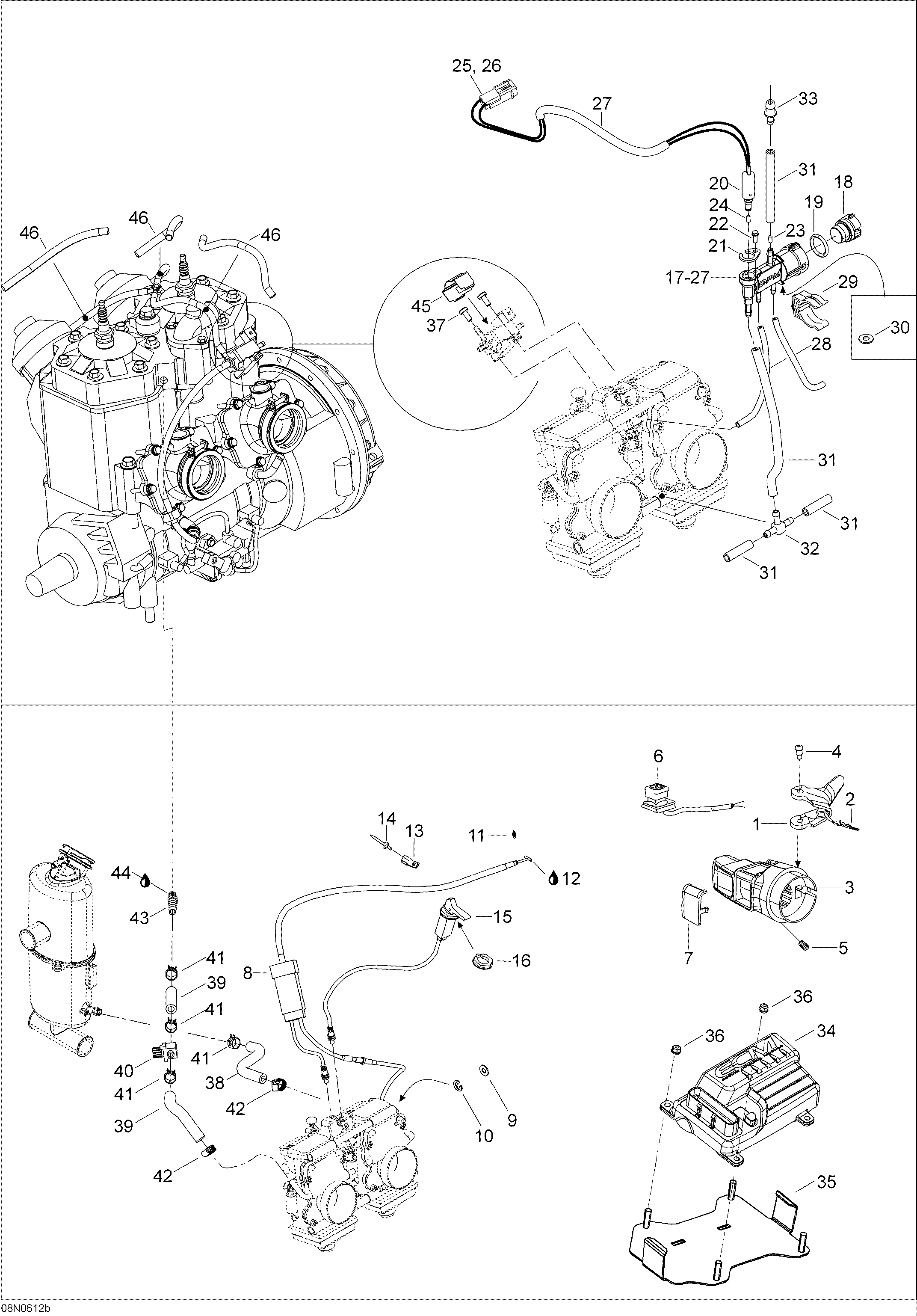

01- Throttle Handle And ECM для BRP Lynx Rave Xtrim N-duro 800 Power TEK - 2006
-
№АртикулНазвание
-
1512059107 Throttle handleThrottle handle
-
2605642628 Connector housingConnector housing
-
3512059763 Throttle handle bodyThrottle handle body
-
4732601143 ScrewScrew
-
5414440800 ScrewScrew
-
6515175410 Kill switchKill switch
-
7572100901 CoverCover
-
8512059699 Throttle cableThrottle cable
-
9234081100 WasherWasher
-
1031035 CirclipCirclip
-
1131038 CirclipCirclip
-
12293550004 GreaseGrease
-
1327092 ClampClamp
-
1436037 RivetRivet
-
15512059266 ChokeChoke
-
16512059094 Plastic nutPlastic nut
-
17512060002 Pressure manifold ass'y. Includes 17 to 27Pressure manifold ass'y. Includes 17 to 27
-
18270600009 CapCap
-
19293300042 O-ringO-ring
-
20515175701 Pressure manifold harnessPressure manifold harness
-
21415061600 Solenoid lockSolenoid lock
-
22241140060 Hex. flanged screw K40 x 10Hex. flanged screw K40 x 10
-
23404161819 Starter jetStarter jet
-
24404161825 Starter jet (2.0)Starter jet (2.0)
-
25515175670 Female terminal housing (2 circuits)Female terminal housing (2 circuits)
-
26515175675 Female lock (2 circuits)Female lock (2 circuits)
-
27515175332 Low temperature tubing, vinylLow temperature tubing, vinyl
-
28605639003 HoseHose
-
29512058919 Support (to pressure manifold)Support (to pressure manifold)
-
30504073700 WasherWasher
-
31415080200 HoseHose
-
32414729300 T-fittingT-fitting
-
33293710035 Straight fittingStraight fitting
-
34512060058 Calibreted moduleCalibreted module
-
35605354065 Bracket, ECMBracket, ECM
-
3633200 Elastic flanged nut M6Elastic flanged nut M6
-
3740063 Screw M5 x 12Screw M5 x 12
-
38509000171 HoseHose
-
39509000093 HoseHose
-
40512059324 ValveValve
-
41414655700 ClampClamp
-
42293650170 ClampClamp
-
43512059970 Straight fittingStraight fitting
-
44293800018 Loctite 592, 50mlLoctite 592, 50ml
-
45512059809 SupportSupport
-
4628004 TubingTubing
