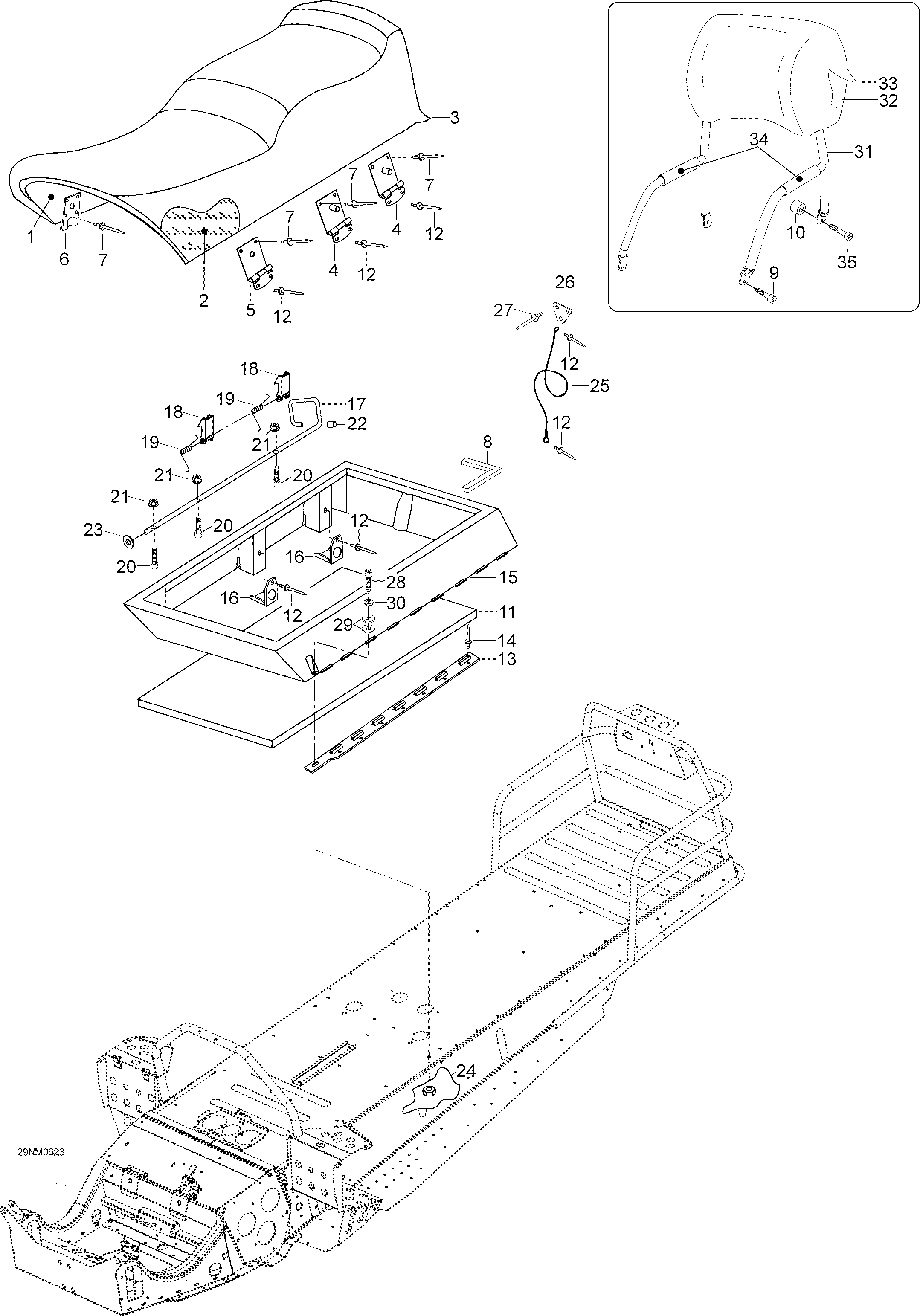

09- Seat для BRP Lynx ST 600 - 2006
-
№АртикулНазвание
-
1519394 Bottom of seatBottom of seat
-
2605148623 FoamFoam
-
3605153063 Seat coverSeat cover
-
4549874 HingeHinge
-
55440581 HingeHinge
-
6549732 Lock plate weld.Lock plate weld.
-
736071 RivetRivet
-
85440059 SealSeal
-
940388 Socket head screw M8 x 20Socket head screw M8 x 20
-
105440665 SleeveSleeve
-
115346079 FoamFoam
-
1236489 RivetRivet
-
135144028 Clip plate R.H.Clip plate R.H.
-
135144029 Clip plate L.H.Clip plate L.H.
-
1436083 RivetRivet
-
155142066 Seat boxSeat box
-
165443661 SupportSupport
-
175344987 Locking rodLocking rod
-
18605451589 Lock camLock cam
-
195444439 SpringSpring
-
2040144 Allen screw M4 x 16Allen screw M4 x 16
-
2133008 Nut elastic M4Nut elastic M4
-
2228019 PlugPlug
-
2331081 WasherWasher
-
2433066 Nut M6Nut M6
-
255447746 Retainer cableRetainer cable
-
26605452535 BracketBracket
-
2736038 RivetRivet
-
2840052 Socket head screw M6 x 20Socket head screw M6 x 20
-
2920009 Washer A6.4Washer A6.4
-
3020052 Lock washer A6Lock washer A6
-
315245664 BackrestBackrest
-
32539399 Backrest foamBackrest foam
-
335340917 Backrest coverBackrest cover
-
34415050300 GripGrip
-
3540389 Socket head screw M8 x 30Socket head screw M8 x 30
