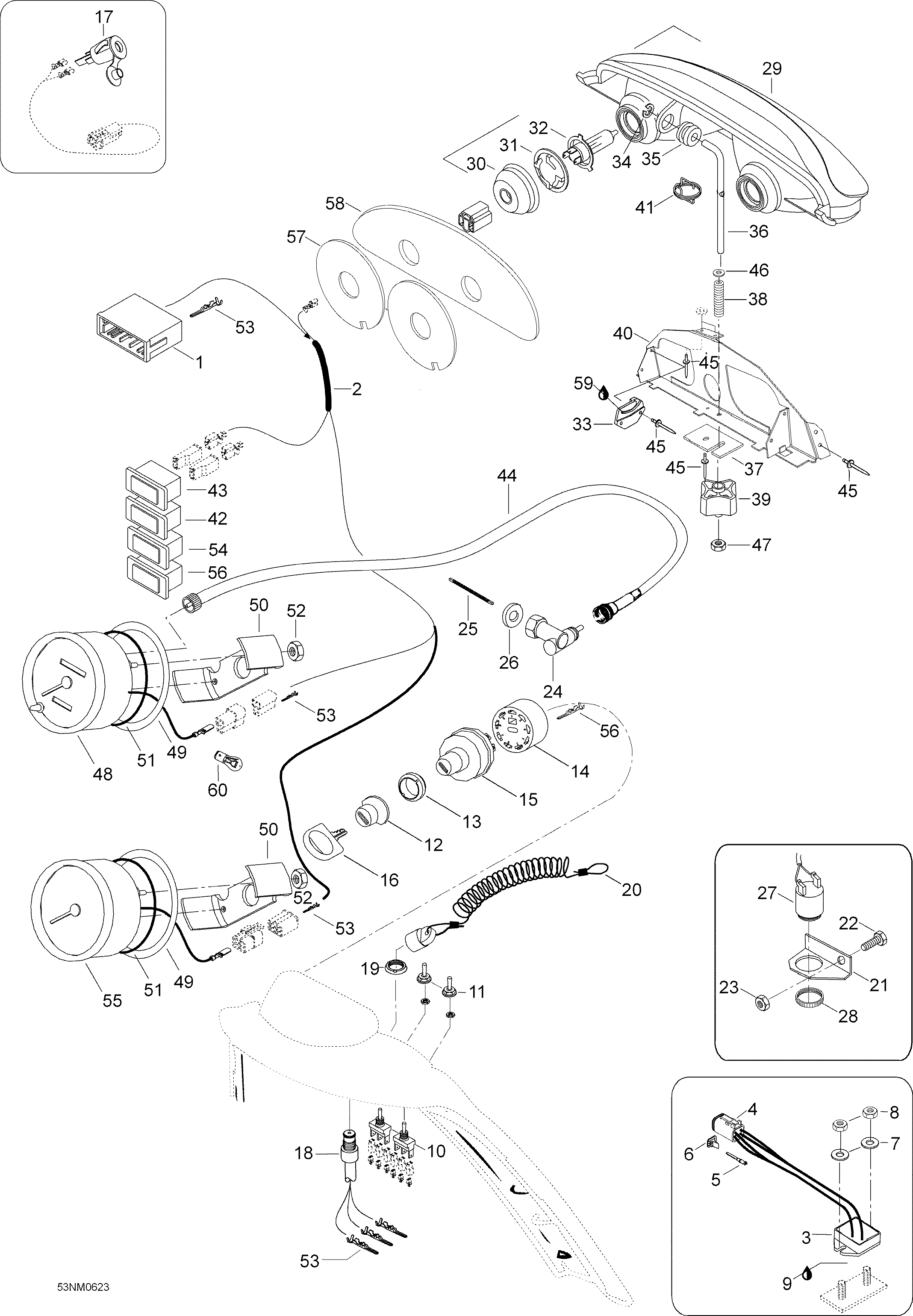

10- Electrical Acessories для BRP Lynx ST 600 - 2006
-
№АртикулНазвание
-
142617 Male connector housingMale connector housing
-
25247805 Wiring harness, hoodWiring harness, hood
-
3515175656 Rectifier ass'y. Includes 3 to 6Rectifier ass'y. Includes 3 to 6
-
4278001477 Connector housingConnector housing
-
5515175568 ConnectorConnector
-
6278001478 WedgeWedge
-
720009 Washer A6,4Washer A6,4
-
833010 Elastic stop nut M6Elastic stop nut M6
-
9413707500 GreaseGrease
-
10410107300 SwitchSwitch
-
11515175281 CoverCover
-
12570013700 BootBoot
-
13410112100 NutNut
-
14572150700 Ignition blockIgnition block
-
1542019 Ignition switchIgnition switch
-
16414991700 Blank keyBlank key
-
1742026 Flush mounted socketFlush mounted socket
-
18515175797 DESS-switchDESS-switch
-
19278000508 NutNut
-
20515166900 Cap ass'yCap ass'y
-
21549459 BracketBracket
-
2240029 Hex. screw M6 x 16Hex. screw M6 x 16
-
2333200 Elastic flanged nut M6Elastic flanged nut M6
-
2435021 Drive axleDrive axle
-
2545009 Insert cableInsert cable
-
265444186 SealSeal
-
27414792102 Back up alarmBack up alarm
-
28414805101 RingRing
-
29515175909 Head lamp ass'y. Includes 32 to 35Head lamp ass'y. Includes 32 to 35
-
30410607100 CoverCover
-
31410608300 Bulp halderBulp halder
-
32410504401 Halogen bulp 60/55WHalogen bulp 60/55W
-
33517289300 R.H. Headlamp SupportR.H. Headlamp Support
-
33517289400 L.H. Headlamp SupportL.H. Headlamp Support
-
34732610072 Nut PushNut Push
-
35415100800 GrommetGrommet
-
365448100 Adjuster rodAdjuster rod
-
375448320 Locking plateLocking plate
-
38415100600 SpringSpring
-
39515175548 HandleHandle
-
405248092 BracketBracket
-
415445737 SpringSpring
-
42410109600 Pilot LampPilot Lamp
-
43410109500 Pilot LampPilot Lamp
-
445344162 Speedometer cableSpeedometer cable
-
4536005 RivetRivet
-
4620003 Washer A6,4Washer A6,4
-
4733010 Elastic stop nut M6Elastic stop nut M6
-
48605152889 SpeedometerSpeedometer
-
49517258500 WasherWasher
-
50414806500 HolderHolder
-
51414807100 O-ringO-ring
-
5233062 Elastic flanged nut M5Elastic flanged nut M5
-
5342603 ConnectorConnector
-
54410109700 Pilot LampPilot Lamp
-
55605152890 TachometerTachometer
-
56605450484 Pilot LampPilot Lamp
-
575247817 FilterFilter
-
585447818 Plastic platePlastic plate
-
59413707500 Grease, 400gGrease, 400g
-
60410504200 Instrumentation bulbInstrumentation bulb
