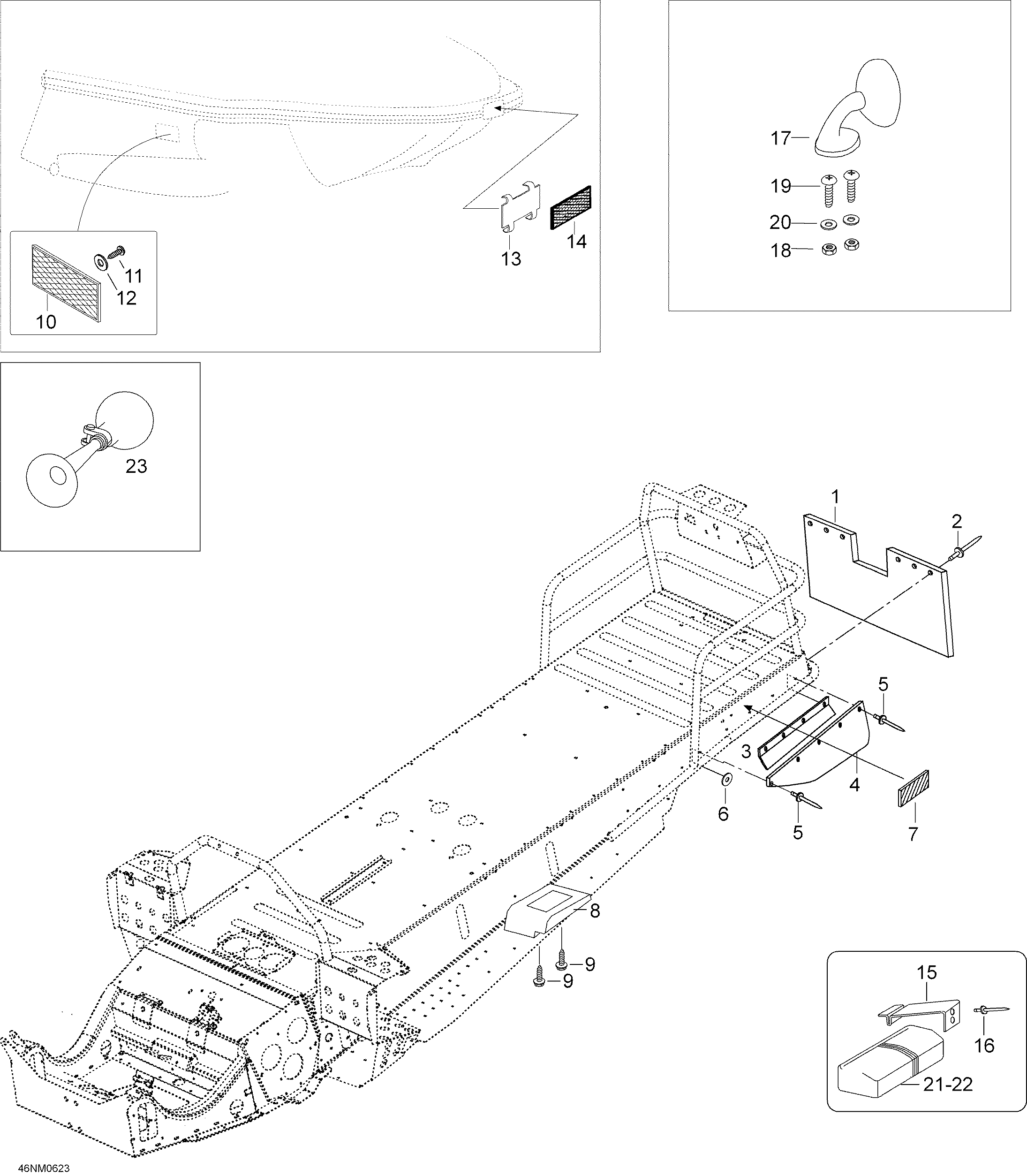

09- Utilities для BRP Lynx ST 600 - 2006
-
№АртикулНазвание
-
1535437 Snow guardSnow guard
-
236036 RivetRivet
-
35340532 SupportSupport
-
45142828 Side snowguardSide snowguard
-
536097 RivetRivet
-
620037 Washer A4,3Washer A4,3
-
721121 Reflector, yellowReflector, yellow
-
8414975300 R.H. FootrestR.H. Footrest
-
8414975400 L.H. FootrestL.H. Footrest
-
940870 Self tapping screwSelf tapping screw
-
10414510200 Reflector, AmberReflector, Amber
-
1140070 Screw M5 x 10Screw M5 x 10
-
1220018 Serrated lock washer A5,3Serrated lock washer A5,3
-
135440839 BracketBracket
-
1421060 Reflector, BrightReflector, Bright
-
155344443 Spring plateSpring plate
-
1636083 RivetRivet
-
17414971910 R.H. MirrorR.H. Mirror
-
17414972010 L.H. MirrorL.H. Mirror
-
1833008 Elastic stop nut M4Elastic stop nut M4
-
1940167 Screw M4 x 16Screw M4 x 16
-
2020001 Washer A4,3Washer A4,3
-
21605350523 Tool set. Includes 19 to 20Tool set. Includes 19 to 20
-
22572036310 Tool boxTool box
-
2321003 BollBoll
