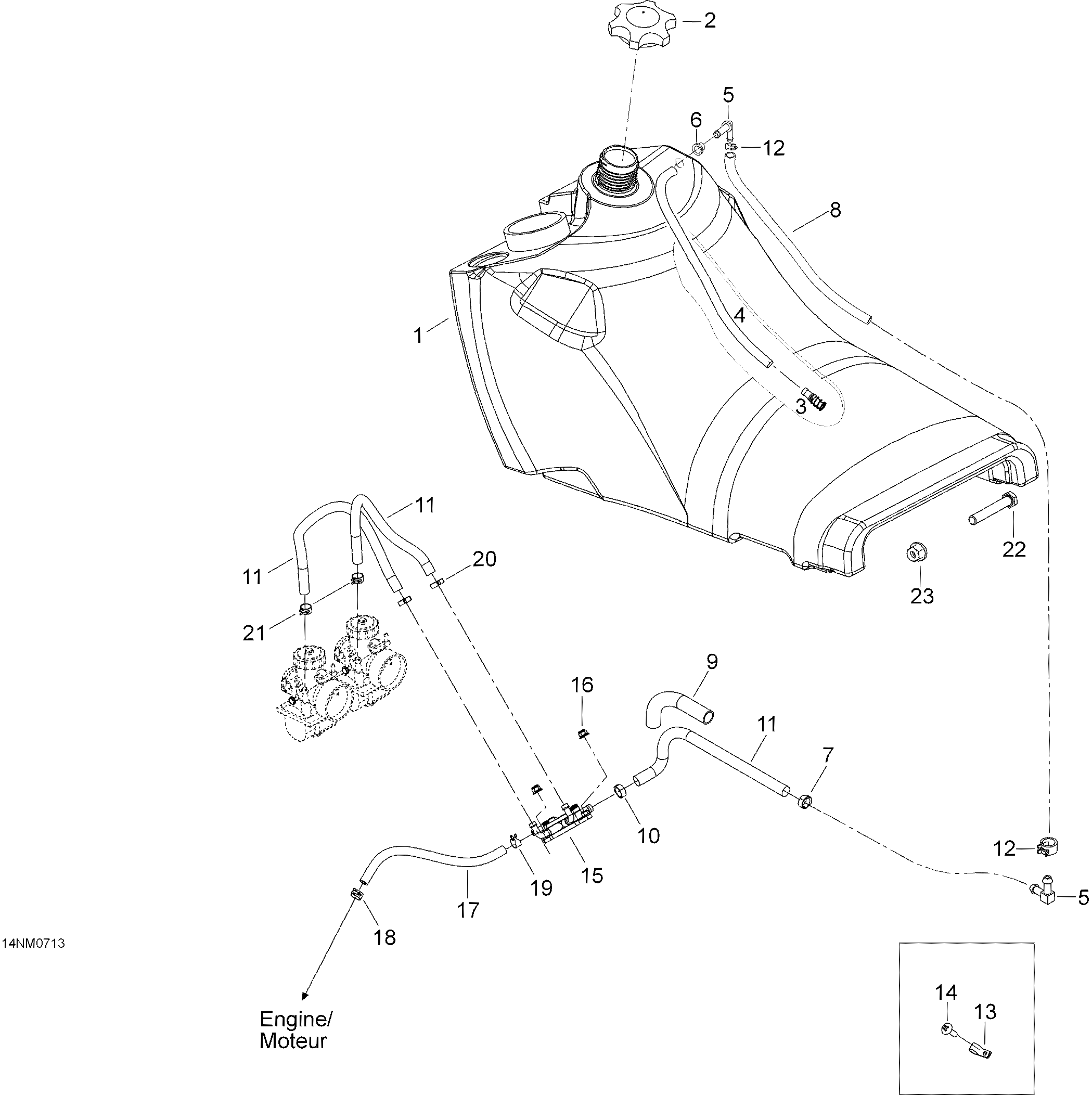

02- Fuel System для BRP Lynx Adventure LX 550 F - 2007
-
№АртикулНазвание
-
1605251348 Fuel tankFuel tank
-
2709000059 CapCap
-
3414872100 Fuel filterFuel filter
-
439048 HoseHose
-
55341709 Angle fittingAngle fitting
-
628037 GrommetGrommet
-
7605627003 ClampClamp
-
8513033027 HoseHose
-
927127 TubingTubing
-
10513032979 ClampClamp
-
11513033022 HoseHose
-
12414655700 ClampClamp
-
1327051 ClipClip
-
1440870 Self tapping screwSelf tapping screw
-
15403901813 Fuel pumpFuel pump
-
1633010 Elastic stop nut M6Elastic stop nut M6
-
1739001 HoseHose
-
18414420700 ClampClamp
-
19414415200 ClampClamp
-
20414655700 ClampClamp
-
21605627005 ClampClamp
-
2240003 Screw M6 x 35Screw M6 x 35
-
2333200 Elastic flanged nut M6, NylockElastic flanged nut M6, Nylock
