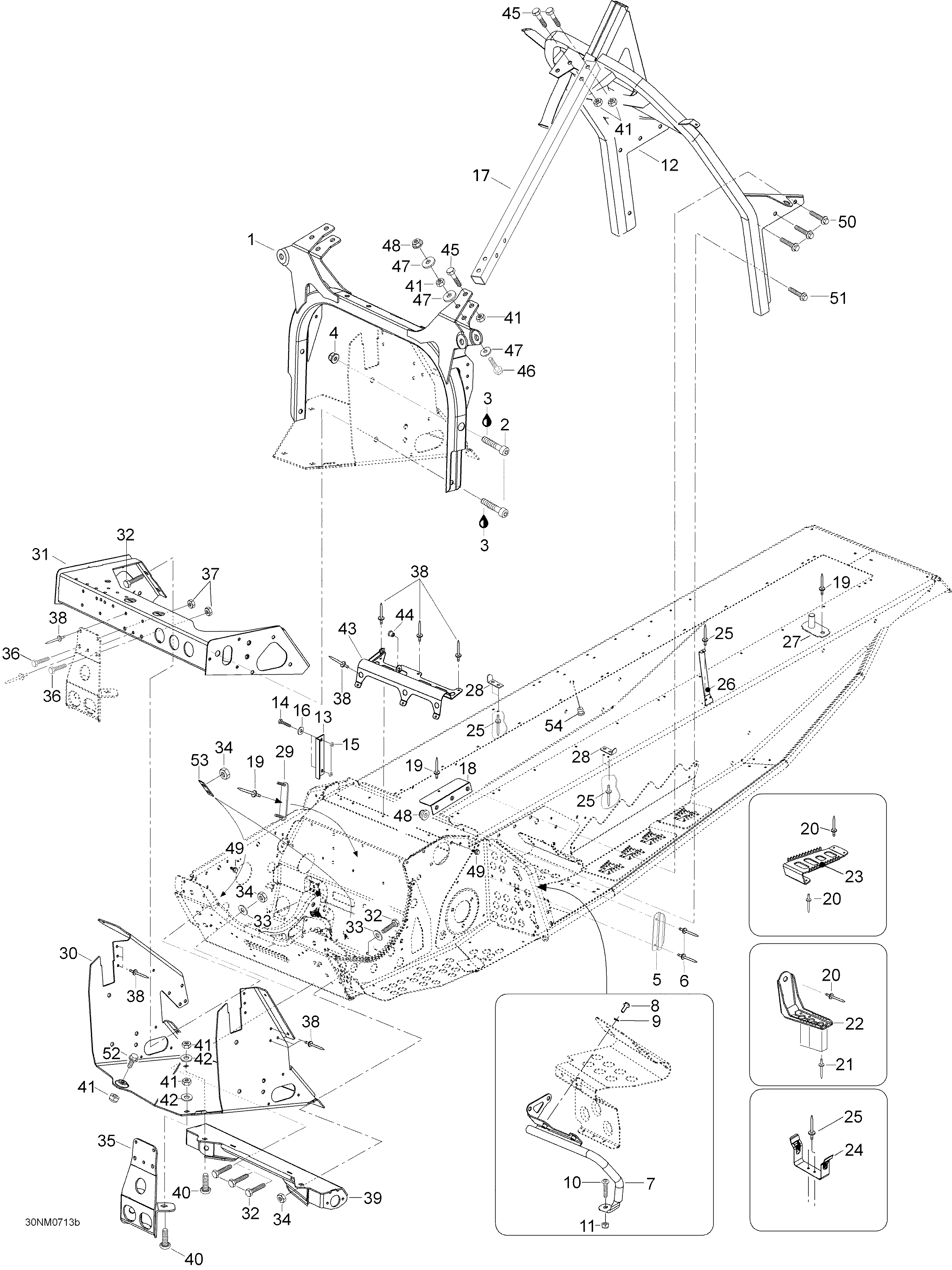

09- Frame And Components для BRP Lynx Adventure LX 550 F - 2007
-
№АртикулНазвание
-
1605253709 SupportSupport
-
240810 Socket head screw M8 x 20Socket head screw M8 x 20
-
3293800060 Liima Loctite 243 50mlLiima Loctite 243 50ml
-
433201 Elastic flanged nut M8Elastic flanged nut M8
-
5518317504 Cable protectorCable protector
-
6
-
7605351595 R.H. Toe hold supportR.H. Toe hold support
-
7605351594 L.H. Toe hold supportL.H. Toe hold support
-
840381 Socket head screw M6 x 20Socket head screw M6 x 20
-
920117 WasherWasher
-
1040399 Socket head screw M8 x 16Socket head screw M8 x 16
-
1133011 Elastic stop nut M8Elastic stop nut M8
-
12605250887 Handle supportHandle support
-
13605453552 Bracket, oil reservoirBracket, oil reservoir
-
1440030 Screw M6 x 20Screw M6 x 20
-
1533200 Elastic flanged nut M6Elastic flanged nut M6
-
1620009 Washer A6,4Washer A6,4
-
17605353547 Side barSide bar
-
18605454115 PlatePlate
-
1936108 RivetRivet
-
2036489 RivetRivet
-
21605636005 RivetRivet
-
22605353939 R.H. Side bracketR.H. Side bracket
-
22605353938 L.H. Side bracketL.H. Side bracket
-
23520000492 FotrestFotrest
-
24518322726 Belt guardBelt guard
-
2536083 RivetRivet
-
26605353558 R.H. Steel stripR.H. Steel strip
-
26605353557 L.H. Steel stripL.H. Steel strip
-
27518324384 BracketBracket
-
28605452615 Seat bracketSeat bracket
-
29518324312 Bracket, fuel pumpBracket, fuel pump
-
30605253545 Front cross memberFront cross member
-
31605353548 Front supportFront support
-
3240037 Screw M8 x 25Screw M8 x 25
-
3320010 Washer A8,4Washer A8,4
-
3433011 Elastic stop nut M8Elastic stop nut M8
-
35605253612 Support plateSupport plate
-
3640030 Screw M6 x 20Screw M6 x 20
-
3733010 Elastic stop nut M6Elastic stop nut M6
-
3836108 RivetRivet
-
39605254414 SubframeSubframe
-
4040058 Locking screw M8 x 20Locking screw M8 x 20
-
4133011 Elastic stop nut M8Elastic stop nut M8
-
4220010 Washer A8,4Washer A8,4
-
43518323532 Air intake supportAir intake support
-
4436086 Rivet nut M6Rivet nut M6
-
4540008 Screw M8 x 45Screw M8 x 45
-
4640123 Screw M8 x 70Screw M8 x 70
-
4720010 Washer A8,4Washer A8,4
-
4833000 Elastic flanged nut M8Elastic flanged nut M8
-
4940327 Screw M6 x 12Screw M6 x 12
-
50605640008 Screw M8 x 16Screw M8 x 16
-
5140336 Screw M8 x 20Screw M8 x 20
-
5240386 Screw M8 x 30Screw M8 x 30
-
53605452373 WasherWasher
-
54518321954 PlugPlug
