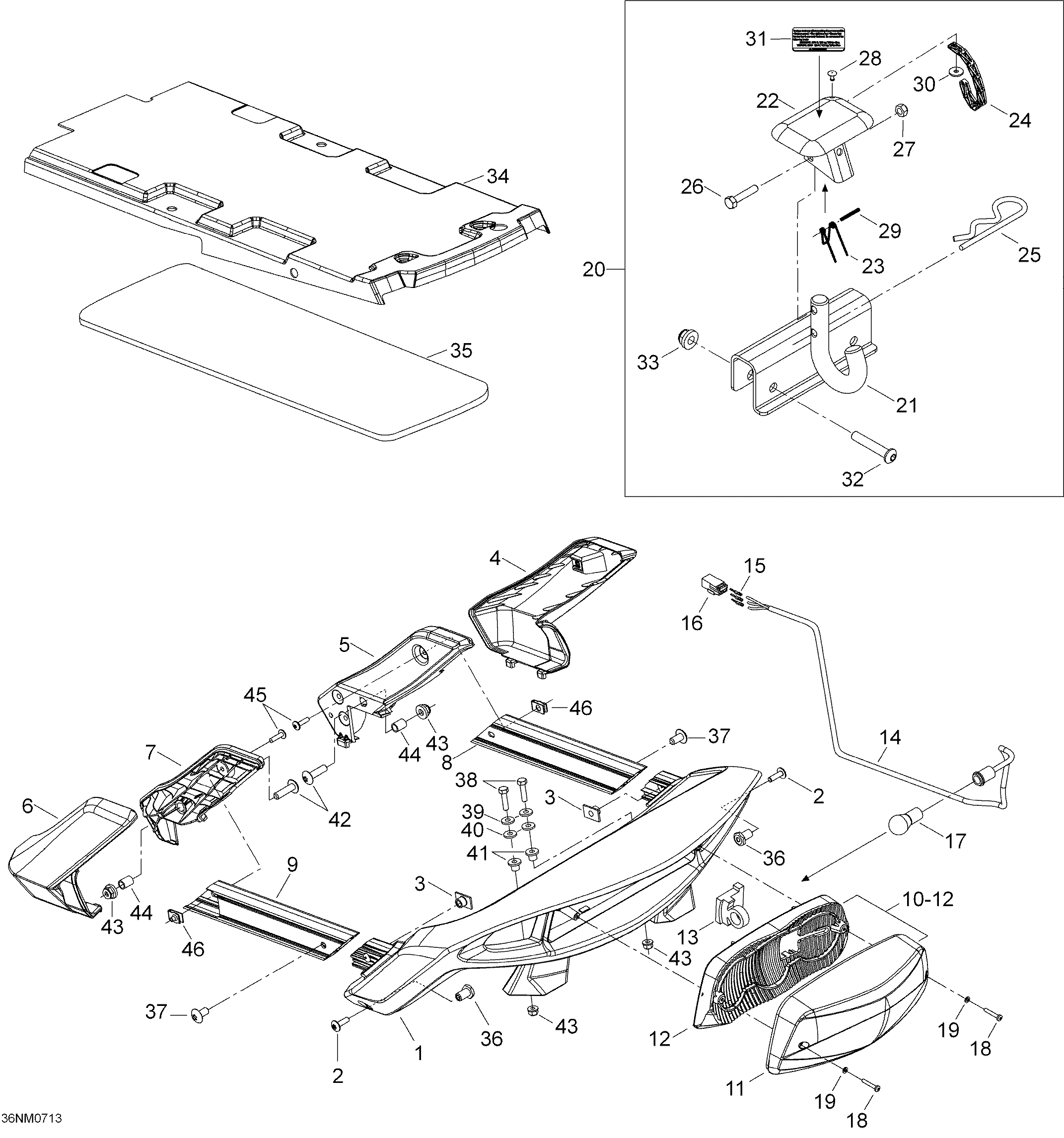

09- Luggage Rack для BRP Lynx Adventure LX 550 F - 2007
-
№АртикулНазвание
-
1511000317 Luggage rackLuggage rack
-
2250000128 Screw M6 x 20Screw M6 x 20
-
3511000341 Insert-threadInsert-thread
-
4511000322 R.H. Outside armR.H. Outside arm
-
5511000326 R.H. Inside armR.H. Inside arm
-
6511000323 L.H. Outside armL.H. Outside arm
-
7511000327 L.H. Inside armL.H. Inside arm
-
8511000321 R.H. Side barR.H. Side bar
-
9511000345 L.H. Side barL.H. Side bar
-
10861509300 Lens and reflector kit. Includes 10 to 12Lens and reflector kit. Includes 10 to 12
-
12510004442 ReflectorReflector
-
13511000431 Rubber damperRubber damper
-
14515175852 Bulp holder and wiringBulp holder and wiring
-
15605642628 Male connectorMale connector
-
1642271 Male connector housing (6 circuits)Male connector housing (6 circuits)
-
17410504000 Tail lamp bulpTail lamp bulp
-
18209632580 Screw M 3.9 x 25Screw M 3.9 x 25
-
19414516400 WasherWasher
-
21511000354 HitchHitch
-
22517152700 Hitch protectorHitch protector
-
23517152800 SpringSpring
-
25114045200 Hair pinHair pin
-
26207063044 Screw M6 x 30Screw M6 x 30
-
28390409400 RivetRivet
-
29732804000 Spring pinSpring pin
-
31516002685 Security labelSecurity label
-
3240008 Screw M8 x 45Screw M8 x 45
-
3333201 Elastic flanged nut M8Elastic flanged nut M8
-
34605352773 Radiator coverRadiator cover
-
35605354257 SupportSupport
-
36511000398 InsertInsert
-
37250000198 Torx-screw M8 x 16Torx-screw M8 x 16
-
3840393 Socket head screw M6 x 30Socket head screw M6 x 30
-
3920052 Lock washer A6Lock washer A6
-
4020117 WasherWasher
-
41511000340 Flanged bushingFlanged bushing
-
4240386 Screw M8 x 30Screw M8 x 30
-
4333201 Elastic flanged nut M8Elastic flanged nut M8
-
44511000325 BushingBushing
-
45250000130 Torx-screw M5 x 20Torx-screw M5 x 20
-
46250000079 Panel nutPanel nut
