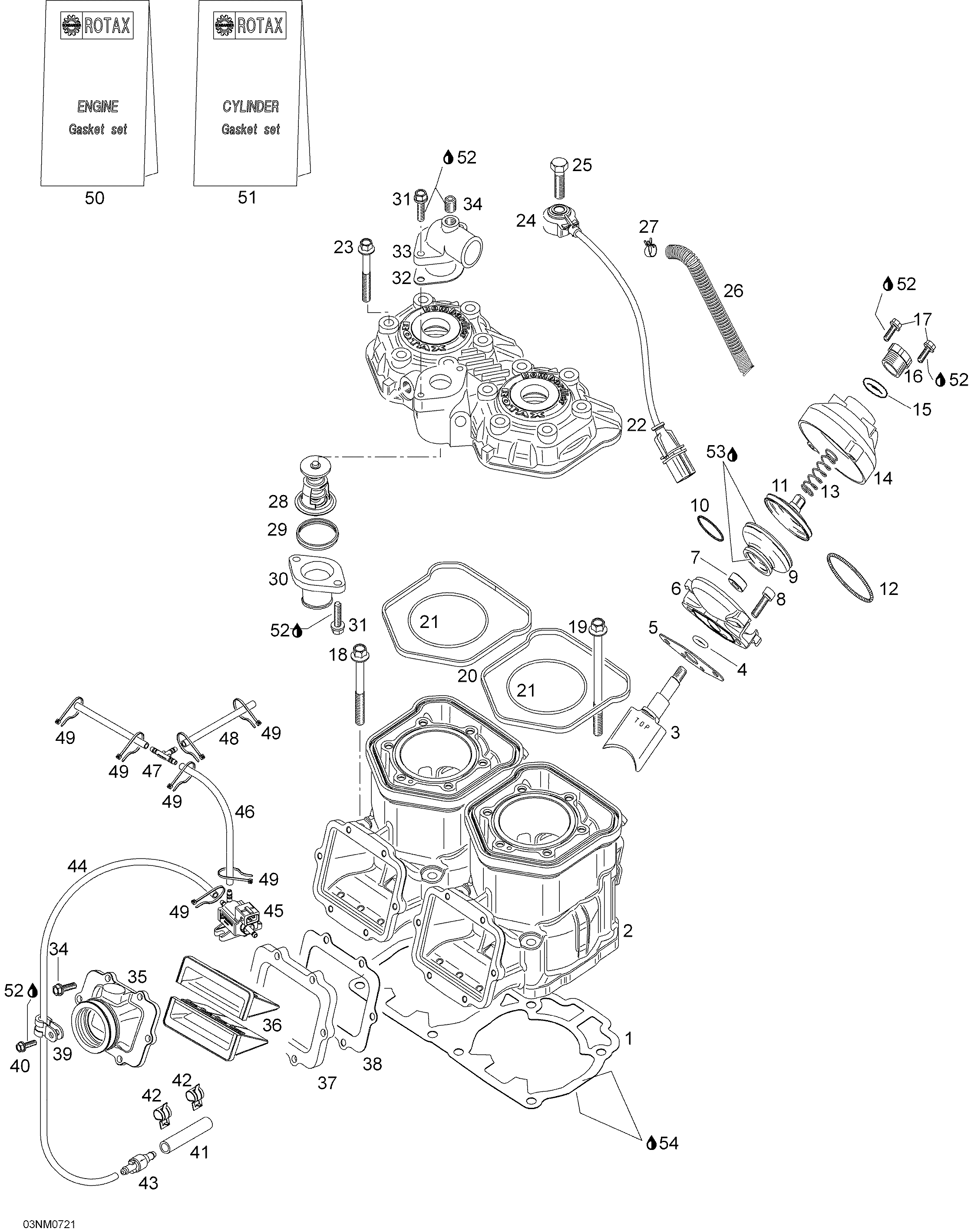

01- Cylinder And Cylinder Head для BRP Lynx Rave RC 800 HO Power TEK - 2007
-
№АртикулНазвание
-
1420931838 Gasket, double 0.5 mmGasket, double 0.5 mm
-
1420931837 Gasket, double 0.6 mmGasket, double 0.6 mm
-
1420931964 Gasket, double 0.7 mmGasket, double 0.7 mm
-
1420931839 Gasket, double 0.8 mmGasket, double 0.8 mm
-
2420613852 Cylinder, nicasilCylinder, nicasil
-
3420854465 Exhaust valveExhaust valve
-
4420430110 O-ringO-ring
-
5420931542 GasketGasket
-
6420854454 Valve rod housingValve rod housing
-
7420950730 Oil sealOil seal
-
8420840861 Allen screw M6 x 25Allen screw M6 x 25
-
9420260729 BellowsBellows
-
10420838255 Hose springHose spring
-
11420854449 Exhaust valve pistonExhaust valve piston
-
12420939280 Compression springCompression spring
-
13420239941 Spring, blueSpring, blue
-
14420911558 Valve coverValve cover
-
15420430220 O-ringO-ring
-
16420241220 Adjustment screwAdjustment screw
-
17420241270 Screw M5 x 25Screw M5 x 25
-
18420640524 Screw M10 x 80Screw M10 x 80
-
19420640534 Screw M10 x 120Screw M10 x 120
-
20420931590 Square ringSquare ring
-
21420931410 O-ringO-ring
-
22420923828 CylinderheadCylinderhead
-
23420941627 Screw M8 x 56,5Screw M8 x 56,5
-
24420664035 Knock sensorKnock sensor
-
25420940491 Hex. Screw M8 x 35Hex. Screw M8 x 35
-
26420460010 TubingTubing
-
27420960890 ClipClip
-
28420922519 ThermostatThermostat
-
29420931272 Thermostat gasketThermostat gasket
-
30420922025 Water outlet socketWater outlet socket
-
31420941250 Screw M6 x 20Screw M6 x 20
-
32420850338 GasketGasket
-
33420922062 Bent outlet socketBent outlet socket
-
34420240480 Plug screwPlug screw
-
35420667109 Intake socketIntake socket
-
36420924790 Reed valve assyReed valve assy
-
37420924820 Connecting flangeConnecting flange
-
38420630815 GasketGasket
-
39420853412 ClampClamp
-
40420641840 Screw M5 x 35Screw M5 x 35
-
41420660561 Pressure line, 50mmPressure line, 50mm
-
42420853510 ClipClip
-
43420660540 Check valveCheck valve
-
44420660574 Pressure line, 280mmPressure line, 280mm
-
45420664630 Solenoid valveSolenoid valve
-
46420660571 Pressure line, 180mmPressure line, 180mm
-
47420660550 T-fittingT-fitting
-
48420660573 Pressure line, 120mmPressure line, 120mm
-
49420866718 Tie-rapTie-rap
-
50420888741 Gasket set, engineGasket set, engine
-
51420888745 Gasket set, cylinderGasket set, cylinder
-
52293800060 Loctite 243, 10mlLoctite 243, 10ml
-
53420297906 Sealing compound, 30mlSealing compound, 30ml
-
54293800038 Loctite 518, 50mlLoctite 518, 50ml
