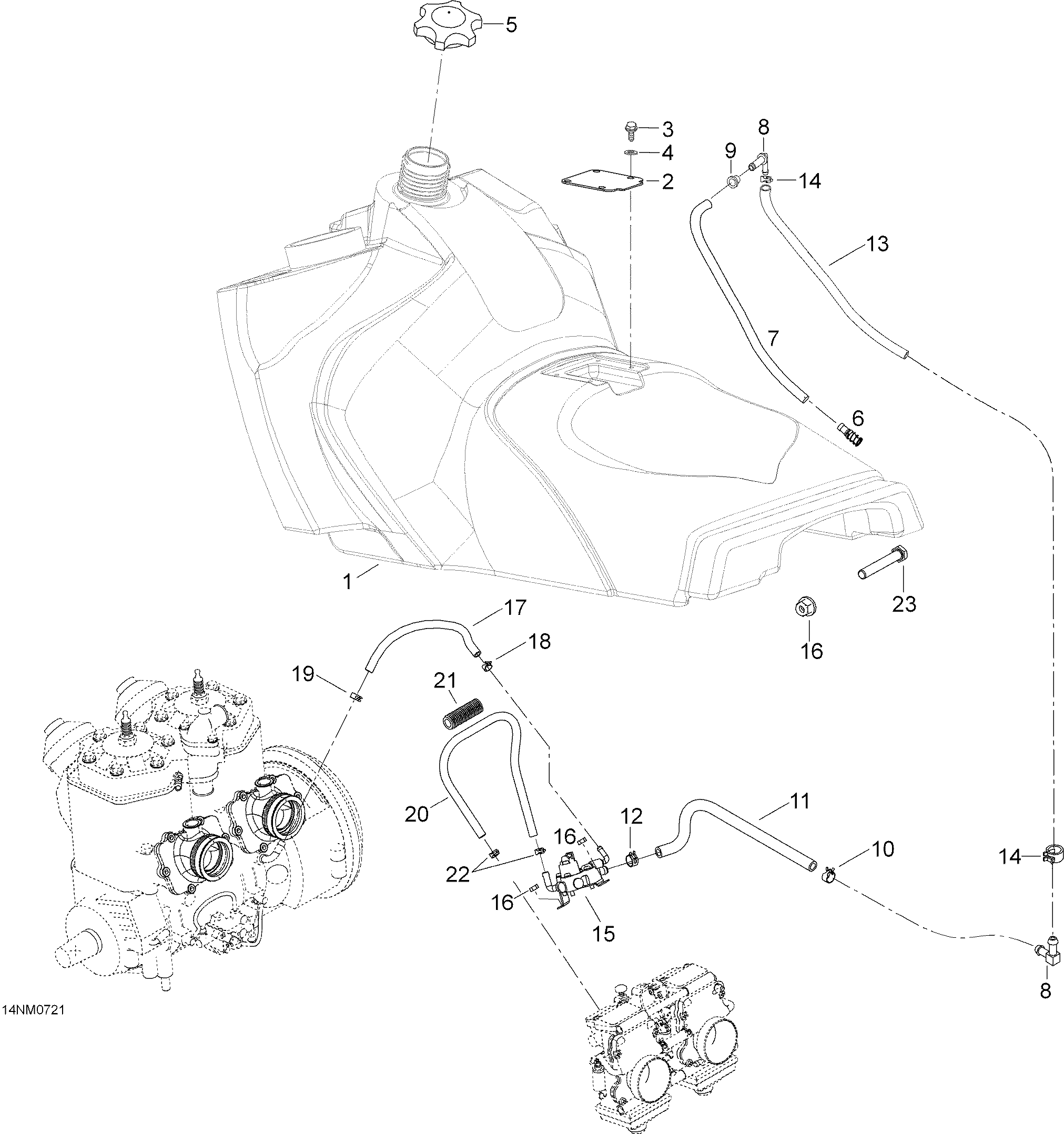

02- Fuel System для BRP Lynx Rave RC 800 HO Power TEK - 2007
-
№АртикулНазвание
-
1605253293 Fuel tankFuel tank
-
2605353106 Support palateSupport palate
-
3605640014 Socket head screw M5 x 10Socket head screw M5 x 10
-
420002 Washer A5,3Washer A5,3
-
5709000059 CapCap
-
6414872100 Fuel filterFuel filter
-
739048 HoseHose
-
85341709 Angle fittingAngle fitting
-
928037 GrommetGrommet
-
10605627003 ClampClamp
-
11513033027 HoseHose
-
12513032979 ClampClamp
-
13513033022 HoseHose
-
14414655700 ClampClamp
-
15403901811 Fuel pumpFuel pump
-
1633200 Elastic flanged nut M6Elastic flanged nut M6
-
17513033035 HoseHose
-
18414415200 ClampClamp
-
19513033029 ClampClamp
-
20415117800 HoseHose
-
2128015 TubingTubing
-
22414420700 ClampClamp
-
2340110 Screw M6 x 35Screw M6 x 35
