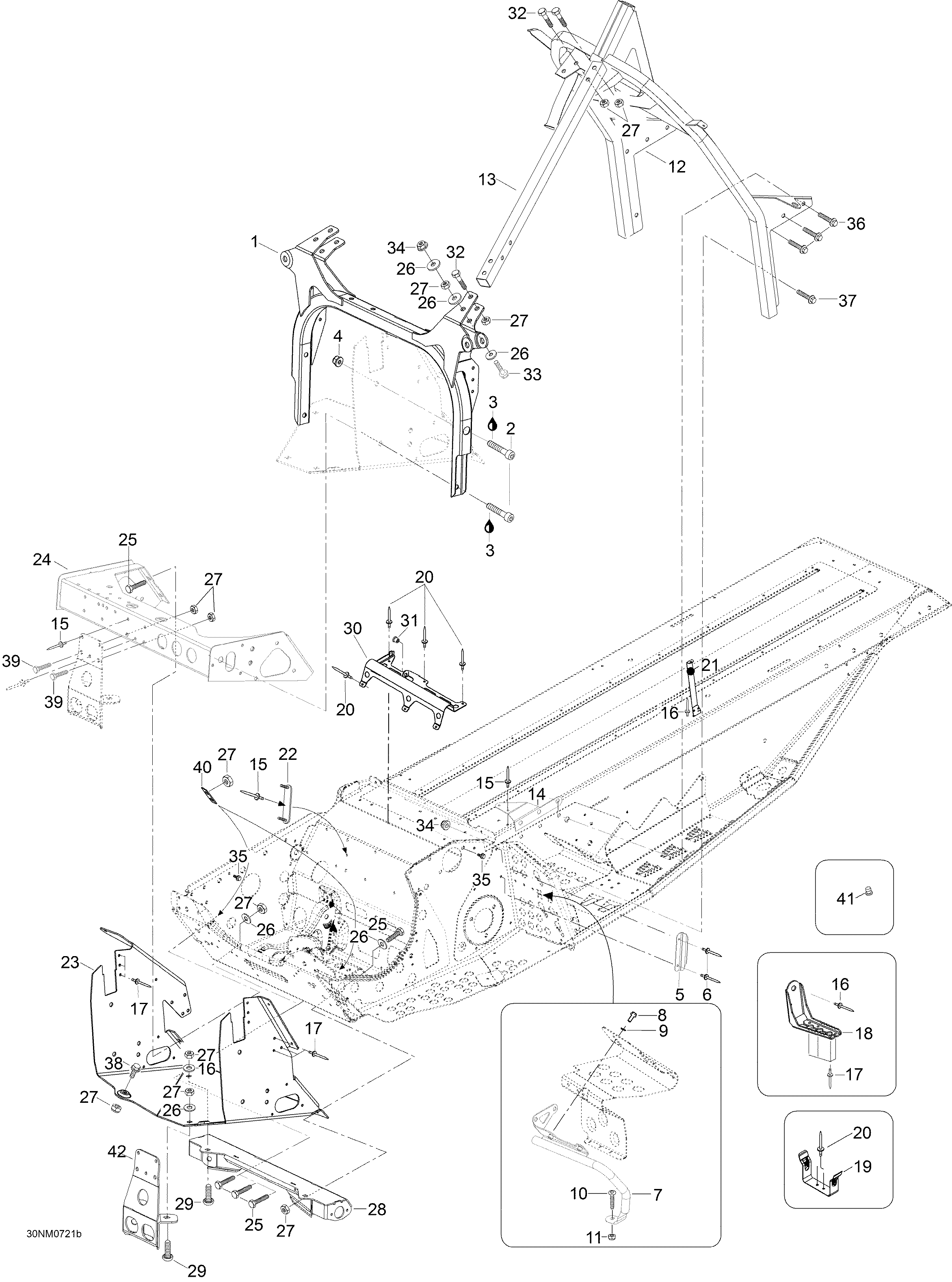

09- Frame And Components для BRP Lynx Rave RC 800 HO Power TEK - 2007
-
№АртикулНазвание
-
1605253709 SupportSupport
-
240810 Socket head screw M8 x 20Socket head screw M8 x 20
-
3293800060 Liima Loctite 243 50mlLiima Loctite 243 50ml
-
433201 Elastic flanged nut M8Elastic flanged nut M8
-
5518317504 Cable protectorCable protector
-
6
-
7605351595 R.H. Toe hold supportR.H. Toe hold support
-
7605351594 L.H. Toe hold supportL.H. Toe hold support
-
840381 Socket head screw M6 x 20Socket head screw M6 x 20
-
920117 WasherWasher
-
1040399 Socket head screw M8 x 16Socket head screw M8 x 16
-
1133011 Elastic stop nut M8Elastic stop nut M8
-
12605250887 Handle supportHandle support
-
13605353547 Side barSide bar
-
14605353555 L.H. BracketL.H. Bracket
-
14605353556 R.H. BracketR.H. Bracket
-
1536108 RivetRivet
-
1636489 RivetRivet
-
17605636005 RivetRivet
-
18605353939 R.H. Side bracketR.H. Side bracket
-
18605353938 L.H. Side bracketL.H. Side bracket
-
19518322726 PlatePlate
-
2036083 RivetRivet
-
21605351613 R.H. Steel stripR.H. Steel strip
-
21605351612 L.H. Steel stripL.H. Steel strip
-
22605451470 Bracket, fuel pumpBracket, fuel pump
-
23605253545 Front cross memberFront cross member
-
24605255143 Front supportFront support
-
2540037 Screw M8 x 25Screw M8 x 25
-
2620010 Washer A8,4Washer A8,4
-
2733011 Elastic stop nut M8Elastic stop nut M8
-
28605254414 SubframeSubframe
-
2940058 Locking screw M8 x 20Locking screw M8 x 20
-
30518323532 Air intake supportAir intake support
-
3136086 Rivet nut M6Rivet nut M6
-
3240008 Screw M8 x 45Screw M8 x 45
-
3340123 Screw M8 x 70Screw M8 x 70
-
3433201 Elastic flanged nut M8Elastic flanged nut M8
-
3540327 Screw M6 x 12Screw M6 x 12
-
36605640008 Screw M8 x 20Screw M8 x 20
-
3740336 Screw M8 x 20Screw M8 x 20
-
3840386 Screw M8 x 30Screw M8 x 30
-
3940030 Screw M6 x 20Screw M6 x 20
-
40605452373 WasherWasher
-
41518321954 PlugPlug
-
42605253612 Support plateSupport plate
