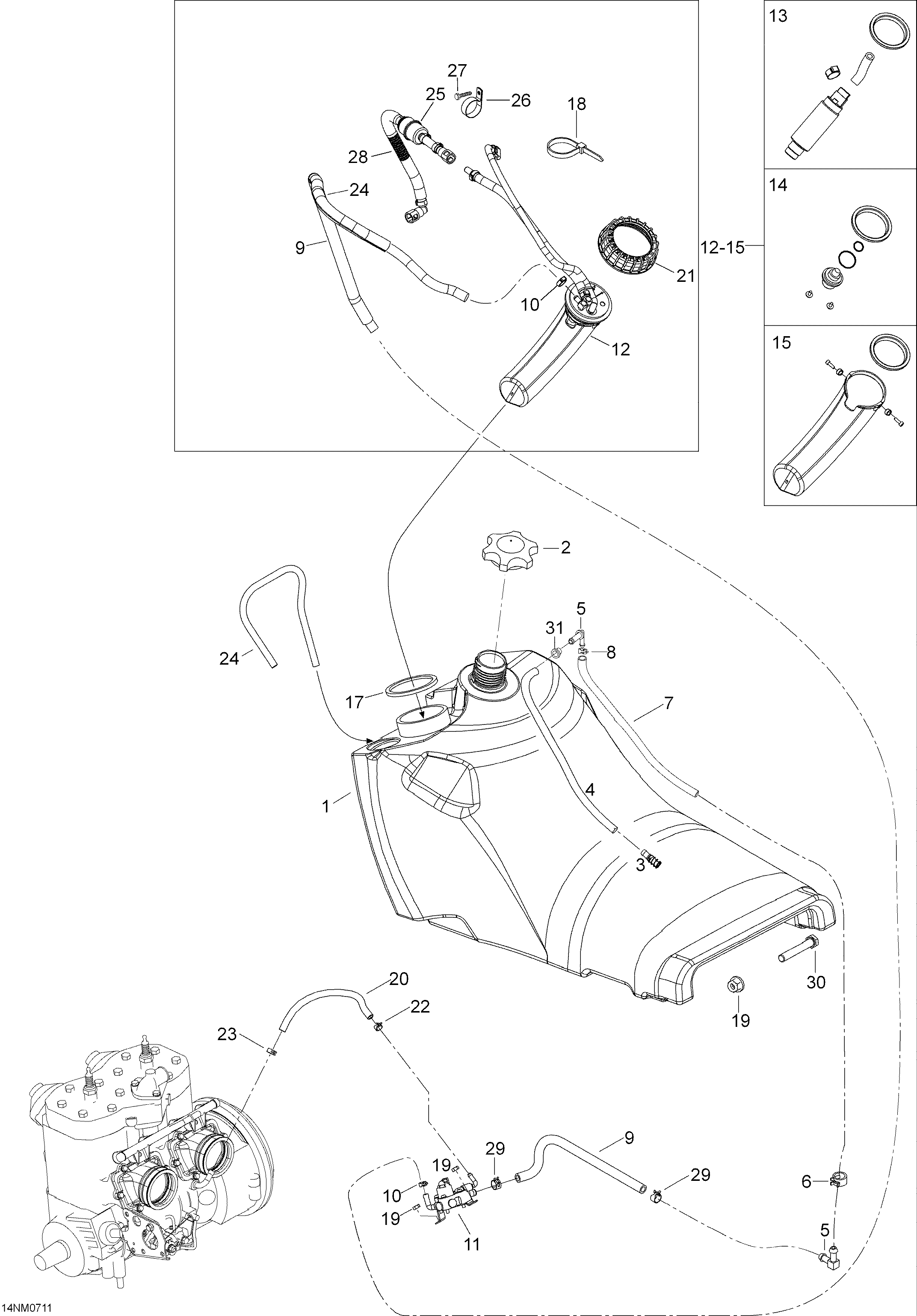

02- Fuel System для BRP Lynx Rave XT N-duro 600HO SDI - 2007
-
№АртикулНазвание
-
1605253345 Fuel tankFuel tank
-
2709000059 CapCap
-
3414872100 Fuel filterFuel filter
-
439048 HoseHose
-
55341709 Angle fittingAngle fitting
-
6605627003 ClampClamp
-
7513033027 HoseHose
-
8513032979 ClampClamp
-
9513033022 HoseHose
-
10414655700 ClampClamp
-
11403901812 Fuel pumpFuel pump
-
12513033120 Fuel pump module. Includes 12 to 15Fuel pump module. Includes 12 to 15
-
13861302700 Pump kitPump kit
-
14861302100 RegulatorRegulator
-
15861302800 Reservoir kitReservoir kit
-
17513033039 GasketGasket
-
1827026 Tie-rapTie-rap
-
1933200 Elastic flanged nut M6Elastic flanged nut M6
-
20513033035 HoseHose
-
21513033040 CoverCover
-
22414415200 ClampClamp
-
23513033029 ClampClamp
-
24415080200 HoseHose
-
25513033133 Fuel line + filterFuel line + filter
-
26513033047 ClampClamp
-
2740327 Hex, screw M6 x 12Hex, screw M6 x 12
-
2827127 TubingTubing
-
29414420700 ClampClamp
-
3040031 Hex, screw M6 x 25Hex, screw M6 x 25
-
3128037 GrommetGrommet
