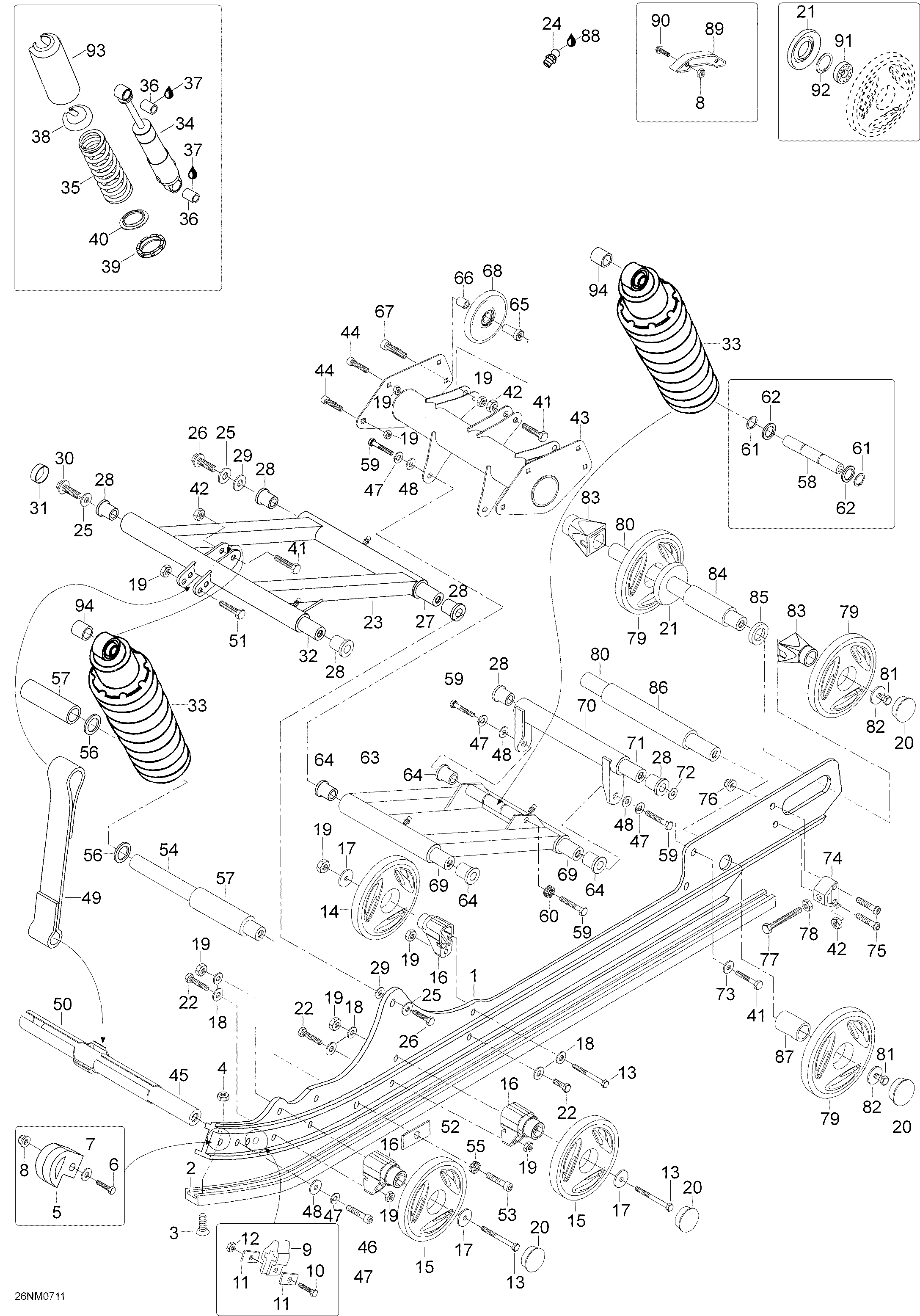

08- Rear Suspension для BRP Lynx Rave XT N-duro 600HO SDI - 2007
-
№АртикулНазвание
-
1605253361 RunnerRunner
-
2605353362 ShoeShoe
-
340059 Socket head screw M6 x 60Socket head screw M6 x 60
-
433010 Elastic stop nut M6Elastic stop nut M6
-
5605348954 Runner protectorRunner protector
-
640031 Hex. screw M6 x 25Hex. screw M6 x 25
-
720003 Washer A6,4Washer A6,4
-
833200 Elastic flanged nut M6Elastic flanged nut M6
-
95442328 Rubber stopperRubber stopper
-
1040032 Hex. screw M6 x 30Hex. screw M6 x 30
-
11548470 WasherWasher
-
1233010 Elastic stop nut M6Elastic stop nut M6
-
1340089 Hex. screw M8 x 75Hex. screw M8 x 75
-
14503191316 Idler wheel, (141)Idler wheel, (141)
-
15503191313 Idler wheel, (141)Idler wheel, (141)
-
16605451906 SupportSupport
-
17211200041 Washer 8mmWasher 8mm
-
1820104 Washer, hardened 8mmWasher, hardened 8mm
-
1933011 Elastic stop nut M8Elastic stop nut M8
-
20570063600 ProtectorProtector
-
21503190434 Labyrinth sealLabyrinth seal
-
2240037 Hex. screw M8 x 25Hex. screw M8 x 25
-
235145588 Front armFront arm
-
2434011 Grease nippleGrease nipple
-
2520090 WasherWasher
-
2640099 Hex. screw M12 x 45Hex. screw M12 x 45
-
27605352383 ShaftShaft
-
2831024 CushionCushion
-
2920040 WasherWasher
-
3040243 Hex. screw M12 x 60Hex. screw M12 x 60
-
315448025 CapCap
-
325346135 ShaftShaft
-
33605352721 Shock ass'y, front arm. Includes 33 to 40Shock ass'y, front arm. Includes 33 to 40
-
33605353523 Shock ass'y, rear arm. Includes 33 to 40Shock ass'y, rear arm. Includes 33 to 40
-
3423223 Shock, front armShock, front arm
-
34605623005 Shock, rear armShock, rear arm
-
3525073 Spring, front armSpring, front arm
-
3525076 Spring, rear armSpring, rear arm
-
3631094 CushionCushion
-
37320006 Loctite 641, 50mlLoctite 641, 50ml
-
385346750 Spring stopperSpring stopper
-
39230048 CamCam
-
40230049 Spring guideSpring guide
-
4140016 Hex. screw M10 x 45Hex. screw M10 x 45
-
4233012 Elastic stop nut M10Elastic stop nut M10
-
43605253615 Upper armUpper arm
-
4440351 Socket head screw M8 x 20Socket head screw M8 x 20
-
455343471 ShaftShaft
-
4640134 Socket head screw M10 x 45Socket head screw M10 x 45
-
4720047 Lock washer 10mmLock washer 10mm
-
4820105 Washer, hardened, 10mmWasher, hardened, 10mm
-
49605449385 Stopper strapStopper strap
-
50605349381 LimiterLimiter
-
5140008 Hex. screw M8 x 45Hex. screw M8 x 45
-
52605449294 Support plateSupport plate
-
5340371 Socket head screw M12 x 55Socket head screw M12 x 55
-
54605350690 ShaftShaft
-
5520074 Lock washer 12mmLock washer 12mm
-
5631013 ShimShim
-
57605349896 SleeveSleeve
-
58605451897 ShaftShaft
-
5940014 Hex. screw M10 x 40Hex. screw M10 x 40
-
6020068 Lock washer 10mmLock washer 10mm
-
6131007 CirclipCirclip
-
6231091 ShimShim
-
63605349313 Rear armRear arm
-
6431027 CushionCushion
-
655447945 SleeveSleeve
-
665447946 SleeveSleeve
-
67605640006 Socket head screw M8 x 90Socket head screw M8 x 90
-
6846027 Idler wheelIdler wheel
-
695346865 ShaftShaft
-
705345535 Rear armRear arm
-
715346900 ShaftShaft
-
7220116 WasherWasher
-
73512056700 Lock washerLock washer
-
745341633 TensionerTensioner
-
7540392 Socket head screw M8 x 45Socket head screw M8 x 45
-
7633201 Elastic flanged nut M8Elastic flanged nut M8
-
7740239 Hex. screw M10 x 100Hex. screw M10 x 100
-
7833004 Nut M10Nut M10
-
79503191110 Idler fheel 165/Full MoonIdler fheel 165/Full Moon
-
80503190429 ShaftShaft
-
8140050 Hex. screw M10 x 35Hex. screw M10 x 35
-
82503190439 WasherWasher
-
83503190428 SleeveSleeve
-
84503190430 SleeveSleeve
-
85503190432 SleeveSleeve
-
86605353255 SleeveSleeve
-
87605353256 SleeveSleeve
-
88293550033 Synthetic greaseSynthetic grease
-
895343191 Slide partSlide part
-
9040064 Locking screw M6 x 40Locking screw M6 x 40
-
91503190795 Ball bearingBall bearing
-
92371901700 CirclipCirclip
-
935346754 ProtectorProtector
-
945446652 SleeveSleeve
