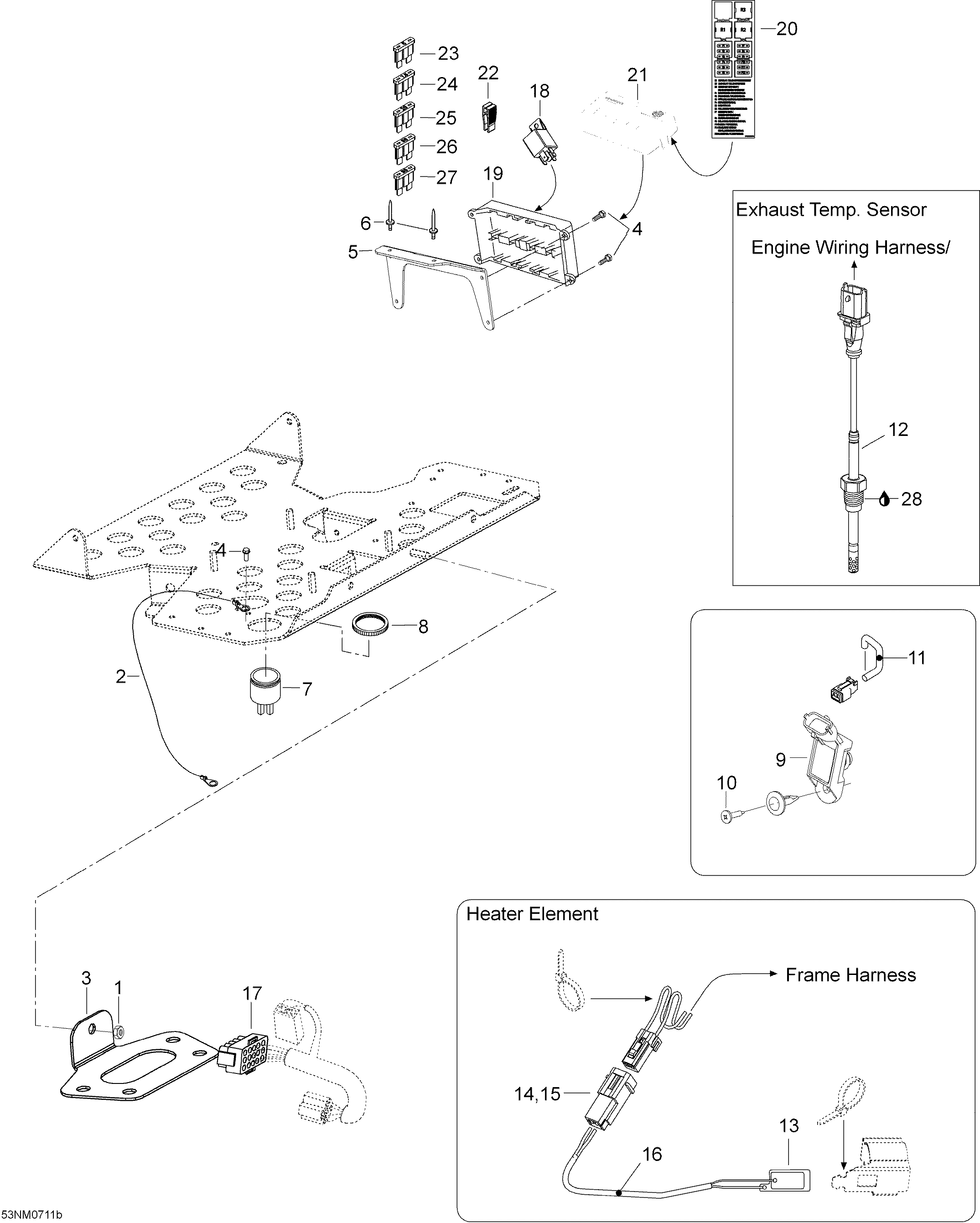

10- Electrical Accessories для BRP Lynx Rave XT N-duro 600HO SDI - 2007
-
№АртикулНазвание
-
133010 Elastic stop nut M6Elastic stop nut M6
-
2605153857 Ground wireGround wire
-
3605454122 SupportSupport
-
4210251680 Screw M5 x 16Screw M5 x 16
-
5605352413 Support, fuse housingSupport, fuse housing
-
636489 RivetRivet
-
7515176035 HornHorn
-
8414805101 Ring nutRing nut
-
9420274055 Pressure sensorPressure sensor
-
10414745900 Phillips-screwPhillips-screw
-
1139023 TubingTubing
-
12515176490 Temperature sensorTemperature sensor
-
13515176256 Heater elementHeater element
-
14515175654 Male terminal housing (2 circuits)Male terminal housing (2 circuits)
-
15515175232 Male terminalMale terminal
-
1642066 TubingTubing
-
1742617 Male housingMale housing
-
18410113604 RelayRelay
-
19515176065 Fuse boxFuse box
-
20605452667 DecalDecal
-
21515176066 CoverCover
-
22515175811 ToolTool
-
2342040 Fuse 5AFuse 5A
-
2442041 Fuse 7.55AFuse 7.55A
-
2542045 Fuse 15AFuse 15A
-
2642042 Fuse 20AFuse 20A
-
2742043 Fuse 30AFuse 30A
-
28293800070 Loctite 767, 8ozLoctite 767, 8oz
