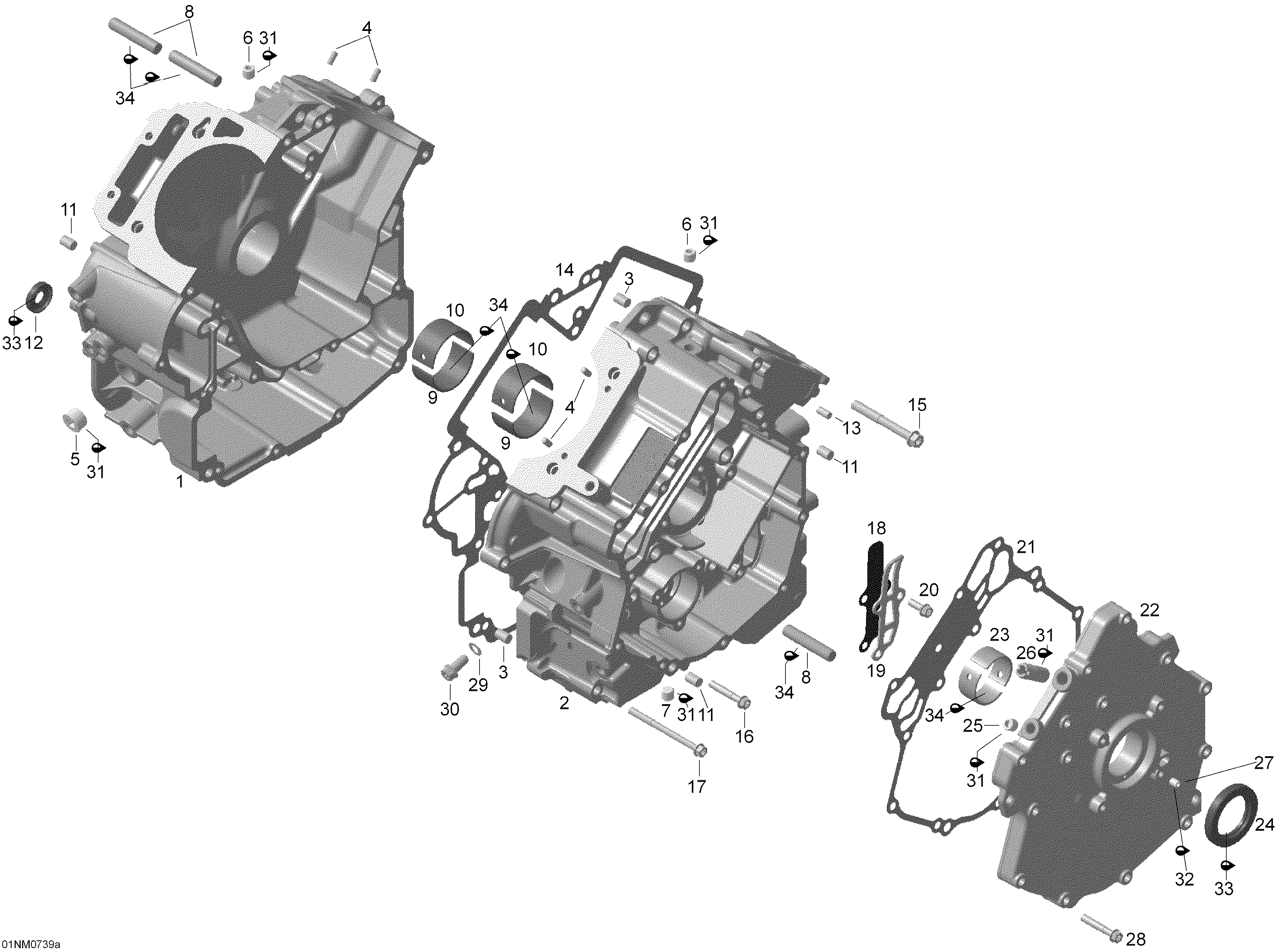

01- Crankcase для BRP Lynx YETI PRO V-800 RUS - 2007
-
№АртикулНазвание
-
-420684558 Crankcase ass'y. Includes 1 to 13Crankcase ass'y. Includes 1 to 13
-
3420632010 PinPin
-
4420929650 PinPin
-
5420240170 PlugPlug
-
6420641323 PlugPlug
-
7420840651 PlugPlug
-
8420229301 PinPin
-
9420233960 Bearing sleeveBearing sleeve
-
10420233965 Bearing sleeveBearing sleeve
-
11420632010 PinPin
-
12420650310 Oil sealOil seal
-
13420932780 PinPin
-
14420651220 GasketGasket
-
15420440402 Hex. screw M8 x 65Hex. screw M8 x 65
-
16420440277 Hex. screw M6 x 35Hex. screw M6 x 35
-
17420440652 Hex. screw M6 x 75Hex. screw M6 x 75
-
18420224720 Valve plateValve plate
-
19420224725 Reed valve stopReed valve stop
-
20420440167 Hex. screw M6 x 16Hex. screw M6 x 16
-
21420651210 GasketGasket
-
22420611147 PTO Cover ass'y. Includes 22 to 27PTO Cover ass'y. Includes 22 to 27
-
23420233995 Bearing halfBearing half
-
24420631932 Oil sealOil seal
-
25420641323 PlugPlug
-
26420256332 Hose nippleHose nipple
-
27420841771 Screw set M6 x 8Screw set M6 x 8
-
28420440277 Hex. screw M6 x 35Hex. screw M6 x 35
-
29420950141 Sealing ringSealing ring
-
30420440852 Hex. screw M8 x 16Hex. screw M8 x 16
-
31293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
32420899788 Loctite 648, 5gLoctite 648, 5g
-
33293550014 Grease, super lubeGrease, super lube
-
34293600054 Engine oil 4 strokes, 0W40, 12 x 1 literEngine oil 4 strokes, 0W40, 12 x 1 liter
