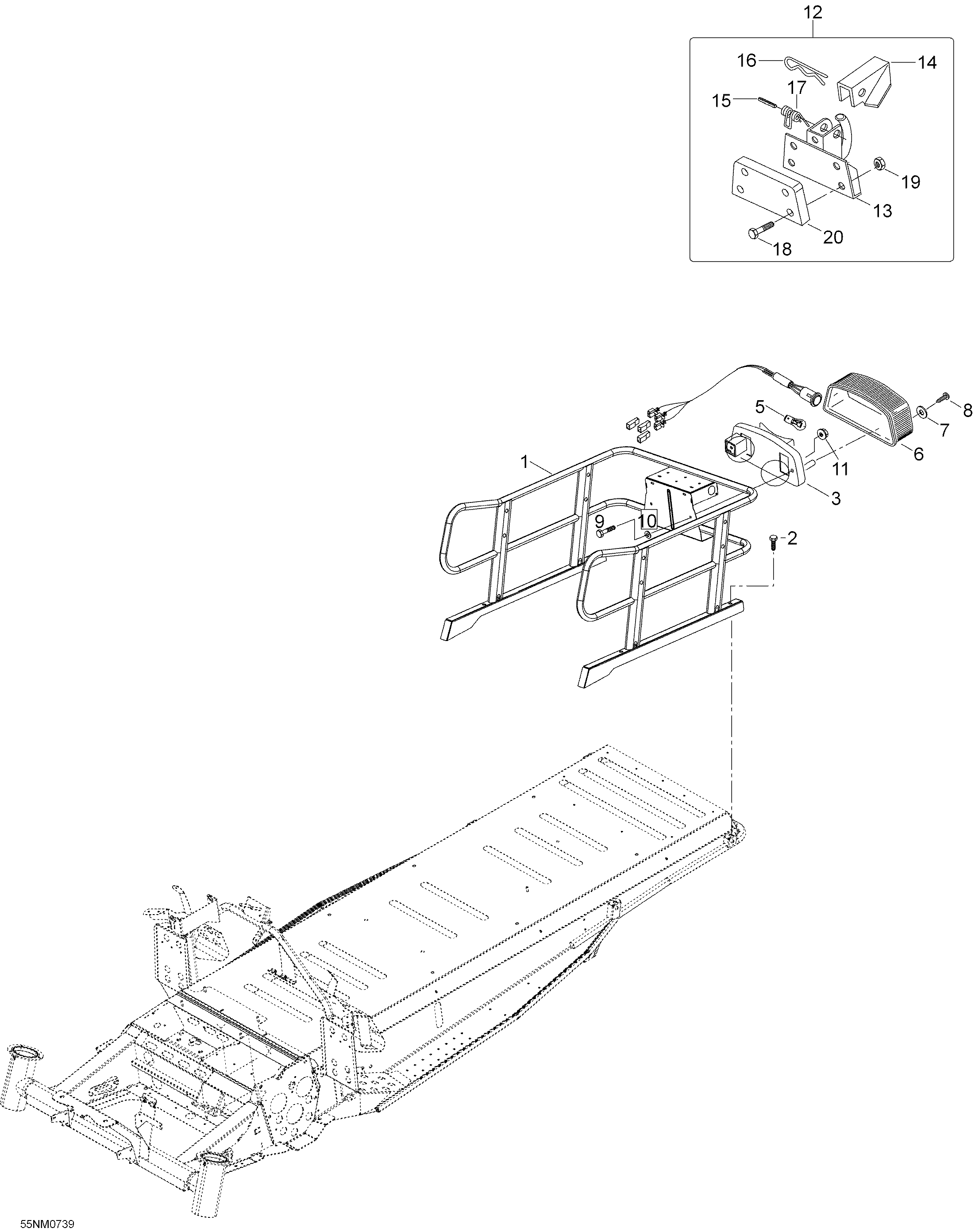

09- Rack для BRP Lynx YETI PRO V-800 RUS - 2007
-
№АртикулНазвание
-
1605255117 Rack. Includes 1 to 4Rack. Includes 1 to 4
-
240336 Screw M8 x 20Screw M8 x 20
-
3515175397 Tail lamp housingTail lamp housing
-
4605351510 ExtensionExtension
-
5410504000 BulpBulp
-
6414513700 LensLens
-
7414516400 WasherWasher
-
8414516300 ScrewScrew
-
940064 Locking screw M6 x 40Locking screw M6 x 40
-
1020077 Washer A8.4Washer A8.4
-
1133200 Elastic flanged nut M6, NylockElastic flanged nut M6, Nylock
-
125344156 Hitch Assy. Includes 12 to 18Hitch Assy. Includes 12 to 18
-
135344208 Hitch WeldHitch Weld
-
145440767 LockLock
-
1541012 Spring PinSpring Pin
-
1641029 Needle PinNeedle Pin
-
17545693 SpringSpring
-
1840009 Hex. screw M8 x 50Hex. screw M8 x 50
-
1933011 Elastic stop nut M8Elastic stop nut M8
-
20605351510 SpacerSpacer
