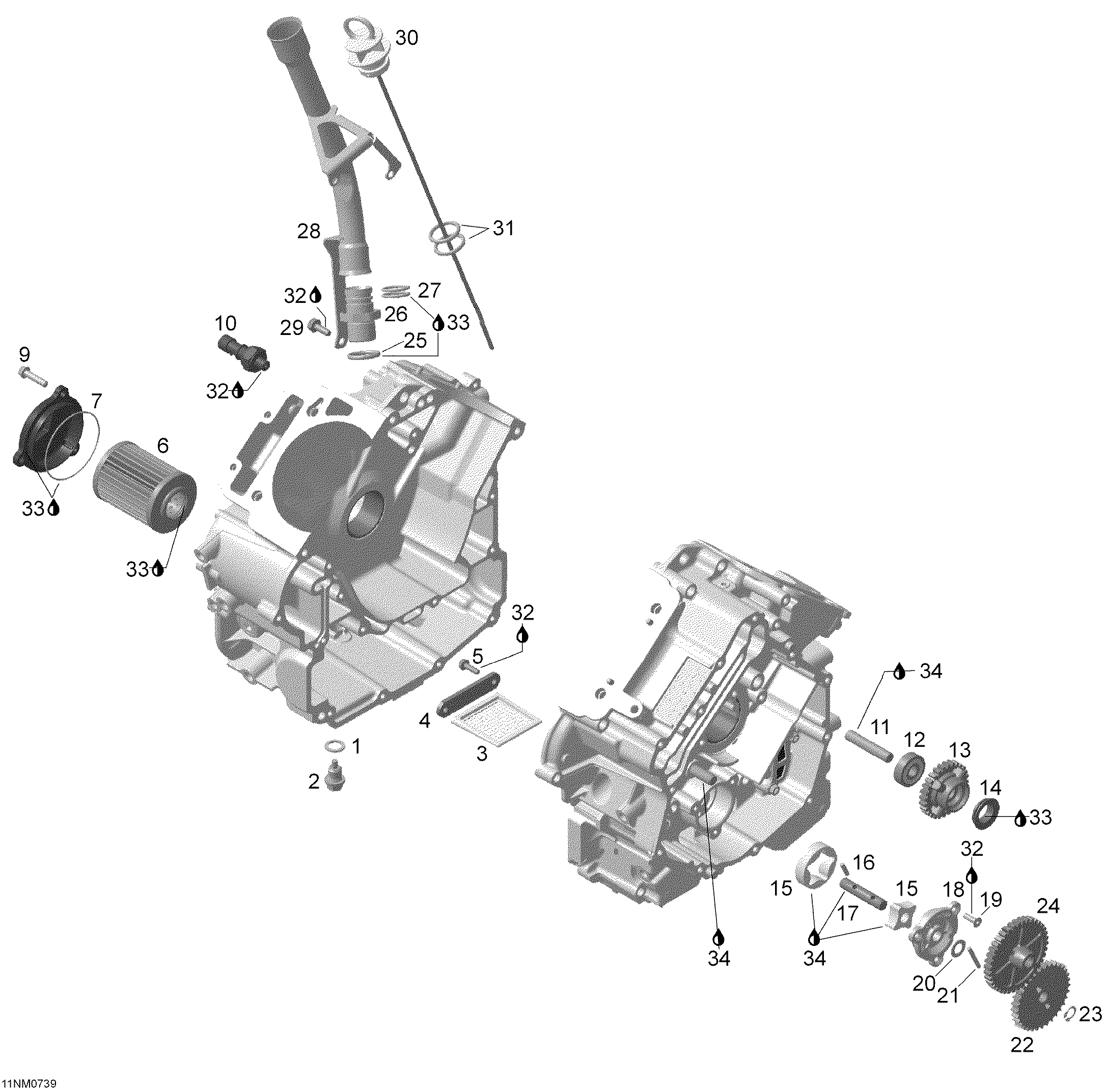

02- Lubrication And Oil Pump для BRP Lynx YETI PRO V-800 RUS - 2007
-
№АртикулНазвание
-
1420250640 Sealing ringSealing ring
-
2420241786 Magnetic drain plugMagnetic drain plug
-
3420256321 Oil sieveOil sieve
-
4420210661 Sieve coverSieve cover
-
5420941925 Taptite screw M5 x 16Taptite screw M5 x 16
-
6420256188 FilterFilter
-
7420230920 O-ringO-ring
-
8420210418 Oil filter coverOil filter cover
-
9420440237 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
10420256773 Oil pressure switchOil pressure switch
-
-420434305 Breather gear ass'y. Includes 11 to 14Breather gear ass'y. Includes 11 to 14
-
14420630125 RingRing
-
15420256347 Inner and outer rotorInner and outer rotor
-
16420232730 Needle pinNeedle pin
-
17420237059 Oil pump shaftOil pump shaft
-
18420210640 Oil pump coverOil pump cover
-
19420640821 Screw M5 x 16Screw M5 x 16
-
20420827590 WasherWasher
-
21420232430 Needle pinNeedle pin
-
22420434320 Oil pump (33 T)Oil pump (33 T)
-
23420245330 WasherWasher
-
24420434300 Intermediate gear (38 T)Intermediate gear (38 T)
-
25420631640 O-ringO-ring
-
26420856610 AdaptorAdaptor
-
27420430370 O-ringO-ring
-
28420856920 Oil level tubeOil level tube
-
29420240385 Taptite-screw M6 x 12Taptite-screw M6 x 12
-
30420956935 Oil level gauge. Includes 30 to 31Oil level gauge. Includes 30 to 31
-
31420631640 O-ringO-ring
-
32293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
33293550014 Grease, super lubeGrease, super lube
-
34420929650 Engine oil, 0W40, 12 x 1 literEngine oil, 0W40, 12 x 1 liter
