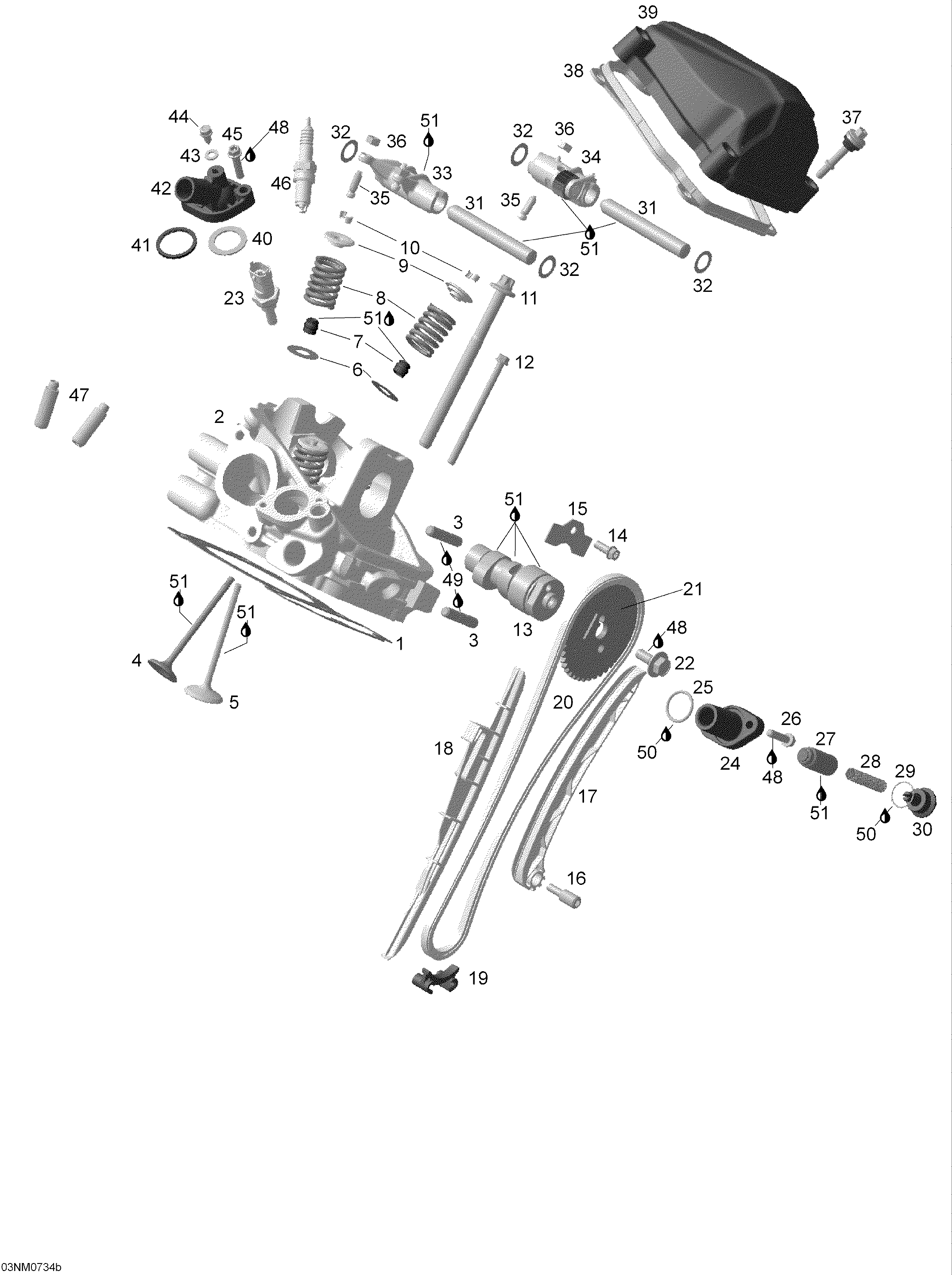

01- Cylinder Head Rear для BRP Lynx YETI SUV V-800 - 2007
-
№АртикулНазвание
-
1420630195 Cylinder head gasketCylinder head gasket
-
2420613530 Cylinder head ass’y. Includes 2 to 3Cylinder head ass’y. Includes 2 to 3
-
3420941014 Drive pin 5 x 10Drive pin 5 x 10
-
4420254351 Intake valve (31 mm)Intake valve (31 mm)
-
5420254361 Exhaust valve (27 mm)Exhaust valve (27 mm)
-
6420627770 Thrust washerThrust washer
-
7420230515 Valve stem sealValve stem seal
-
8420239295 Valve springValve spring
-
9420254132 Valve spring retainerValve spring retainer
-
10420254120 Valve cotterValve cotter
-
11420641550 Torx-screw M10 x 140Torx-screw M10 x 140
-
12420440347 Screw M6 x 85Screw M6 x 85
-
13420620016 CamshaftCamshaft
-
14420440167 Screw M6 x 16Screw M6 x 16
-
15420627742 Holding stripHolding strip
-
16420240942 Bearing screwBearing screw
-
17420236574 Chain tension guideChain tension guide
-
18420236581 Chain tensionChain tension
-
19420236350 Chain tensionChain tension
-
20420297060 Camshaft chainCamshaft chain
-
21420254432 Steering wheelSteering wheel
-
22420241721 Hex. screw M8 x 20Hex. screw M8 x 20
-
23420222425 Temperature sensorTemperature sensor
-
24420236510 Chain tensioner housingChain tensioner housing
-
25420430370 O-ringO-ring
-
26420440237 Hex. screw M6 x 25Hex. screw M6 x 25
-
27420236520 Chain tension plungerChain tension plunger
-
28420238120 SpringSpring
-
29420250890 O-ringO-ring
-
30420641150 Plug screwPlug screw
-
31420229711 PinPin
-
32420944382 ShimShim
-
33420254406 Rockerarm ass’y (inlet)Rockerarm ass’y (inlet)
-
34420254416 Rockerarm ass’y (exhaust)Rockerarm ass’y (exhaust)
-
35420241335 Adjusting screw M6 x 0,75Adjusting screw M6 x 0,75
-
36420242910 Nut M6Nut M6
-
37420440567 Screw distance M6 x 30,5Screw distance M6 x 30,5
-
38420630260 GasketGasket
-
39420610390 Valve coverValve cover
-
40420927837 Spacer with gasket. Includes 40 to 41Spacer with gasket. Includes 40 to 41
-
41420650300 Thermostat gasketThermostat gasket
-
42420222690 Thermostat coverThermostat cover
-
43420650255 Sealing ringSealing ring
-
44420941950 ScrewScrew
-
45420440237 Hex. screw M6 x 25Hex. screw M6 x 25
-
46420297940 Spark plug 12Spark plug 12
-
47420254370 Valve guideValve guide
-
48293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
49420899788 Loctite 648, 5gLoctite 648, 5g
-
50293550014 Grease, super lubeGrease, super lube
-
51293600054 Engine oil 4 strokes, 0 W 40, 12 x 1 literEngine oil 4 strokes, 0 W 40, 12 x 1 liter
