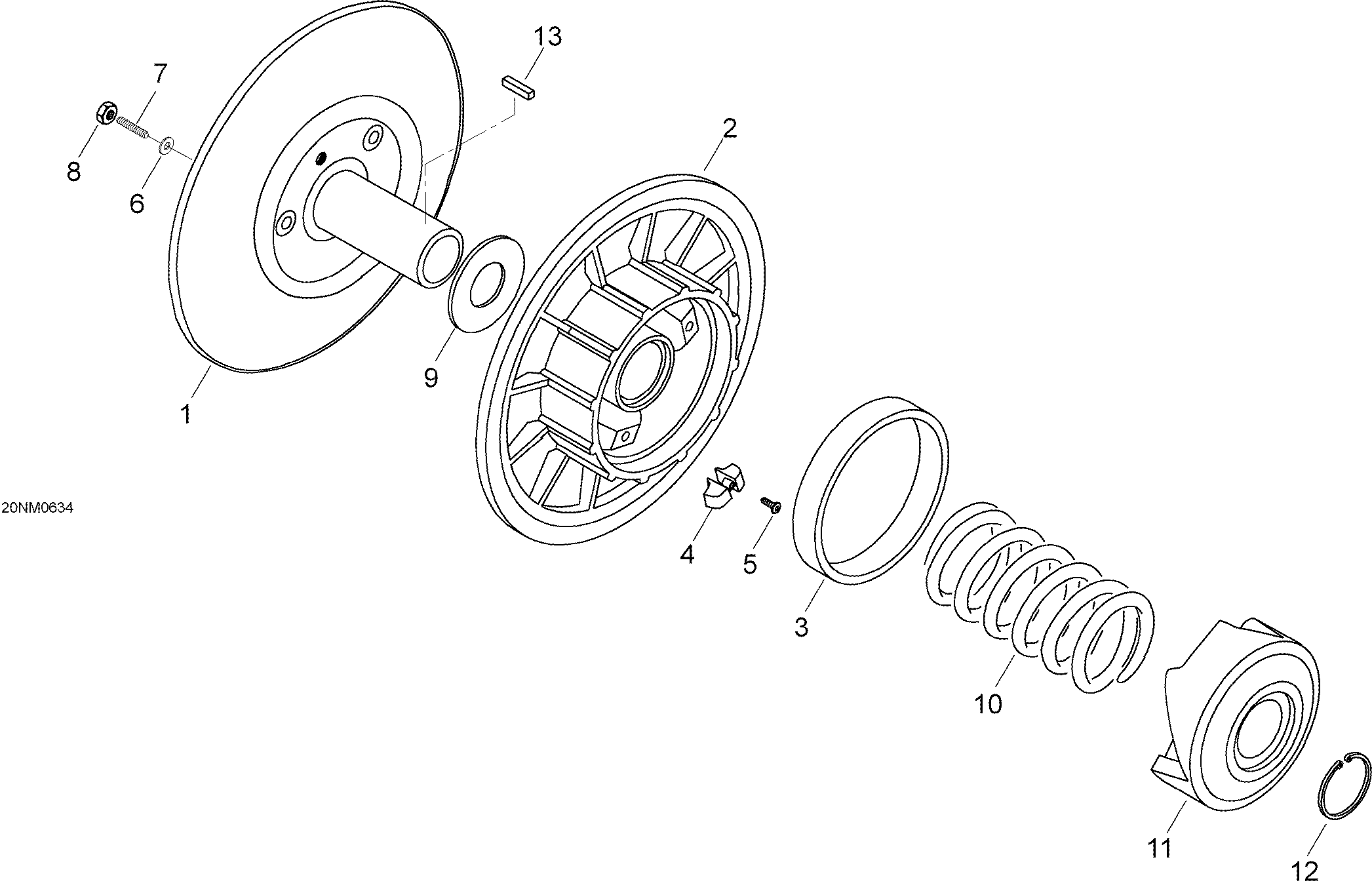

05- Driven Pulley для BRP Lynx YETI SUV V-800 - 2007
-
№АртикулНазвание
-
1140065 Fixed flangeFixed flange
-
2140066 Sliding flange. Includes 2 to 5Sliding flange. Includes 2 to 5
-
3140005 BushingBushing
-
4140068 Shoe cam sliderShoe cam slider
-
5619100006 ScrewScrew
-
6420245370 WasherWasher
-
7619100003 Hex. screw setHex. screw set
-
8232061414 NutNut
-
9504099600 WasherWasher
-
10140056 Release springRelease spring
-
11140067 Cam 40/30 degr.Cam 40/30 degr.
-
12371903100 CirclipCirclip
-
13417119400 KeyKey
