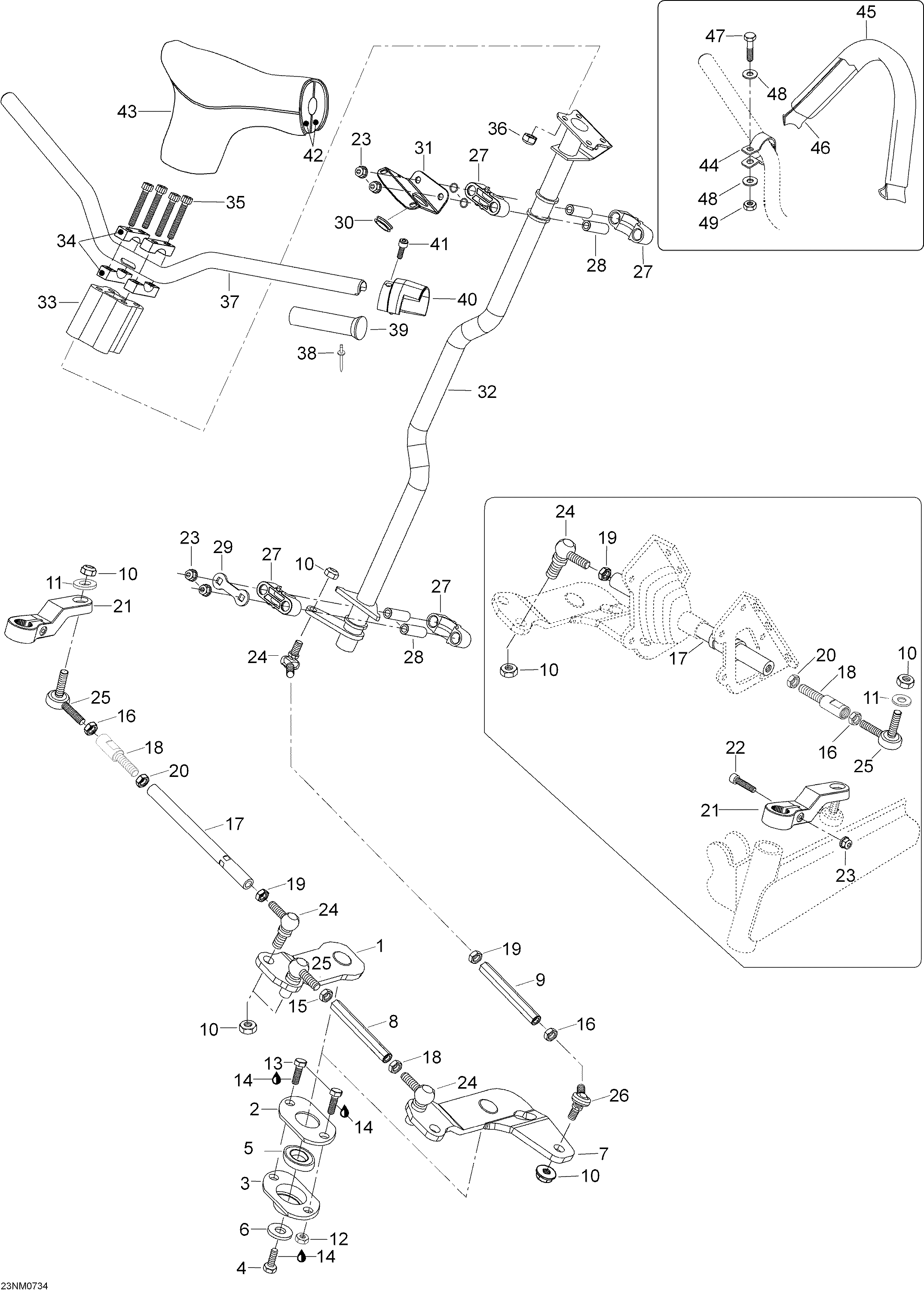

07- Steering System для BRP Lynx YETI SUV V-800 - 2007
-
№АртикулНазвание
-
1605352300 R.H. LeverR.H. Lever
-
25345380 Bearing SupportBearing Support
-
3605350644 Bearing SupportBearing Support
-
440337 Screw M8 x 16Screw M8 x 16
-
531032 BearingBearing
-
65446279 WasherWasher
-
7605353380 L.H. LeverL.H. Lever
-
8605448308 Tie rodTie rod
-
9605351468 Tie rodTie rod
-
1033023 Elastic stop nut M10Elastic stop nut M10
-
1120105 Washer, hardened M10Washer, hardened M10
-
1233011 Elastic flanged nut M8Elastic flanged nut M8
-
1340336 Screw M8 x 20Screw M8 x 20
-
14293800060 Loctite 243, 10mlLoctite 243, 10ml
-
1533019 Nut M10Nut M10
-
16732610010 R.H. Nut-hex.jam M10R.H. Nut-hex.jam M10
-
17605450794 Tie rodTie rod
-
18605450793 AdjusterAdjuster
-
1933017 L.H. Nut-hex.jam .M10L.H. Nut-hex.jam .M10
-
20732610011 L.H. Nut-hex.jam .M10L.H. Nut-hex.jam .M10
-
215348261 Steering ArmSteering Arm
-
2240828 Socket head screw M8 x 35Socket head screw M8 x 35
-
2333201 Elastic flanged nut M8Elastic flanged nut M8
-
24506151495 Ball joint, leftBall joint, left
-
25506151492 R.H. Ball jointR.H. Ball joint
-
26605450895 R.H. Ball jointR.H. Ball joint
-
27506150400 Half-housingHalf-housing
-
28506150500 Bushing-housingBushing-housing
-
29506150600 Plate stopperPlate stopper
-
3028022 GrommetGrommet
-
31605351973 BracketBracket
-
32605153411 Steering paleSteering pale
-
33605351275 Extension (90 mm)Extension (90 mm)
-
34548448 FasteningFastening
-
3540209 Socket head screw M8 x 130Socket head screw M8 x 130
-
3633027 Elastic stop nut M8Elastic stop nut M8
-
37605251368 Steering handle barSteering handle bar
-
3836005 RivetRivet
-
395340464 HandleHandle
-
40506151566 AdapterAdapter
-
4140390 Socket head screw M8 x 20Socket head screw M8 x 20
-
42605252110 Foam, front partFoam, front part
-
42605252111 Foam, rear partFoam, rear part
-
43605254571 CoverCover
-
44506151792 ClampClamp
-
45415090200 Tie-downTie-down
-
46415095500 GripGrip
-
4740031 Screw M6 x 25Screw M6 x 25
-
4820003 Washer A6,4Washer A6,4
-
4933010 Elastic stop nut M6Elastic stop nut M6
