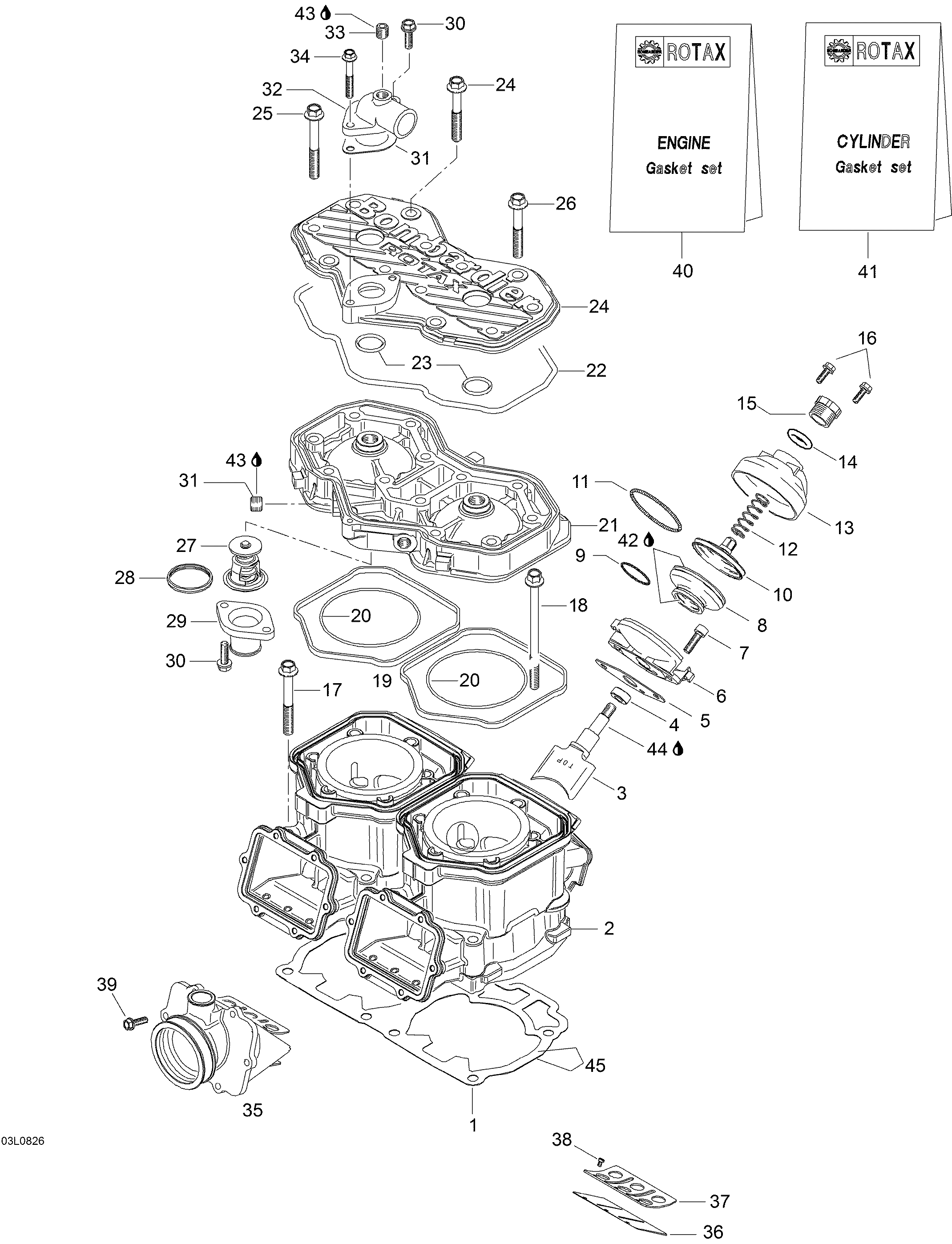

01- Cylinder для BRP Lynx Rave RE 600 - 2008
-
№АртикулНазвание
-
1420931893 Base gasket 0.5 mmBase gasket 0.5 mm
-
1420931892 Base gasket 0.6 mmBase gasket 0.6 mm
-
1420931894 Base gasket 0.7 mmBase gasket 0.7 mm
-
1420931895 Base gasket 0.8 mmBase gasket 0.8 mm
-
2420613714 Cylinder with sleeveCylinder with sleeve
-
3420854650 Exhaust valveExhaust valve
-
4420931542 Oil sealOil seal
-
5420430110 GasketGasket
-
6420854455 Valve rod housingValve rod housing
-
7420840861 Socket head screw M6 x 25Socket head screw M6 x 25
-
8420260729 BellowsBellows
-
9420838255 Spring clampSpring clamp
-
10420854449 Exhaust valveExhaust valve
-
11420939280 Hose springHose spring
-
12420239944 Spring, brownSpring, brown
-
13420911558 Valve coverValve cover
-
14420430220 O-ringO-ring
-
15420241221 Adjuster screwAdjuster screw
-
16420241270 Taptite screw M5 x 25Taptite screw M5 x 25
-
17420640524 Hex. screw M8 x 68.5Hex. screw M8 x 68.5
-
18420640534 Screw M10 x 120Screw M10 x 120
-
19420931590 Rubber ringRubber ring
-
20420850540 O-ringO-ring
-
21420613701 Cylinder headCylinder head
-
22420950320 O-ringO-ring
-
23420430782 O-ringO-ring
-
24420923465 Cylinderhead cover (silver)Cylinderhead cover (silver)
-
25420841306 Hex. collar screw M8 x 65Hex. collar screw M8 x 65
-
26420941627 Hex. collar screw M8 x 56.5Hex. collar screw M8 x 56.5
-
27420922519 ThermostatThermostat
-
28420931272 Sealing ringSealing ring
-
29420922025 Bent outlet socketBent outlet socket
-
30420941250 Taptite screw M6 x 20Taptite screw M6 x 20
-
31420850338 GasketGasket
-
32420922062 Bent outlet socketBent outlet socket
-
33420240480 Plug screw 1/8-27 NPTPlug screw 1/8-27 NPT
-
34420941451 Hex. Collar screw M6 x 40Hex. Collar screw M6 x 40
-
35420867879 Reed vale ass'y. Includes 35 to 38Reed vale ass'y. Includes 35 to 38
-
36420924680 Pedal reedPedal reed
-
37420924695 Reed pedal stopReed pedal stop
-
38420941215 Screw M3 x 5Screw M3 x 5
-
39420941925 Screw M5 x 16Screw M5 x 16
-
40420889922 Engine gasket setEngine gasket set
-
41420889926 Cylinder gasket setCylinder gasket set
-
42413707000 Molykote 111Molykote 111
-
43420899785 Loctite 221, 10ccLoctite 221, 10cc
-
44420297433 Molykote G-N slide pasteMolykote G-N slide paste
-
45293800038 Loctite 518, 50mlLoctite 518, 50ml
