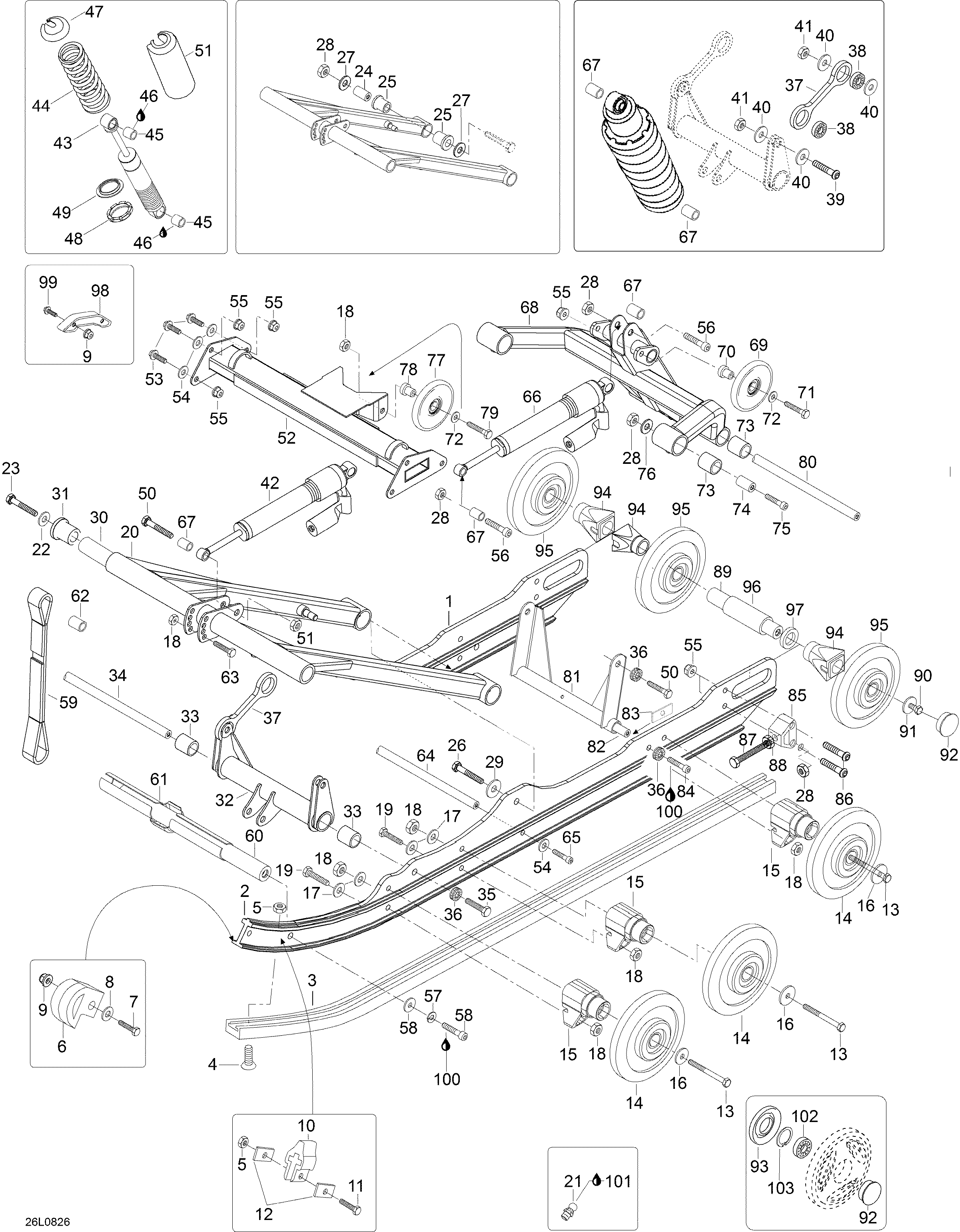

08- Rear Suspension для BRP Lynx Rave RE 600 - 2008
-
№АртикулНазвание
-
1605255122 R.H. RunnerR.H. Runner
-
2605255121 L.H. RunnerL.H. Runner
-
3605355646 ShoeShoe
-
440845 Socket head screw M6 x 25Socket head screw M6 x 25
-
533010 Elastic stop nut M6Elastic stop nut M6
-
6605348954 Runner protectorRunner protector
-
740031 Hex. screw M6 x 25Hex. screw M6 x 25
-
820003 Washer A6,4Washer A6,4
-
933200 Elastic flanged nut M6Elastic flanged nut M6
-
105442328 Rubber stopperRubber stopper
-
1140032 Hex. screw M6 x 30Hex. screw M6 x 30
-
12548470 WasherWasher
-
1340089 Hex. screw M8 x 75Hex. screw M8 x 75
-
14503191314 Idler wheel, 141Idler wheel, 141
-
15605451906 SupportSupport
-
16503183100 Aluslevy M8 hardenedAluslevy M8 hardened
-
1720104 Aluslevy M8 hardenedAluslevy M8 hardened
-
1833011 Elastic stop nut M8Elastic stop nut M8
-
1940037 Hex. screw M8 x 25Hex. screw M8 x 25
-
20605354944 Front armFront arm
-
2134011 Grease nippleGrease nipple
-
2220090 WasherWasher
-
2340243 Hex. screw M12 x 60Hex. screw M12 x 60
-
24605354157 ShaftShaft
-
2531065 CushionCushion
-
2640021 Hex. screw M10 x 70Hex. screw M10 x 70
-
2720116 WasherWasher
-
2833012 Elastic stop nut M10Elastic stop nut M10
-
29503183300 Lock washerLock washer
-
305346135 ShaftShaft
-
3131024 CushionCushion
-
32605354963 Front AarmFront Aarm
-
3331024 CushionCushion
-
34605355115 ShaftShaft
-
3540858 Screw M10 x 50Screw M10 x 50
-
3620068 Lock washer D10Lock washer D10
-
37605254159 Link plateLink plate
-
38605631003 Ball bearingBall bearing
-
39605640010 Socket head screw M10 x 20Socket head screw M10 x 20
-
4020012 WasherWasher
-
4133055 Elastic stop nut M10Elastic stop nut M10
-
42605354556 Shock ass'y, front arm. Includes 42 to 49Shock ass'y, front arm. Includes 42 to 49
-
43605623024 Shock, front armShock, front arm
-
43605623026 Shock, rear armShock, rear arm
-
4425054 Spring, front armSpring, front arm
-
44605625000 Spring, rear armSpring, rear arm
-
4531094 CushionCushion
-
46320006 Loctite 641, 50mlLoctite 641, 50ml
-
47605354631 Spring stopperSpring stopper
-
48230048 CamCam
-
49230049 Spring guideSpring guide
-
5040016 Hex. screw M10 x 45Hex. screw M10 x 45
-
5133012 Elastic stop nut M10Elastic stop nut M10
-
52605354961 Upper armUpper arm
-
5340037 Screw M8 x 25Screw M8 x 25
-
5420004 Washer A8,4Washer A8,4
-
5533201 Elastic flanged nut M8Elastic flanged nut M8
-
5640134 Socket head screw M10 x 45Socket head screw M10 x 45
-
5733012 Elastic stop nut M10Elastic stop nut M10
-
5820105 Washer, hardened M10Washer, hardened M10
-
59605355116 Stopper strapStopper strap
-
60605353958 ShaftShaft
-
61605355096 LimiterLimiter
-
62605455335 SleeveSleeve
-
6340008 K-ruuvi M8 x 45 DIN931m8.8ZneK-ruuvi M8 x 45 DIN931m8.8Zne
-
645343471 ShaftShaft
-
6540134 Socket head screw M10 x 45Socket head screw M10 x 45
-
66605354559 Shock ass'y, rear arm. Includes 42 to 49Shock ass'y, rear arm. Includes 42 to 49
-
675446652 SleeveSleeve
-
68605354962 Rear armRear arm
-
6946100 Idler wheel 133/blackIdler wheel 133/black
-
70605454461 SleeveSleeve
-
7140008 Screw M8 x 45Screw M8 x 45
-
7220077 Washer A8,4Washer A8,4
-
7331065 CushionCushion
-
74605354157 ShaftShaft
-
7540254 Socket head screw M10 x 65Socket head screw M10 x 65
-
7620011 Washer A10.5Washer A10.5
-
77572043500 Support wheelSupport wheel
-
78605454167 SleeveSleeve
-
7940006 Screw M8 x 35Screw M8 x 35
-
80605355118 ShaftShaft
-
81605353953 Rear armRear arm
-
82605355119 ShaftShaft
-
835446786 Soppurt plateSoppurt plate
-
8440134 Socket head screw M10 x 45Socket head screw M10 x 45
-
855341633 TensionerTensioner
-
8640392 Socket head screw M8 x 45Socket head screw M8 x 45
-
8740239 Hex. screw M10 x 100Hex. screw M10 x 100
-
8833004 Nut M10Nut M10
-
89503190429 ShaftShaft
-
9040050 Hex. screw M10 x 35Hex. screw M10 x 35
-
91503190439 Aluslevy M10 hardenedAluslevy M10 hardened
-
92570063600 CapCap
-
93503190434 Labyrint sleeveLabyrint sleeve
-
94503190428 SpacerSpacer
-
95503191111 Idler wheel 165Idler wheel 165
-
96503190430 SleeveSleeve
-
97503190432 SleeveSleeve
-
985343191 Slide partSlide part
-
9940064 Locking screw M6 x 40Locking screw M6 x 40
-
100293800005 Loctite 271, 10mlLoctite 271, 10ml
-
101293550033 Synthetic grease, 400Synthetic grease, 400
-
102503190795 Ball bearingBall bearing
-
103371901700 CirclipCirclip
