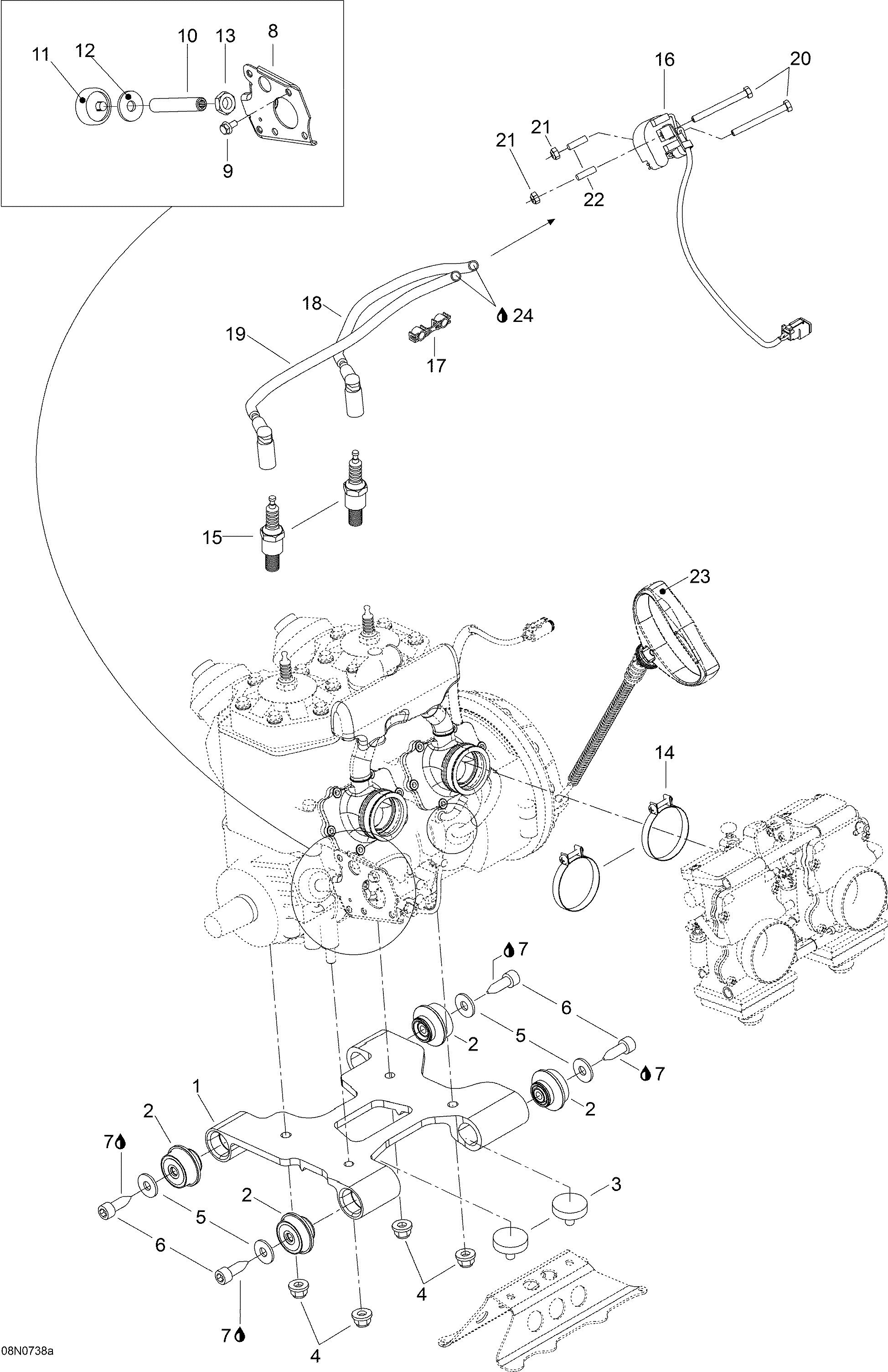

01- Engine And Engine Support для BRP Lynx Rave RE 600 - 2008
-
№АртикулНазвание
-
1512060051 Engine supportEngine support
-
2512059691 Rubber mountRubber mount
-
3512059738 Rubber mountRubber mount
-
433074 Elastic flanged nut M10Elastic flanged nut M10
-
5506151251 WasherWasher
-
6250000094 Screw M10x30 8.8 YICScrew M10x30 8.8 YIC
-
7293800060 Liima Loctite 243, 10mlLiima Loctite 243, 10ml
-
8512059840 PlatePlate
-
940327 Hex. screw M6 x 12Hex. screw M6 x 12
-
10250500007 Stopper screwStopper screw
-
11512059610 StopperStopper
-
1220023 WasherWasher
-
13232170411 Nut M14Nut M14
-
14512059835 ClampClamp
-
15512059533 Spark plug BR9 ECSSpark plug BR9 ECS
-
16512059968 Ignition coil komp.Ignition coil komp.
-
17410914600 Plastic clipPlastic clip
-
18512059695 Ignition cable, 300 mmIgnition cable, 300 mm
-
19512059696 Ignition cable, 375 mmIgnition cable, 375 mm
-
2040084 Screw M6 x 45Screw M6 x 45
-
2133200 Elastic sflanged nut M6Elastic sflanged nut M6
-
22517203200 SleeveSleeve
-
23572084400 GripGrip
-
24293550004 GreaseGrease
