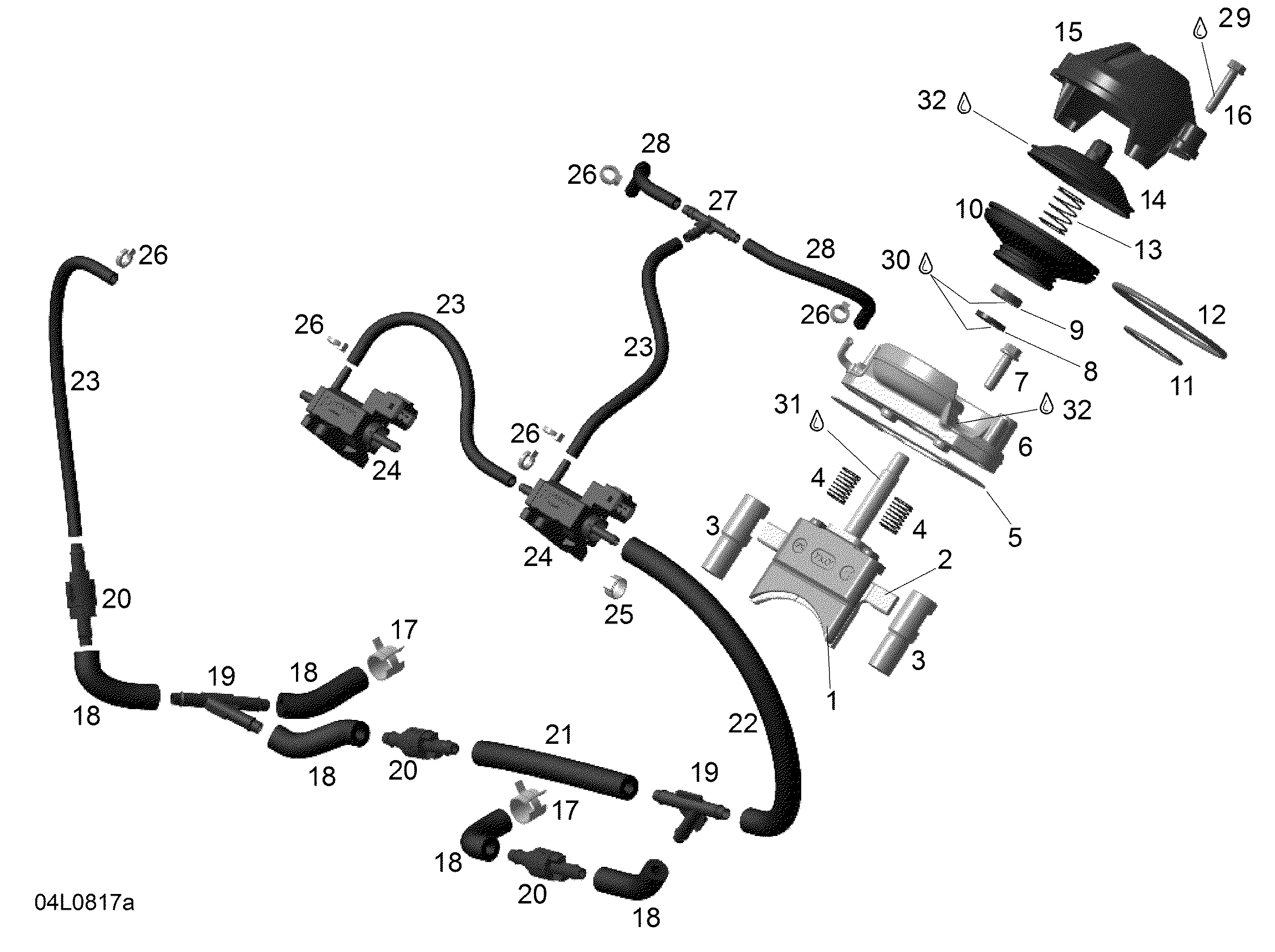

01- Rave valve для BRP Lynx Xtrim 800R PowerTEK - 2008
-
№АртикулНазвание
-
1420854900 Ehaust valva upperEhaust valva upper
-
2420854906 Ehaust valva lowerEhaust valva lower
-
3420854890 Exhaust valveExhaust valve
-
4420238554 SpringSpring
-
5420430030 GasketGasket
-
6420854887 Valve rod housingValve rod housing
-
7420440202 Screw M6 x 20Screw M6 x 20
-
8420431380 Gasket ringGasket ring
-
9420950730 Oil sealOil seal
-
10420260724 BellowsBellows
-
11420838255 Hose springHose spring
-
12420939285 Hose springHose spring
-
13420238555 SpringSpring
-
14420854444 Exhaust valve pistonExhaust valve piston
-
15420812710 Valve coverValve cover
-
16420241270 Screw M5 x 25Screw M5 x 25
-
17420853510 Clamp 24Clamp 24
-
18420660561 Pressure line, 50mmPressure line, 50mm
-
19420460635 Y-nippleY-nipple
-
20420660545 Check valveCheck valve
-
21420660564 Pressure line, 100mmPressure line, 100mm
-
22420660565 Pressure line, 220mmPressure line, 220mm
-
23420660571 Pressure line, 180mmPressure line, 180mm
-
24420664630 Solenoid valveSolenoid valve
-
25420851463 ClampClamp
-
26420866718 Tie-rapTie-rap
-
27420660550 T-fittingT-fitting
-
28420660576 Pressure line, 110mmPressure line, 110mm
-
29293800060 Loctite 243Loctite 243
-
30293550033 Multi purpose greaseMulti purpose grease
