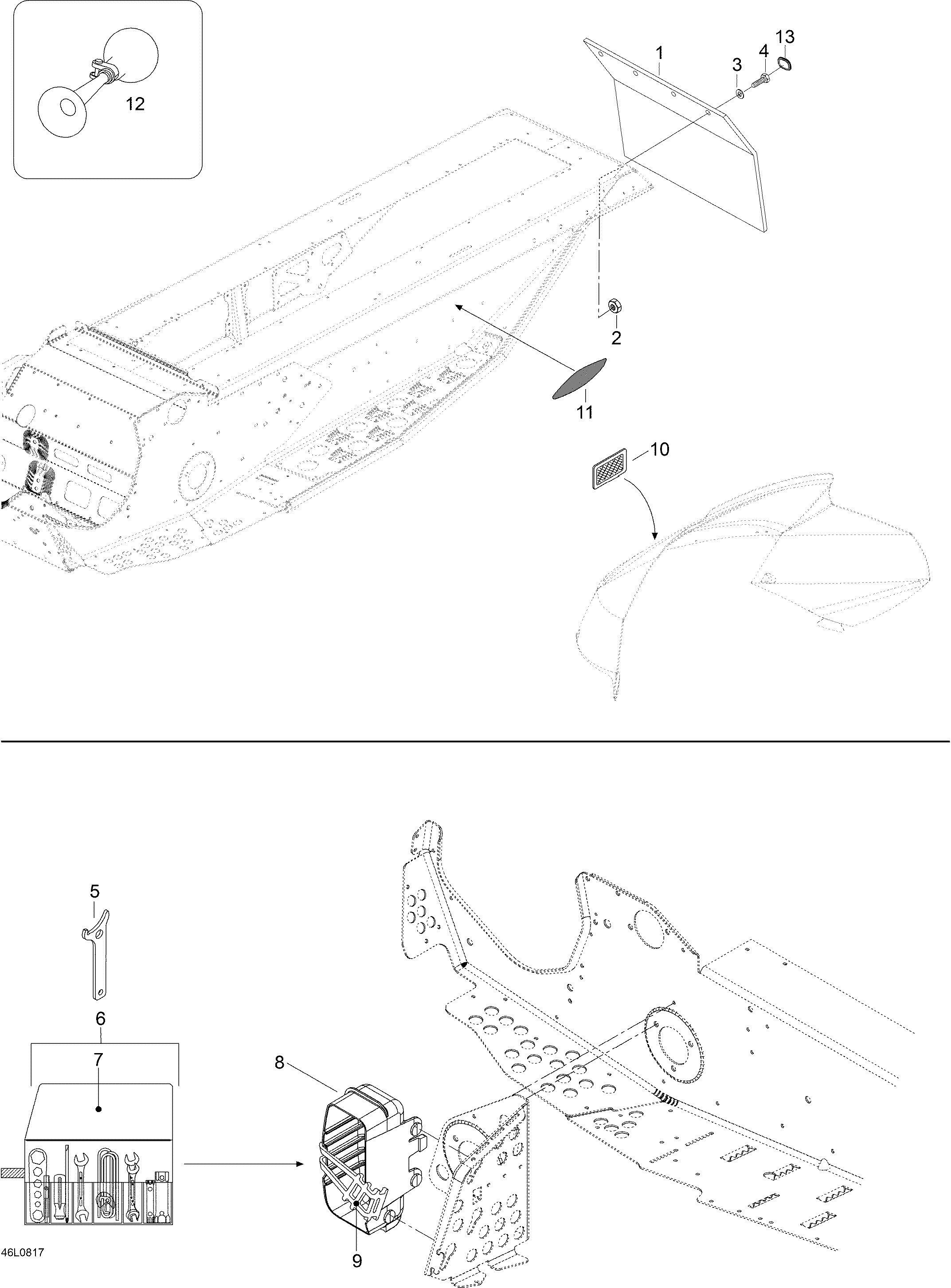

09- Utilities для BRP Lynx Xtrim 800R PowerTEK - 2008
-
№АртикулНазвание
-
15246131 Snow guardSnow guard
-
233200 Elastic flanged nut M6Elastic flanged nut M6
-
320009 Washer A6.4Washer A6.4
-
440078 Hex. screw M6 x 22Hex. screw M6 x 22
-
5529032900 Wrench adjusterWrench adjuster
-
6529035596 Tool set. Includes 8 to 9Tool set. Includes 8 to 9
-
7520000047 Tool bagTool bag
-
8520000322 TrunkTrunk
-
9570069700 LatchLatch
-
1021118 Reflector, BrightReflector, Bright
-
11605621001 Reflector, yellowReflector, yellow
-
12549011291 HornHorn
-
13415073300 PlugPlug
