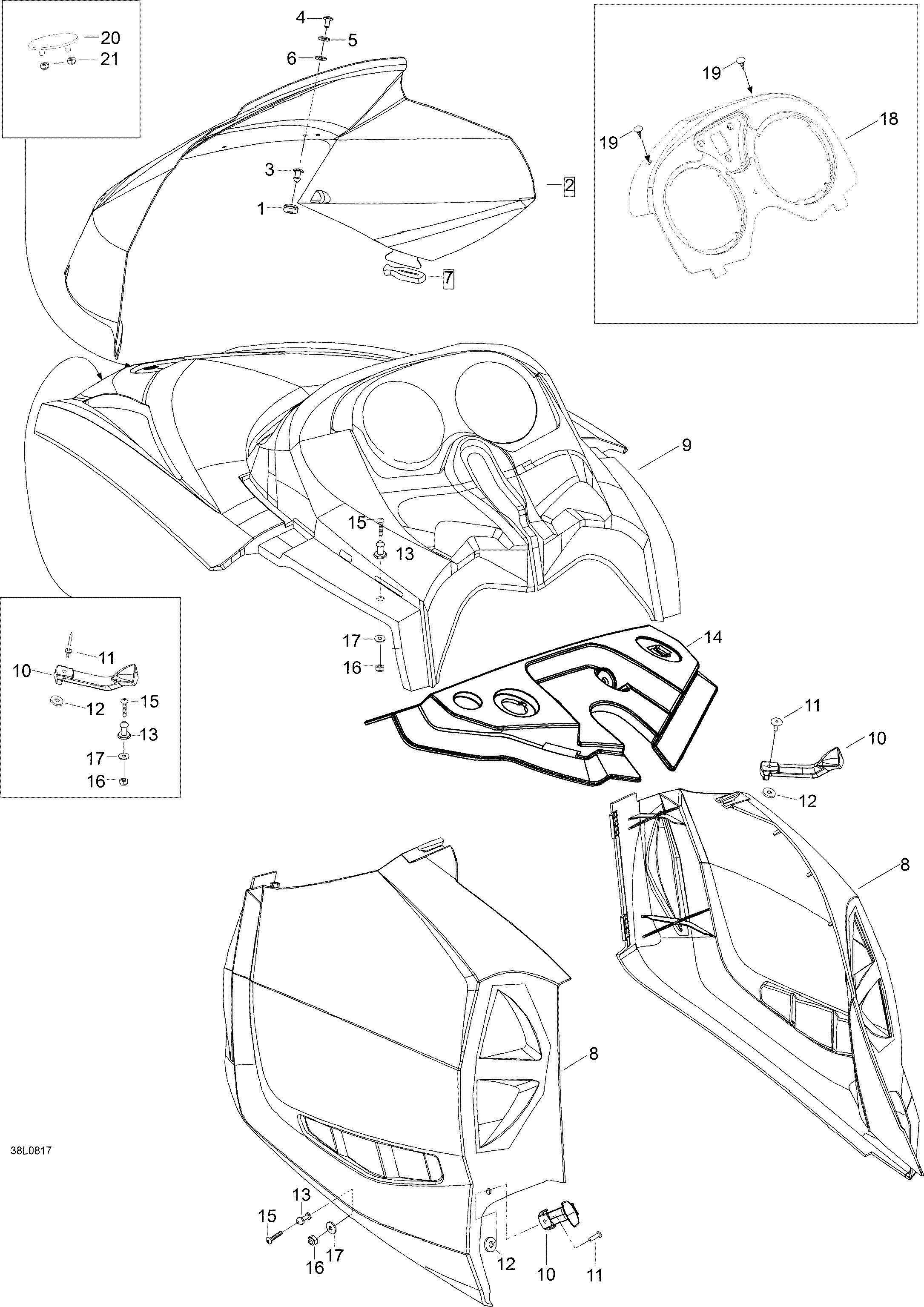

09- Hood And Console для BRP Lynx Xtrim 800R PowerTEK - 2008
-
№АртикулНазвание
-
1517302841 GrommetGrommet
-
2605154485 WindscreenWindscreen
-
3517303439 KnobKnob
-
4250000146 ScrewScrew
-
5250200025 WasherWasher
-
6250200024 WasherWasher
-
7570023800 LatchLatch
-
8605355233 R.H. PanelR.H. Panel
-
8605355232 L.H. PanelL.H. Panel
-
9605355229 Hood/consoleHood/console
-
105342952 LatchLatch
-
11605636007 RivetRivet
-
1220008 Washer A5,3Washer A5,3
-
13605449087 Counter rollerCounter roller
-
14605354992 Instrument panelInstrument panel
-
1540168 Screw M4 x 25Screw M4 x 25
-
1633008 Elastic stop nut M4Elastic stop nut M4
-
1720037 Washer A4,3Washer A4,3
-
18605253398 Instrument panelInstrument panel
-
19732600030 ScrewScrew
-
20605455262 WasherWasher
-
2133200 Elastic flanged nut M6Elastic flanged nut M6
