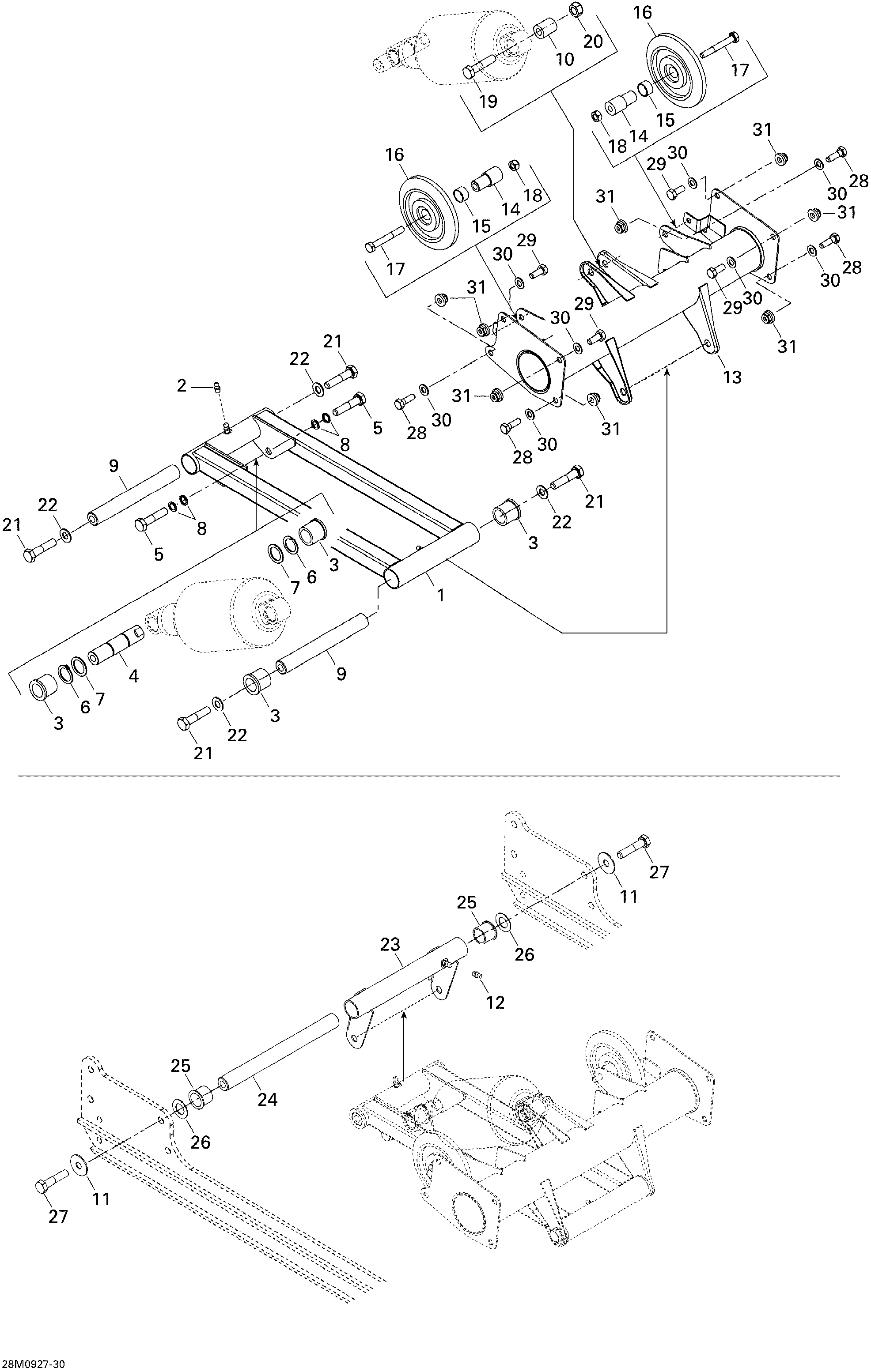

08- Rear Arm для BRP Lynx Adventure Ranger 550 RF - 2009
-
№АртикулНазвание
-
1605349313 Rear Arm Weld LightRear Arm Weld Light
-
2M34011 Grease FittingGrease Fitting
-
3M31027 Slide BearingSlide Bearing
-
4605451897 Rearshock ShaftRearshock Shaft
-
5207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
6M31007 CirclipCirclip
-
7M31091 ShimShim
-
8M20068 Lock WasherLock Washer
-
9M5346865 ShaftShaft
-
10M5446652 SleeveSleeve
-
11512056700 Lock WasherLock Washer
-
12M34011 Grease FittingGrease Fitting
-
13605355927 Upper Rear ArmUpper Rear Arm
-
14605454570 SleeveSleeve
-
15605454569 SleeveSleeve
-
16M46027 Idler WheelIdler Wheel
-
17207086044 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
18232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
19207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
20233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
21207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
22M20105 WasherWasher
-
23M5345535 Rear ArmRear Arm
-
24M5346900 ShaftShaft
-
25M31024 Slide BearingSlide Bearing
-
26M20116 WasherWasher
-
27207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
28207182544 Hex. Screw M8 X 25Hex. Screw M8 X 25
-
29207182044 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
30503191564 WasherWasher
-
31233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
