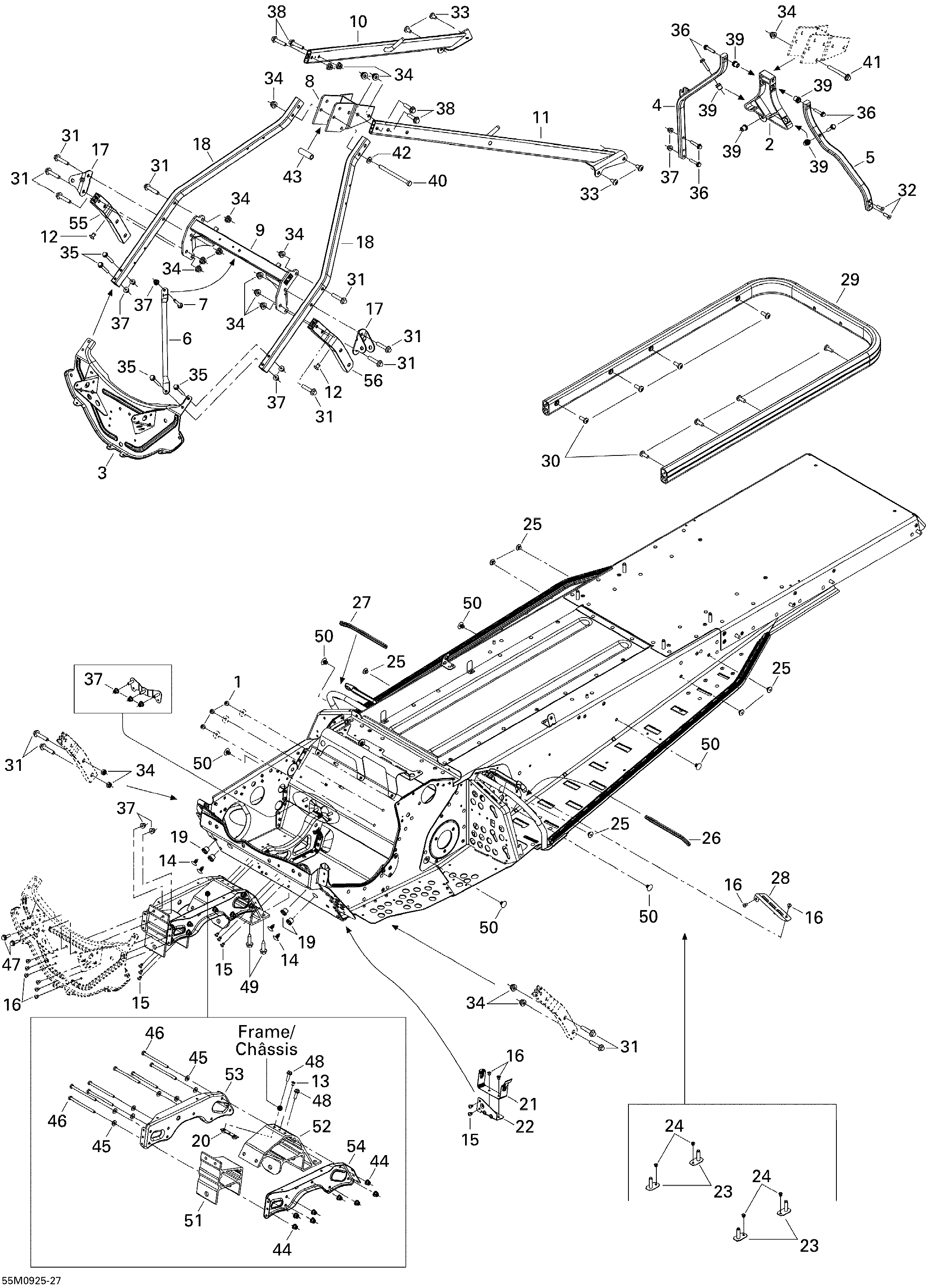

09- Frame and Components для BRP Lynx Adventure Ranger 550 RF - 2009
-
№АртикулНазвание
-
1293150096 RivetRivet
-
2518324377 Center StiffenerCenter Stiffener
-
3518324216 Front PlateFront Plate
-
4518324397 RH Handle SupportRH Handle Support
-
5518324376 LH Handle SupportLH Handle Support
-
6518324988 BraceBrace
-
7207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
8518324196 Bracket BlockBracket Block
-
9518325150 Upper Cross MemberUpper Cross Member
-
10518324480 RH MemberRH Member
-
11518325193 LH MemberLH Member
-
12293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
13390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
14390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
15390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
14414644300 DartDart
-
15390909100 Avex RivetAvex Rivet
-
16390909200 Avex RivetAvex Rivet
-
17518324202 Shock BracketShock Bracket
-
18518325074 Upper TubeUpper Tube
-
19293450166 InsertInsert
-
20518324204 Holder PlateHolder Plate
-
21518322726 Guard Belt Bracket, BlackGuard Belt Bracket, Black
-
22518324923 Guard Belt SupportGuard Belt Support
-
23518322791 Tank BracketTank Bracket
-
24390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
25390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
26271000110 Protection TrimProtection Trim
-
27271000110 Protection TrimProtection Trim
-
28518323105 Plate, BlackPlate, Black
-
29518325509 Rear BumperRear Bumper
-
30236282084 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
31207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
32205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
33250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
34233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
35207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
-
36250000253 Hex. Flange ScrewHex. Flange Screw
-
37233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
38207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
39415107300 InsertInsert
-
40230081044 Hex. Screw M8 X 110Hex. Screw M8 X 110
-
41207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
42503189157 WasherWasher
-
43506150500 Housing BushingHousing Bushing
-
44233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
45250200039 Flat WasherFlat Washer
-
46207069044 Hex. Screw M6 X 90Hex. Screw M6 X 90
-
47207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
48207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
49250000257 Cone Bolt, M8 X 30Cone Bolt, M8 X 30
-
50518321954 Fastener PanelFastener Panel
-
51518324019 Front Attachment, Front SuspensionFront Attachment, Front Suspension
-
52518325202 Rear Attachment, Front SuspensionRear Attachment, Front Suspension
-
53518324014 RH Lateral ReinforcementRH Lateral Reinforcement
-
54518324017 LH Lateral ReinforcementLH Lateral Reinforcement
-
55518324214 RH Vertical TubeRH Vertical Tube
-
56518324215 LH Vertical TubeLH Vertical Tube
