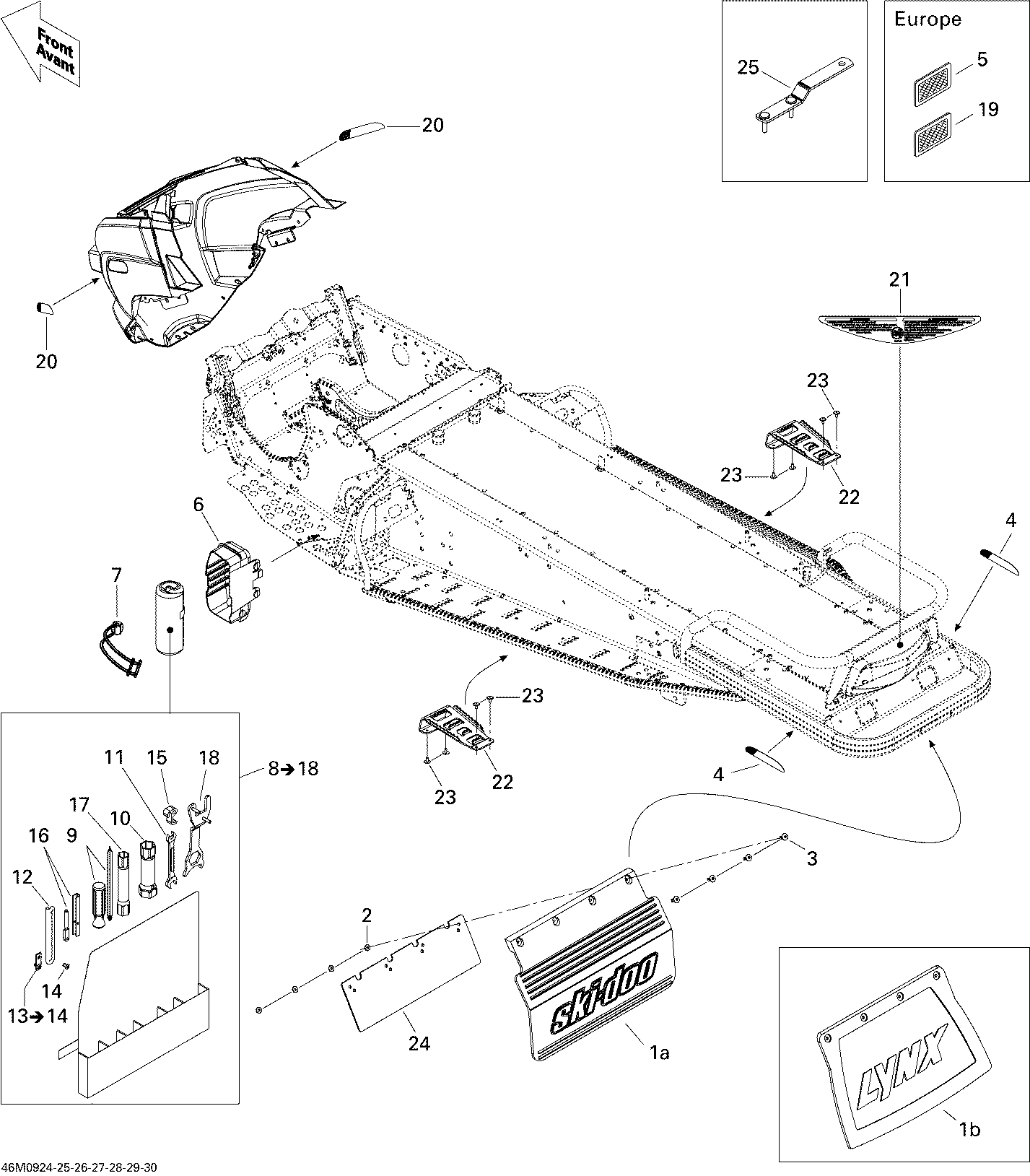

09- Utilities для BRP Lynx Adventure Ranger 550 RF - 2009
-
№АртикулНазвание
-
1b520000600 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
4520000525 ReflectorReflector
-
5520000271 Reflector, AmberReflector, Amber
-
6520000322 TrunkTrunk
-
7520000528 LatchLatch
-
8529000041 Tool Kit. Includes 8 to 18Tool Kit. Includes 8 to 18
-
9529000004 Driver ScrewDriver Screw
-
10529014800 Socket Wrench 21/26 mmSocket Wrench 21/26 mm
-
11529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
12412500200 Starter Rope 2200 mm, MeterStarter Rope 2200 mm, Meter
-
13529024400 Rope Adaptor. Includes 13 to 14Rope Adaptor. Includes 13 to 14
-
14390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
15529019400 Starter GripStarter Grip
-
16529035501 Spacing ToolSpacing Tool
-
18520000721 WrenchWrench
-
19415037900 Reflector, WhiteReflector, White
-
20520000525 ReflectorReflector
-
21520000611 Security LabelSecurity Label
-
24572108200 ReinforcementReinforcement
