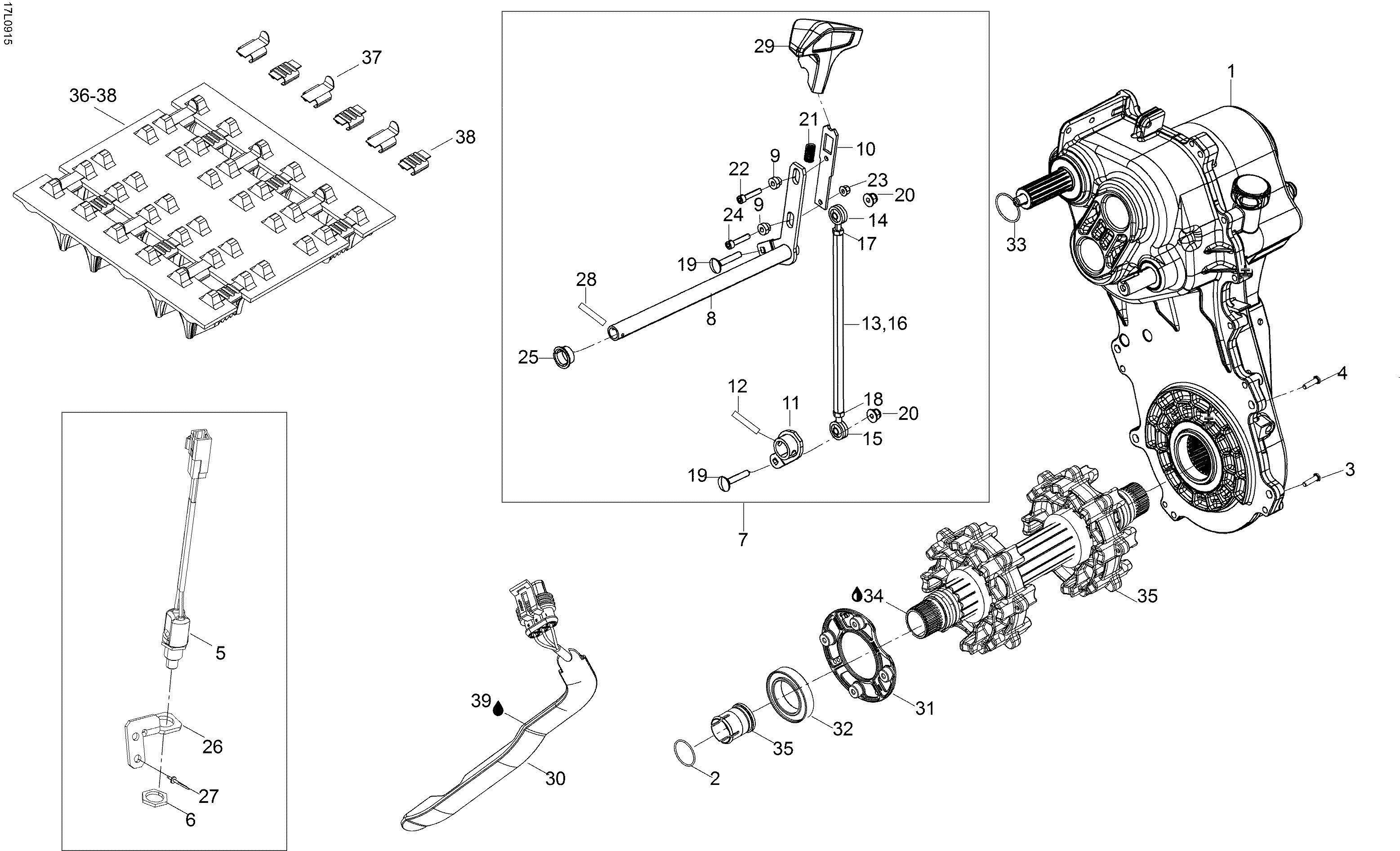

05- Drive System для BRP Lynx Xtrim Commander 600 SDI - 2009
-
№АртикулНазвание
-
1504152768 VAIHTEISTO 2FNR (1.98) mek(56347)VAIHTEISTO 2FNR (1.98) mek(56347)
-
2293300143 O-RingO-Ring
-
3250000376 ScrewScrew
-
440015 ScrewScrew
-
5515176472 Switch kompl.Switch kompl.
-
6250100012 NutNut
-
7504152886 Shifter assyShifter assy
-
8504152887 Sifter handleSifter handle
-
9504152787 SleeveSleeve
-
10504152831 Shifter shaftShifter shaft
-
11504152834 Shifter weldShifter weld
-
1241012 PinPin
-
13504152833 Shifter rodShifter rod
-
14707000689 Joint R.HJoint R.H
-
15707000690 Joint L.HJoint L.H
-
16504152836 RodRod
-
17232061414 NutNut
-
18232066414 NutNut
-
19207762544 ScrewScrew
-
20232561414 NUTNUT
-
21504152882 SpringSpring
-
22205052534 ScrewScrew
-
23233251434 NutNut
-
24732600030 ScrewScrew
-
25504152890 BearingBearing
-
26504152902 Sensor fasteningSensor fastening
-
27293150163 RivetRivet
-
28250400035 PinPin
-
29504152837 Shifter handleShifter handle
-
30504152732 Sensor kompl.Sensor kompl.
-
31507032437 Bering housingBering housing
-
32293350059 BearingBearing
-
33293300122 O-ringO-ring
-
34293550022 GreaseGrease
-
35504152910 Driveaxle assyDriveaxle assy
-
3613070 TrackTrack
-
375318323 GuideGuide
-
385318322 CleatCleat
-
39293800066 Loctite 5900Loctite 5900
