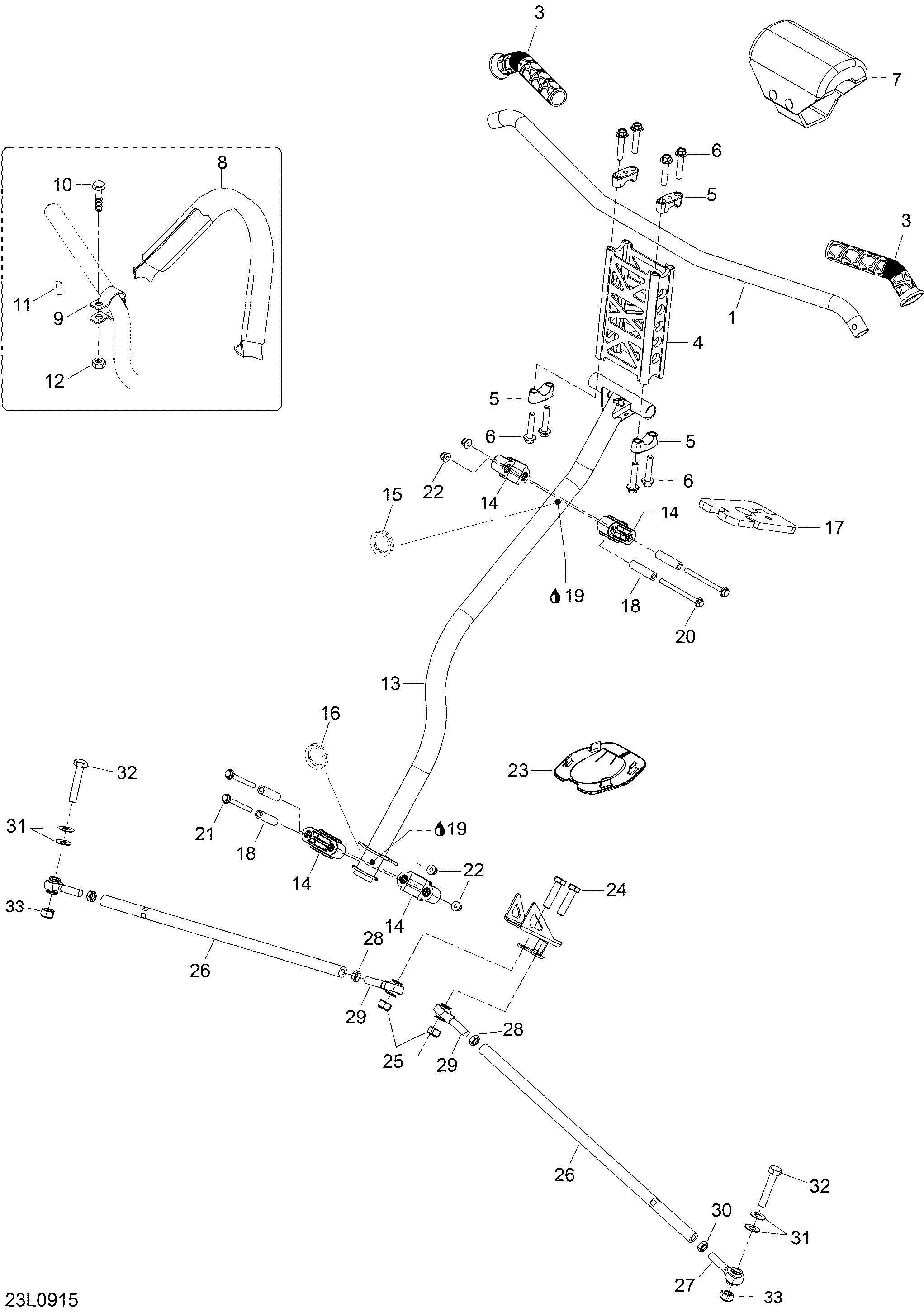

07- Steering System для BRP Lynx Xtrim Commander 600 SDI - 2009
-
№АртикулНазвание
-
1506152399 Hand Bar PaintHand Bar Paint
-
3506151530 GripGrip
-
4860200269 ExtensionExtension
-
5506152394 Steering SupportSteering Support
-
6250000285 Hex Flanged Screw M8 x 40Hex Flanged Screw M8 x 40
-
7506152265 Steering PadSteering Pad
-
8506152115 Ohj. tangon remmi + suojaOhj. tangon remmi + suoja
-
9506151792 Ohj.remmin kiinnitinOhj.remmin kiinnitin
-
10207662084 Ruuvi DIN.6921 (1pkt=10kpl)Ruuvi DIN.6921 (1pkt=10kpl)
-
11506152156 HolkkiHolkki
-
12233261494 Mutteri (1pkt=10kpl)Mutteri (1pkt=10kpl)
-
13506152310 Main Tube PaintMain Tube Paint
-
14506152219 Half-Housing upperHalf-Housing upper
-
14506152217 Half-Housing lowerHalf-Housing lower
-
15506152292 GasketGasket
-
16506152218 CushionCushion
-
17506152404 CushionCushion
-
18506152297 Housing BushingHousing Bushing
-
19293550033 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
20207667086 Hex Flanged Screw M6 x 70Hex Flanged Screw M6 x 70
-
21207667086 Hex Flanged Screw M6 x 65Hex Flanged Screw M6 x 65
-
22233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
23506152163 PlatePlate
-
24207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
25232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
26506152229 Tie RodTie Rod
-
27506152081 Ball JointBall Joint
-
28250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
29506152019 Ball JointBall Joint
-
30732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
31506152194 WasherWasher
-
32207005544 Hex Screw M10 X 55Hex Screw M10 X 55
-
33232500416 Elastic Stop Nut M10Elastic Stop Nut M10
