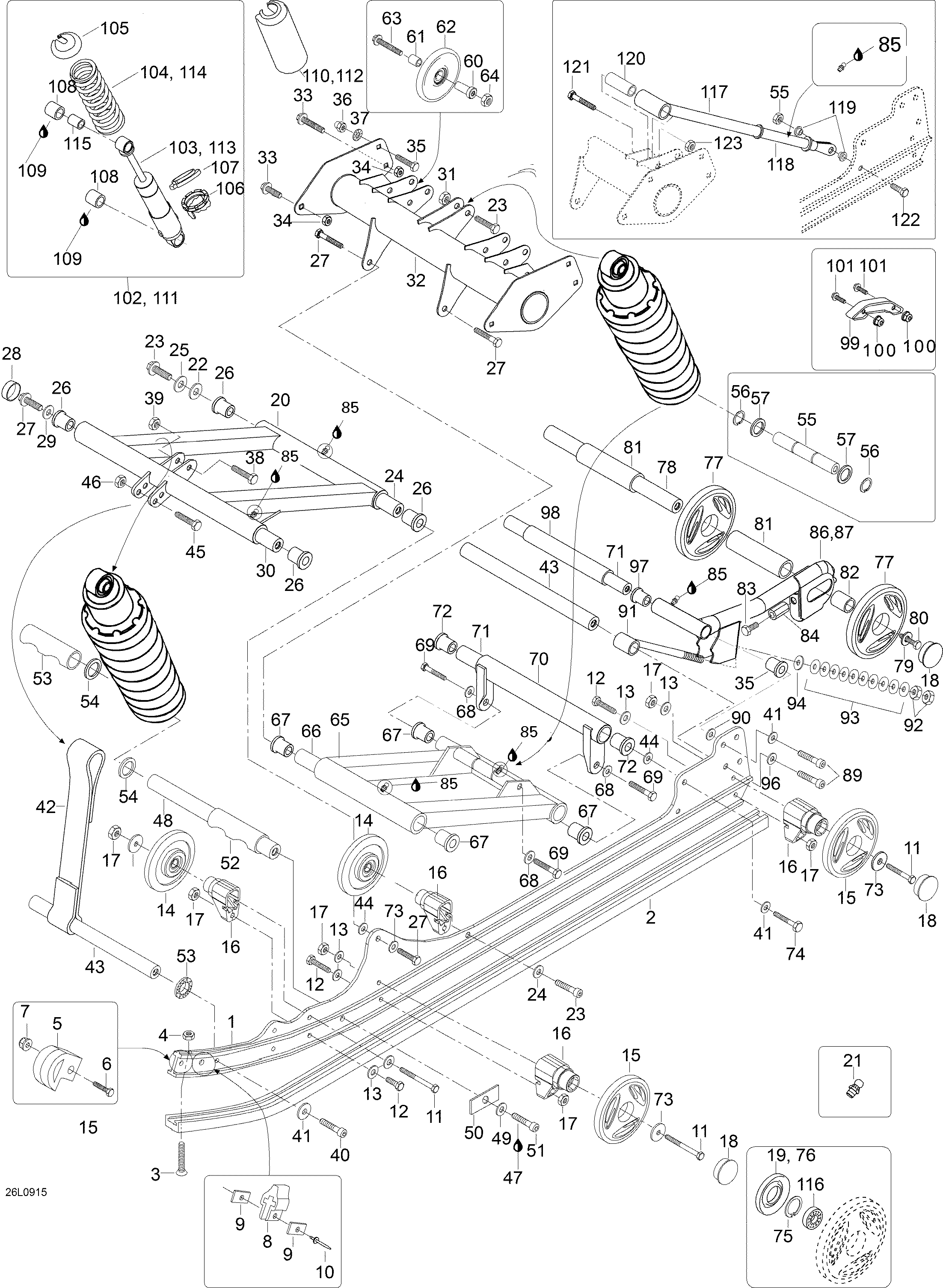

07- Rear Suspension для BRP Lynx Xtrim Commander 600 SDI - 2009
-
№АртикулНазвание
-
1503191837 RunnerRunner
-
2503192021 Slider shoeSlider shoe
-
3208562531 ScrewScrew
-
4232561414 NutNut
-
5503191137 Runner protectorRunner protector
-
6207652544 ScrewScrew
-
7233251414 NutNut
-
8503192106 Rubber bumperRubber bumper
-
9503191273 WasherWasher
-
10293150142 RivetRivet
-
11207667044 ScrewScrew
-
12207662544 ScrewScrew
-
13503191820 WasherWasher
-
14503191316 Idler wheel 141, blackIdler wheel 141, black
-
15503191313 Idler wheel 141, full moon. NTC_LYNXIdler wheel 141, full moon. NTC_LYNX
-
16503191833 Wheel supprotWheel supprot
-
17233261414 NutNut
-
18570063600 ProtectorProtector
-
19503190434 GasketGasket
-
205147672 Front armFront arm
-
21408200700 Grease fittingGrease fitting
-
22512056700 Lock plateLock plate
-
23207004544 ScrewScrew
-
245347713 Lower shaft, front armLower shaft, front arm
-
2520116 WasherWasher
-
2631024 SleeveSleeve
-
27207026044 ScrewScrew
-
285448025 CoverCover
-
29250200005 WasherWasher
-
30605348606 Upper shaft, front armUpper shaft, front arm
-
31232500416 NutNut
-
32503191743 Rear beamRear beam
-
34232581414 NutNut
-
35207781644 ScrewScrew
-
36232381413 NutNut
-
3720072 Lock washerLock washer
-
38207005044 ScrewScrew
-
39232500416 NutNut
-
40205004544 ScrewScrew
-
41234001410 WasherWasher
-
42503192033 Stopper strapStopper strap
-
435347717 Shaft, stopper strapShaft, stopper strap
-
444181158 Fixing washerFixing washer
-
45207084544 ScrewScrew
-
46232581414 NutNut
-
47293800010 Loctite 2701, 250mlLoctite 2701, 250ml
-
485347726 Lower shaft, shockLower shaft, shock
-
4920068 Lock washerLock washer
-
505447940 Supprot washerSupprot washer
-
51205004547 ScrewScrew
-
525347718 SleeveSleeve
-
535346649 SleeveSleeve
-
5431013 Shim ringShim ring
-
55605451897 Shaft, rear shockShaft, rear shock
-
56293370056 LockringLockring
-
5731091 Shim ringShim ring
-
58207004044 ScrewScrew
-
5920068 Lock washerLock washer
-
60503192085 Sleeve, idler wheelSleeve, idler wheel
-
61503192086 Sleeve, idler wheelSleeve, idler wheel
-
62503191316 Idler wheel, 141 blackIdler wheel, 141 black
-
63207087044 ScrewScrew
-
64232581414 NutNut
-
65605349313 Rear armRear arm
-
665346865 Shaft l=160mmShaft l=160mm
-
6731027 SleeveSleeve
-
68234001410 WasherWasher
-
69207004044 Screw (1=1 pck=10pcs)Screw (1=1 pck=10pcs)
-
705347668 Rear swingRear swing
-
715347713 Lower shaft, front armLower shaft, front arm
-
7231024 SleeveSleeve
-
7320116 WasherWasher
-
74207004544 ScrewScrew
-
75512056700 Lock washerLock washer
-
76570063600 covercover
-
77503191110 Idler wheel 165 mm, full moon. NTC_LYNXIdler wheel 165 mm, full moon. NTC_LYNX
-
78503191408 Rear shaftRear shaft
-
79503190439 WasherWasher
-
80250000019 ScrewScrew
-
81503192047 SleeveSleeve
-
82503192048 SleeveSleeve
-
83230100044 ScrewScrew
-
84605633002 NutNut
-
85293550033 GreaseGrease
-
86503192088 Extension L.H.Extension L.H.
-
87503192089 Extension R.H.Extension R.H.
-
8820116 WasherWasher
-
89205004547 ScrewScrew
-
90512056700 Lock washerLock washer
-
915447373 Screw for springScrew for spring
-
92232006414 NutNut
-
9325004 Plate springPlate spring
-
94234002410 WasherWasher
-
95205004547 ScrewScrew
-
96234001410 WasherWasher
-
9731024 SleeveSleeve
-
98605448429 Support pipeSupport pipe
-
995343191 Sliding padSliding pad
-
100233261414 NutNut
-
101207764044 ScrewScrew
-
102503192030 Shock ass'y rear armShock ass'y rear arm
-
103503191850 Shock rear armShock rear arm
-
104503192111 Spring 255 MM-65 N/MMSpring 255 MM-65 N/MM
-
105230076 Spring lockSpring lock
-
106505070150 Cam 45Cam 45
-
107503191872 Guide-springGuide-spring
-
10831094 SleeveSleeve
-
10932161 Glue. LoctiteGlue. Loctite
-
1105346754 Cover for shockCover for shock
-
111503192016 Shock ass'y front armShock ass'y front arm
-
1125346754 Cover for shockCover for shock
-
113503191847 Shock front armShock front arm
-
114503191848 Spring 237mm-50/90N/mmSpring 237mm-50/90N/mm
-
1155446652 Sleeve 10,2/20-25,5Sleeve 10,2/20-25,5
-
116293350055 Ball bearingBall bearing
-
1175347851 Poker tubePoker tube
-
1185347852 Poker shaftPoker shaft
-
1195447853 Slide bearingSlide bearing
-
1205447848 SleeveSleeve
-
12140011 Hex. screw M8 x 60Hex. screw M8 x 60
-
122207103544 Hex. screw M10 x 35Hex. screw M10 x 35
-
12333012 Eastic stop nut M10Eastic stop nut M10
