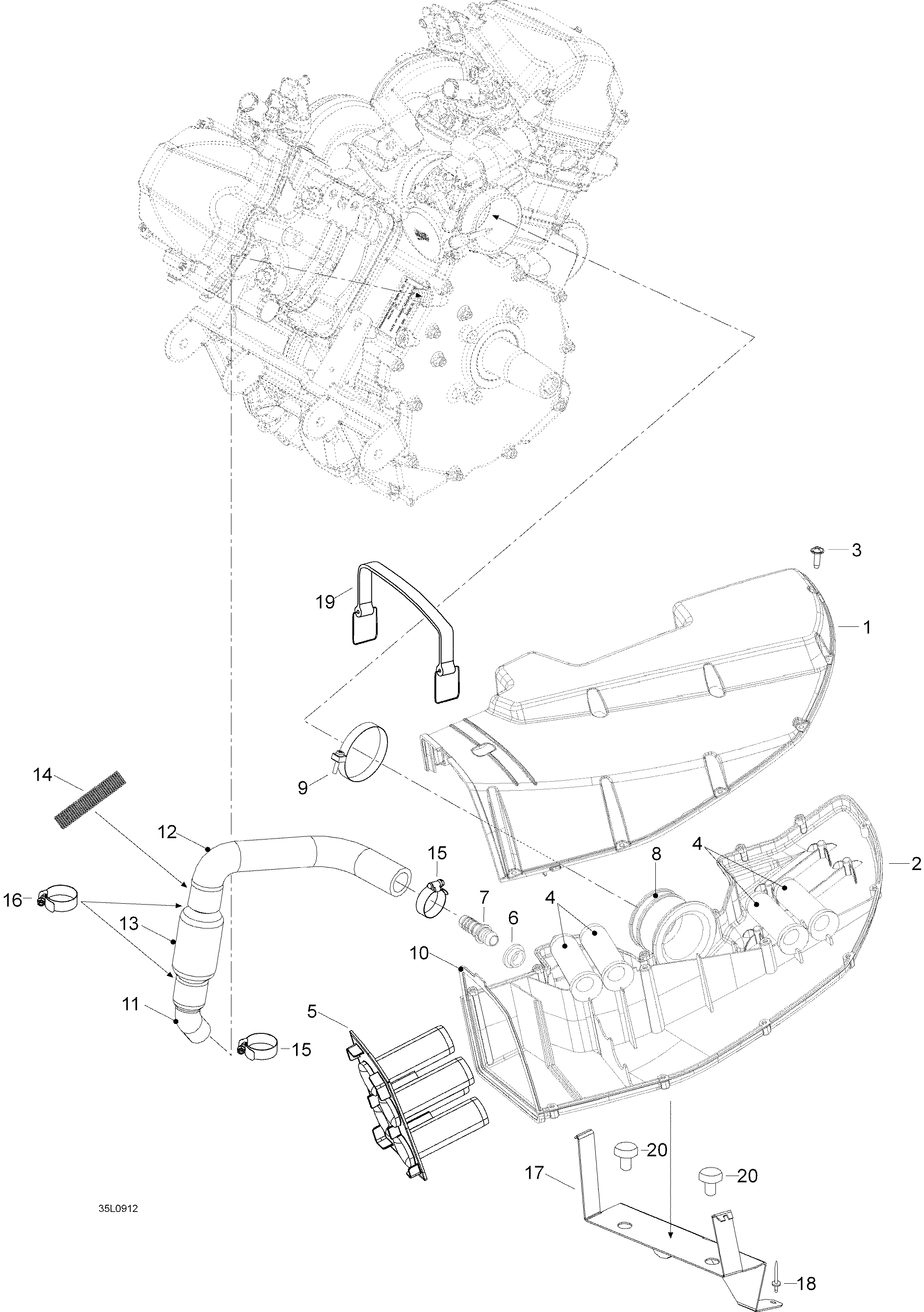

02- Air Intake System для BRP Lynx YETI Pro Army V-800 - 2009
-
№АртикулНазвание
-
-605154573 Air intake ass'y. Includes 1 to 8Air intake ass'y. Includes 1 to 8
-
1605153098 CoverCover
-
2605153099 BottomBottom
-
340905 Plastofast-screw M6 x 16Plastofast-screw M6 x 16
-
45444445 PipePipe
-
5605253649 Pipe platePipe plate
-
6570023000 GrommetGrommet
-
7605453846 GrommetGrommet
-
8605353177 Intake adaptorIntake adaptor
-
9508000346 ClampClamp
-
10605353517 FilterFilter
-
11605354128 HoseHose
-
12605354127 HoseHose
-
13605354126 Ventilation ChamberVentilation Chamber
-
1428036 TubingTubing
-
15605627001 ClampClamp
-
16605627004 ClampClamp
-
17605354778 Bracket, air intakeBracket, air intake
-
1836108 RivetRivet
-
19515175955 Bracket, batteryBracket, battery
-
20570044700 Rubber stopperRubber stopper
