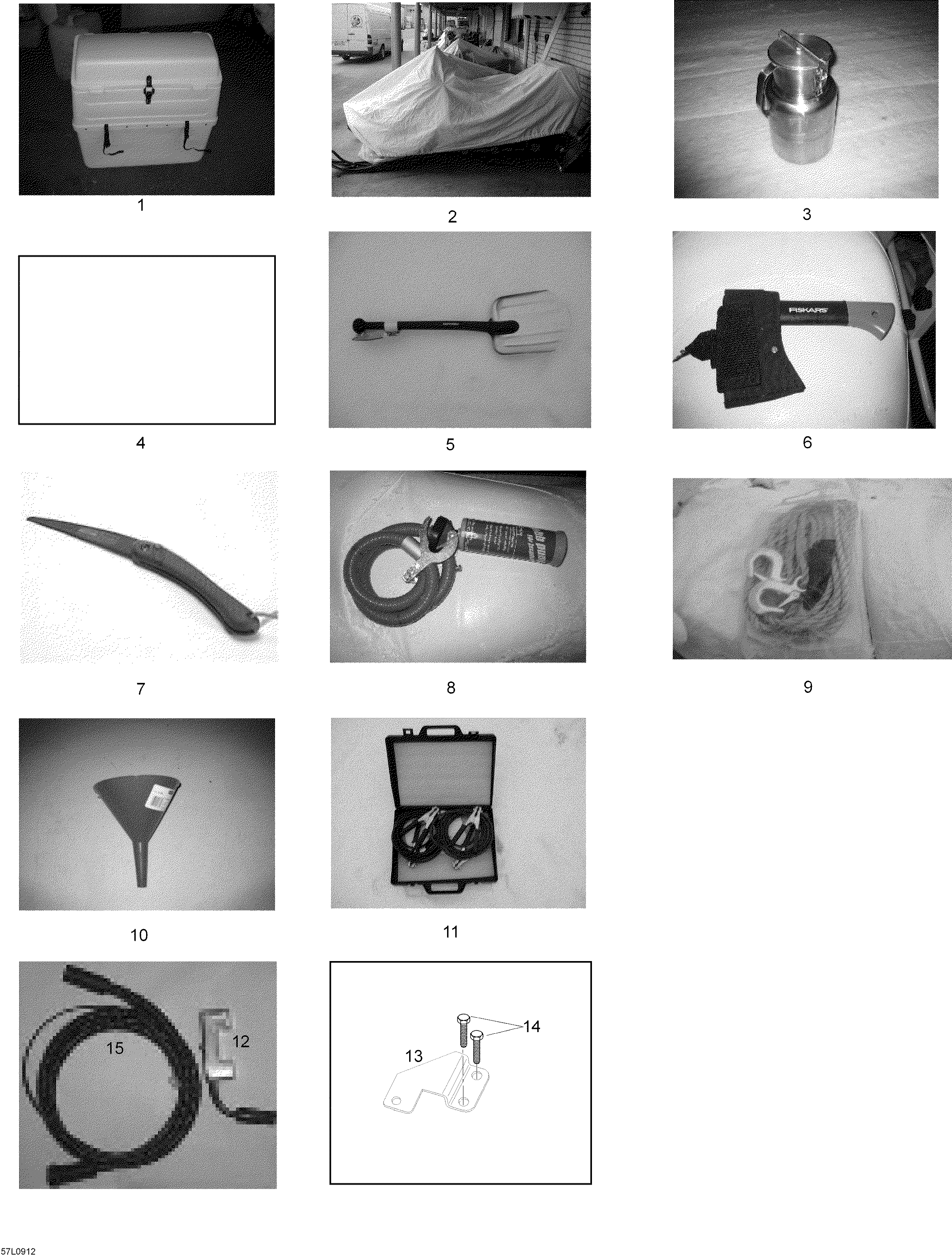

07- Option для BRP Lynx YETI Pro Army V-800 - 2009
-
№АртикулНазвание
-
121151 Goods boxGoods box
-
221149 CoverCover
-
3605355200 Water resorvoirWater resorvoir
-
4605354950 Map caseMap case
-
521153 ShowelShowel
-
621154 AxeAxe
-
721157 SawSaw
-
821155 Fuel pump, mecanicalFuel pump, mecanical
-
921156 RopeRope
-
10605621002 FunnelFunnel
-
11605621003 Starter cable ass'yStarter cable ass'y
-
12605354488 Engine heater ass'yEngine heater ass'y
-
13605355445 Bracket, block heaterBracket, block heater
-
1440040 Hex. Screw M10 x 25Hex. Screw M10 x 25
-
15605351647 Wiring ass'y, block heaterWiring ass'y, block heater
